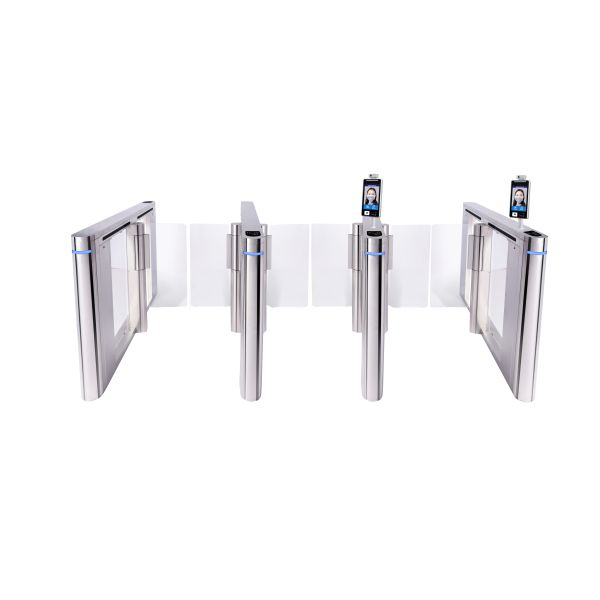

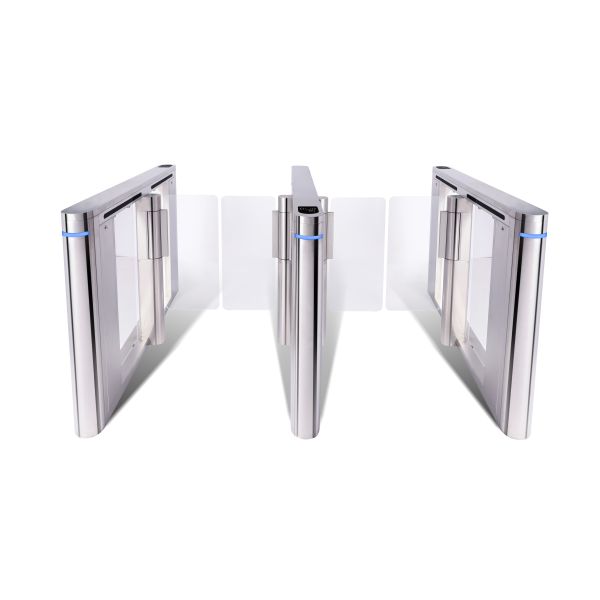

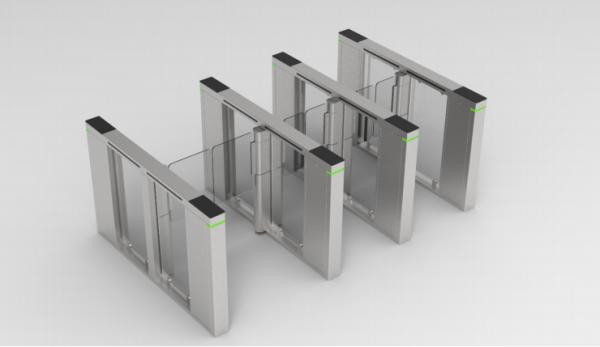

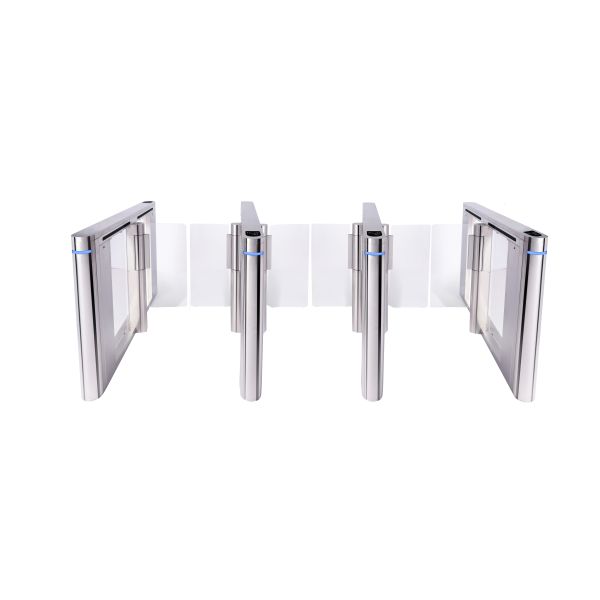

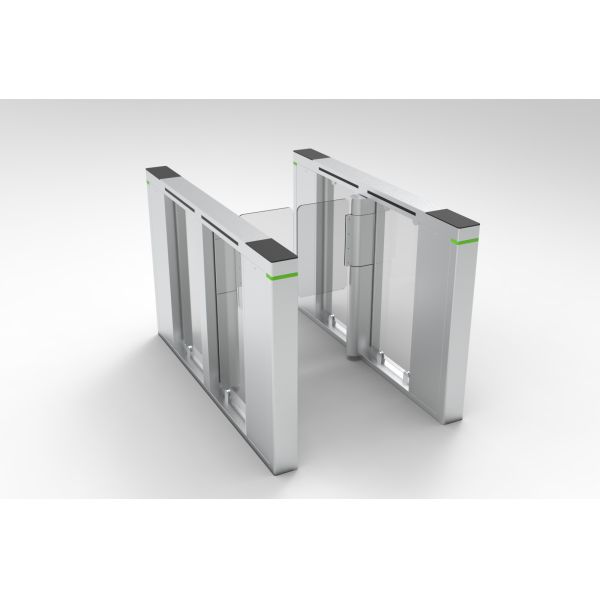

SUS304 Fast Speed Gate Turnstile Access Control Anti Pinch Floor Mounted
SUS304 Fast Speed Gate Turnstile Access Control Anti Pinch Floor Mounted
SUS304 Fast Speed Gate Turnstile Access Control Anti Pinch Floor Mounted
SUS304 Fast Speed Gate Turnstile Access Control Anti Pinch Floor Mounted
SUS304 Fast Speed Gate Turnstile Access Control Anti Pinch Floor Mounted
SUS304 Fast Speed Gate Turnstile Access Control Anti Pinch Floor Mounted
SUS304 Fast Speed Gate Turnstile Access Control Anti Pinch Floor Mounted
SUS304 Fast Speed Gate Turnstile Access Control Anti Pinch Floor Mounted
SUS304 Fast Speed Gate Turnstile Access Control Anti Pinch Floor Mounted
SUS304 Fast Speed Gate Turnstile Access Control Anti Pinch Floor Mounted
SUS304 Fast Speed Gate Turnstile Access Control Anti Pinch Floor Mounted
SUS304 Fast Speed Gate Turnstile Access Control Anti Pinch Floor Mounted
SUS304 Fast Speed Gate Turnstile Access Control Anti Pinch Floor Mounted
SUS304 Fast Speed Gate Turnstile Access Control Anti Pinch Floor Mounted
Specifications
Brand Name :
TAIWEI
Model Number :
TW-DC Series
Certification :
CE/ISO9001/ISO14001,CE RoHS FCC,ISO,CE
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
50000Sets / Month
Delivery Time :
7-10 working days
Packaging Details :
Carton + Wooden Box
Weight :
Approximately 80kg
Usageenvironment :
Indoor and Outdoor
Powersupply :
AC 220V/110V, 50/60Hz
Safety features :
Anti-pinch, Emergency Stop
Operationmode :
Automatic
Gatetype :
Speed Gate
Operatingtemperature :
-20°C to 60°C
Dimensions :
1200mm (H) x 300mm (W) x 1000mm (L)
Material :
Stainless Steel
Controlsystem :
Infrared Sensor and RFID
Application :
Access Control for Offices, Airports, Metro Stations
Closingspeed :
1-2 seconds
Opening speed :
1-2 seconds
Installation type :
Floor Mounted
Product name :
Speed Gate Turnstile
Power supply :
AC220V,220V 60Hz,110~240 V(AC),AC220V/110V,AC110/AC220+/-10%
Warranty :
12 months,1 year,One Year,3years,1year free guaranty service
Color :
Optional,Customized Color,Metallic Silver
Communication :
TCP IP,RS485 TCP/IP,RS232/485
Communication interface :
RS485,TCP/IP/R485,RS485/Relay Signal
Type :
single core & double core,Fully Automatic speed lane turnstile,Fully Automatic,speed gates manual gate arm barrier
Dimension :
1200*280*980(mm),1400 * 280 * 980 (mm),1400 X300 X1000mm,L1200 x W280 x H980mm,1400*250*991mm
Housing material :
304 Stainless Steel,SUS304
Motor :
Servo drive,DC Brushless motor,0.5NM/24V
Size :
1400*180*960mm,L 1400*W200*H1000mm,1400x115x1050mm
Working environment :
Shed,Indoors or outdoors with shed,Tent Over) -10 ~70
Working temperature :
-35℃ ~ 60℃,-30°C~+70°C,-15~75 °C
Arm length :
500-900 mm,<=435mm,550mm
Function :
baffle,barcode scanner,rfid card,RFID Reading,fingerprint support
Description

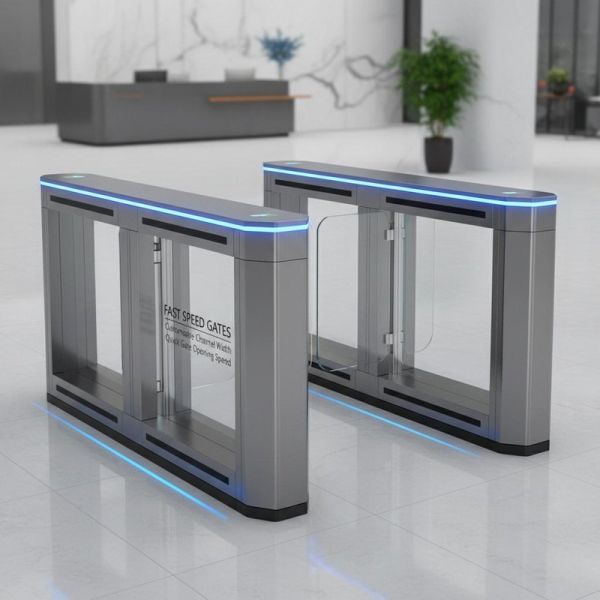

Fast Speed Gates with Customizable Channel Width and Rapid Opening Speed
Product Overview
High-performance speed gates designed for efficient pedestrian flow control with customizable channel widths and rapid gate opening speeds suitable for various commercial and industrial environments.
Model HPT-YD6001-D (Single Core) / HPT-YD6001-S (Dual Core)
Dimensions Single Core: 1400*160 (241)*980mm
Dual Core: 1400*160 (322)*980mm
Material Stainless Steel SUS304
Channel Width 600-1000mm (Customizable)
Technical Specifications
Drive Voltage 24V DC
Backup Power Supply Super Capacitor (12V/3A)
Swing Arm Material 8mm Thick Acrylic
Passage Direction Unidirectional / Bidirectional
Induction Method Infrared Beam
Infrared Sensor J-Tek, 5 Pairs
Gate Opening Speed 0.2s to 0.5s (Adjustable)
Passage Speed 30-35 Persons/Minute (Normally Closed Mode)
Operating Environment -20℃ to 70℃
Working Voltage AC220V+10%
Construction & Movement
Top Cover Thickness 1.2mm
Body Thickness 1.0mm
Movement System Brushless Speed Gate Movement with Encoder
Motor 24V DC Motor
Cable Entry Holes 4 Knockout Holes
Features stable operation and low noise performance for enhanced user experience.
Access Control & Safety Features
Communication Interfaces:
Dry Contact Switch, Relay, Fire Protection Interface
Supported Access Modes:
  • Card Swiping
  • Face Recognition
  • QR Code
  • Fingerprint
Safety Functions:
  • Fire Linkage
  • Anti-Pinch
  • Anti-Collision
  • Anti-Tailgating
  • Anti-Reverse Intrusion
Packaging
5-Layer 5mm Double-Wall Carton for secure transportation and storage.
