Specifications
Place of Origin :
Guangdong, China
Brand Name :
BOJKE
MOQ :
1
Price :
$488
Model Number :
BDT-10
Certification :
CE
Payment Terms :
T/T
Supply Ability :
150k
Delivery Time :
5~8 work days
Packaging Details :
kraft paper box with carton box;
Series :
Through-Beam Edge Sensor
Description :
Edge width and gap measurement
Theory :
Light Axis Alignment
Output :
NPN and Analog output
Response Time :
500μs
Power supply :
DC 5V
Description

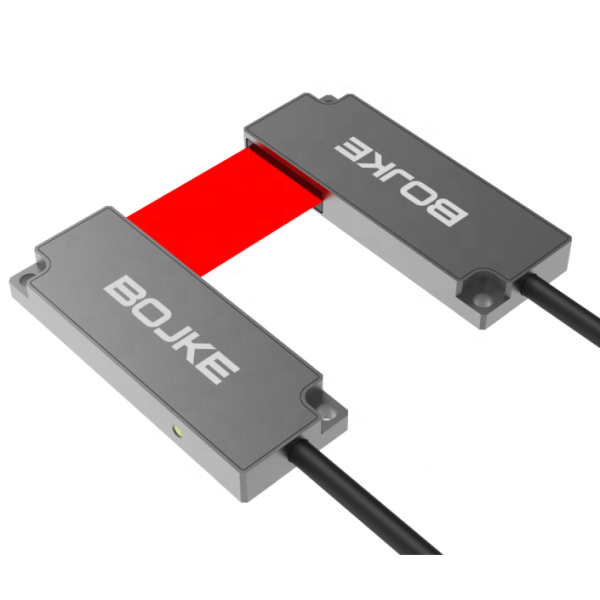

Optical Through-Beam Edge Sensor With Light Axis Alignment Sensing Range 2~10mm

Product Description
Product Name Edge gap diameter measure ment
Material Aluminum alloy
Function Light axis alignment function
Package Poly bag+kraft box
Sensing Range 2-10mm Optical Through-Beam Edge Sensor With Light Axis Alignment

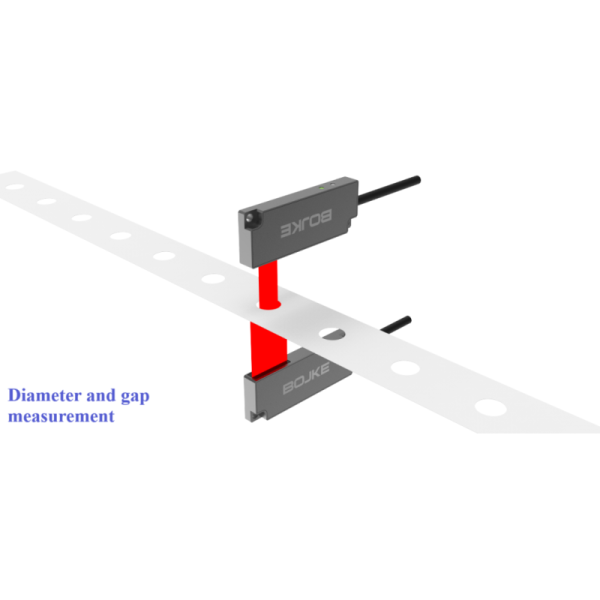

1.Suitable for edge measurement and width/gap measurement

2.Light reflective function for easy installation

3.Compact design for easy installation

4.Send the data of sheet edge positions to a controller to eliminate meandering.

Model: BDT-10
Measurement range and size: 24mm
Detection distance(from workpiece): 0～40mm
Light source: wavelength Red laser·650nm
Max output power 7mw
Light spot size: 3.5x25mm
Linear accuracy ±200μm
Repeat accuracy ±30μm
Response time 500μs
Temperature drift ±0.02%F.S./℃
RGB Indicator light Slow flashing green light (2Hz): normal operating state
Long green light on: program restart loading in progress
Light off: The light path is completely blocked or in an abnormal state
Analog output current:4～20mA (Input impedance of sampling terminal≤250Ω)
Supply power DC 12～24V ±10%
Consumption current less than 100mA(at DC 24V)
Connection type M8 4 pin connector
protection degree IP67
Operation temperature/humidity -10 ～ + 50℃/35～85%RH(No condensation, no freezing)
Storage temperature/humidity -20～+60℃/35～85%RH(No condensation, no freezing)
Ambient Illuminance Sunlight:< 10000lux. incandescent lamp:< 3000lux
Vibration resistance 10～55Hz double amplitude 1.5mm
X,Y,Z direcitions each 2 hourse
Shock resistance about 50G(500 m/s2)
X,Y,Z directions 3 times
Protection circuit Reverse connection protection,overcurrent protection
Weight 75g
Material Housing material:Aluminium alloy lens:glass
