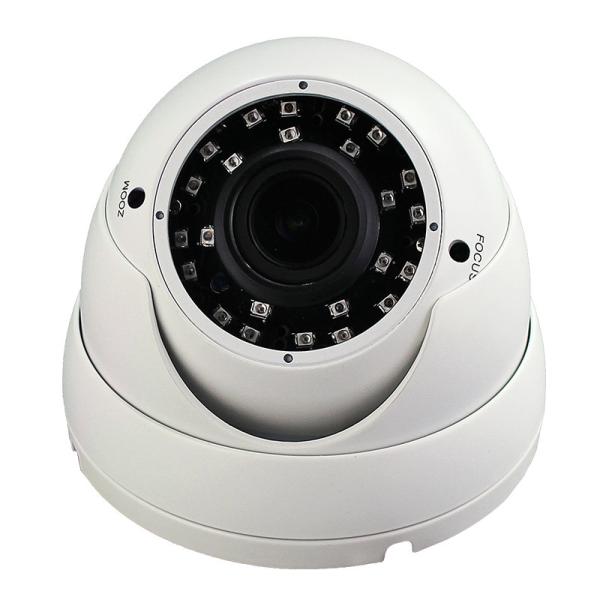

Dome High Defination 1080P Dome Security Camera 2.8-12mm Varifocal Lens Long Range IR Night Vision IP66 Outdoor Rated
Dome High Defination 1080P Dome Security Camera 2.8-12mm Varifocal Lens Long Range IR Night Vision IP66 Outdoor Rated
Dome High Defination 1080P Dome Security Camera 2.8-12mm Varifocal Lens Long Range IR Night Vision IP66 Outdoor Rated
Dome High Defination 1080P Dome Security Camera 2.8-12mm Varifocal Lens Long Range IR Night Vision IP66 Outdoor Rated
Dome High Defination 1080P Dome Security Camera 2.8-12mm Varifocal Lens Long Range IR Night Vision IP66 Outdoor Rated
Dome High Defination 1080P Dome Security Camera 2.8-12mm Varifocal Lens Long Range IR Night Vision IP66 Outdoor Rated
Dome High Defination 1080P Dome Security Camera 2.8-12mm Varifocal Lens Long Range IR Night Vision IP66 Outdoor Rated
Dome High Defination 1080P Dome Security Camera 2.8-12mm Varifocal Lens Long Range IR Night Vision IP66 Outdoor Rated
Specifications
Brand Name :
BJ
Model Number :
BJ-IPH3292
Place of Origin :
China
Supply Ability :
1000000
Delivery Time :
15
Packaging Details :
Carton
Material :
Plastic
Resolution :
1920*1080,Real-time image Max resolution can reach 2.0M(1920×1080), HD 1080P output
Sensor :
1/2.8" CMOS Sensor,M12 Mount 3MP Lens: 2.8-12mm
Light board :
24 pieces SMD LED,Illuminate Distance 30m
Image Frame Rate :
Max. NTSC 30fps (1920*1080),PAL 25fps(1920*1080)
Mode :
Low illumination,0.1Lux @ (F1.2,AGC ON),0 LUX with IR
Support :
Support IR-CUT filter switch to achieve day and night monitoring
Payment Terms :
T/T
Description
Feature:
  • 1) Embedded Linux System
    2) H.264 Video Compression,JPEG Capture,Audio G.711,
    3) Resolution: 1920*1080,Real-time image Max resolution can reach 2.0M(1920×1080), HD 1080P output
    4) 1/2.8" CMOS Sensor,M12 Mount 3MP Lens: 2.8-12mm
    5) 24 pieces SMD LED,Illuminate Distance 30m
    6) Image Frame Rate:Max. NTSC 30fps (1920*1080),PAL 25fps(1920*1080)
    7) Low illumination,0.1Lux @ (F1.2,AGC ON),0 LUX with IR
    8) Support IR-CUT filter switch to achieve day and night monitoring
  • -10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )
Model No. BJ-IPH3294 BJ-IPH3292 BJ-IPH32913
Camera Type Vandalproof Metal Dome IP Camera
System Embedded RTOS design
Camera Effective Pixels 4.0 Mega Pixels 2.0 Megapixels 1.3 Mega Pixels
Main stream:2592*1520;2048*1536; Main stream:1920*1080;1280*720 Main stream:1280*960;
Sub stream:704*576 Sub stream:704*576 Sub stream:704*576
Frames Rates
PAL:20fps(2592*1520)/
25fps(2048*1536)

 PAL:25fps(1920*1080)/(1280*720) PAL:25fps(1280*960)
NTSC:20fps(2592*1520)/
30fps(2048*1536)		 NTSC:30fps(1920*1080)/(1280*720) NTSC:30fps(1280*960)
Image Sensor 1/3" OV4689 CMOS Sensor 1/2.8" SONY IMX322 CMOS Sensor 1/3" APTINA 0130 CMOS Sensor
4 Megapixel resolution
(2688H*1520V)		 2.13 megapixel resolution (1945H*1097V) 1.3 megapixel resolution (1305H*977V)
DSP Dual core 32-bit DSP Dual core 32-bit DSP Dual core 32-bit DSP
(HI3516D) (Hi3516C) (Hi3518C)
Min. Illumination Color 0.001Lux@F1.2 Color 0.01Lux@F1.2 Color 0.01Lux@F1.2
B/W 0.0001 Lux@F1.2 B/W 0.001 Lux@F1.2 B/W 0.01 Lux@F1.2
Adjust Parameters DWDR,BLC,DNR,AE,AGC,D&N,Mirror,Flip,etc.
Video Compression H.265 Main profile H.264 Main profile H.264 Main profile
Stream support dual stream,AVI format support dual stream,AVI format support dual stream,AVI format
Bit Rate support 0.1M ~8Mpbs bit rate adjustable support 0.1M ~8Mpbs bit rate adjustable support 0.1M ~8Mpbs bit rate adjustable
Frame Rates support 1~30fps adjust support 1~30fps adjust support 1~30fps adjust
Audio Input and output 1ch input( micphone),1ch output( Speaker&micphone) Optional
Compression G.711 compression,support two-way audio intercom,support audio and video synchronized output
Alarm Types Motion Detection, Video Blind , Video Loss
Network WEB Browser Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.)
Smart Phone mobile remote Monitoring (iPhone,Android,....)
CMS Software Uniform CMS Software(multiple devices management system)
Cloud P2P www.enster.com,MYEYE platform and other program,Offer SDK
Network 1 * RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP
ONVIF Support (ONVIF 2.4)
POE Support(optional)
WIFI N/A
General Language 20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish
IR Cut Filter Set of double light switch IR-CUT filter
Lens Mount Varifocal Lens 2.8-12mm
Infrared Luminary 24 PCS SMD IR LED
Infrared Wavelength 850nm
Illuminate Distance 30m
Waterproof Criterion IP 66
I/O Connector 1*DC Connector ,1* RJ45(10/100M Network)
Supplied Voltage DC12V/PoE(802.3af/820.3at)
Power Consumption IR On: 600mA max., IR Off: Less than 200mA
Working Environment -10°C~+60°C, 10%~90% ( Built in Heater being optional added for enviroment lower than -20° )
Weight 0.7kg
