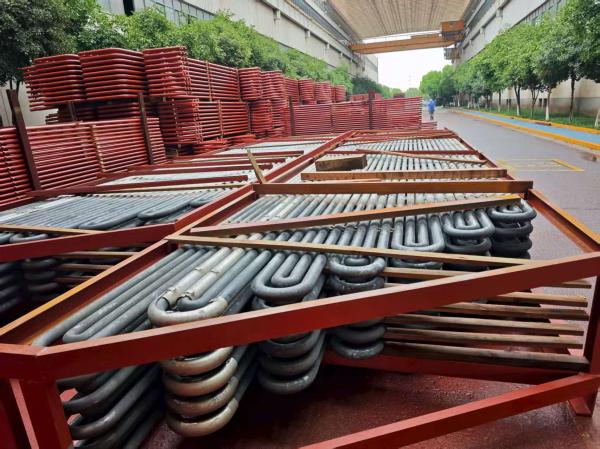

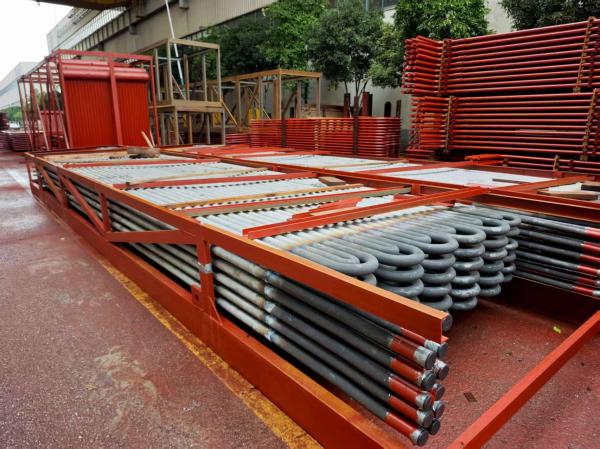

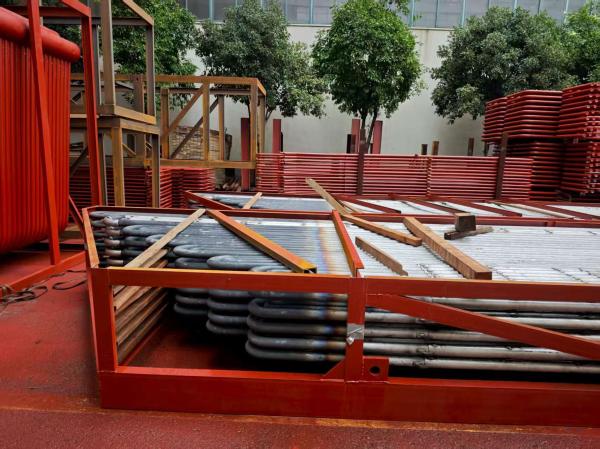

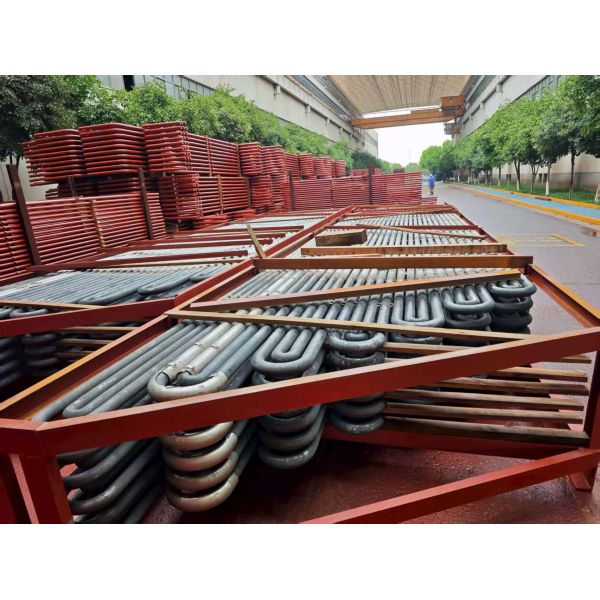

Custom High Pressure Serpentine Tube for CFB Boiler Systems
Custom High Pressure Serpentine Tube for CFB Boiler Systems
Custom High Pressure Serpentine Tube for CFB Boiler Systems
Custom High Pressure Serpentine Tube for CFB Boiler Systems
Custom High Pressure Serpentine Tube for CFB Boiler Systems
Custom High Pressure Serpentine Tube for CFB Boiler Systems
Custom High Pressure Serpentine Tube for CFB Boiler Systems
Custom High Pressure Serpentine Tube for CFB Boiler Systems
Specifications
Brand Name :
HDT
Model Number :
Serpentine Tube
Certification :
ASME, TUV, SGS, ABS, PED, ISO9001, Grade A
Place of Origin :
China(Mainland)
MOQ :
500 tons
Price :
800 - 9000 USD / ton
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
About 1000 ton / month
Delivery Time :
60-75days
Packaging Details :
seaworthy packing for exporting
Material :
Stainless steel, carbon steel, alloy steel
Certificate :
ASME, TUV, SGS, CE, GRADE A, ISO9001
Shape :
U Bend , Straight ,Coil, Snake Tube
Application :
Industrial/Power Station
Temperature Range :
Up to 1000°F
Pressure Range :
Up to 100 bar
Standard :
ASME, EN, ISO
Port :
Shanghai；Zhang jiagang
Description

Customized Design Serpentine Tube For High Pressure Operation In CFB Boiler System

Product Description

Serpentine tube structures typically include components like economizers, superheaters, and reheaters, along with connecting pipes, spacer pipes, and the like.
Economizers consist of economizer serpentine tubes and economizer suspension tubes.
The superheater system mainly includes: horizontal low-temperature superheaters (upper, middle, lower sections), vertical low-temperature superheaters, separator screens, separator connecting pipes, fluid-cooled clamp pipes, fluid-cooled spacer pipes, rear screen superheaters, and final-stage superheaters.
The reheater system includes: horizontal low-temperature reheaters (upper, middle, lower sections), vertical low-temperature reheaters, reheater cross tubes, rear screen reheaters, and final-stage reheaters.

Custom High Pressure Serpentine Tube for CFB Boiler Systems

Features

  • Product Name: Superheater And Reheater
  • Service Life: Long Service Life
  • Design: Customized
  • Maintenance: Low Maintenance
  • Pressure: High Pressure
  • Safety: High Safety
  • Key Features:
    • Designed for CFB Boiler
    • Superheater Coils for high temperature and pressure operation
    • Reheater Coils for additional heating of steam


Details

All the raw materials will be firstly made pipeline cutting.
It is consisted of a series of bare oil(carbon steel,alloy steel,or durable heat steel) and header and other auxiliaries. TubesΦ32,38,42 and so on,also as the request.

Setting Information
process welding
structure horizontal or vertical
material carbon steel, alloy steel
tubes φ32, 38, 42, etc.
size customized
brand HTEG
Warranty 18 months



Differences

Type Advantages Disadvantages Supporting method
Pendant-type 1.Firm structural support

1. Flow blockage by condensed steam
2. Needs slow restart to purge the water that accumulates in the bottom.

 supported from above
Inverted-type 1.Proper drainage of the condensed steam 1. Lack the structural rigidity, especially in high speed gas flow Supported from below
Horizontal -type

1. Proper drainage
2. Good structural rigidity.

 1. They do not view the flam directly so they are mainly from the convective type Usually supported in the vertical gas ducts parallel to the main furnace.


Custom High Pressure Serpentine Tube for CFB Boiler Systems

Applications

Superheaters and reheaters are built for high-pressure use and can be customized to fit specific needs. They boost the temperature of steam from boilers, making turbine heat exchange more efficient.
The superheater coils are made from stainless steel, carbon steel, or alloy steel—tough materials that resist wear, handle harsh conditions, and last a long time.
They work well in power plants using coal, biomass, or gas. With a long service life, they cut down on maintenance needs. They’re especially useful for plants needing high-pressure steam, providing a reliable way to up steam temperature and boost overall system efficiency.
These components fit a range of scenarios: perfect for high-pressure steam power plants (coal, biomass, or gas-fired), and their customizability means they work across many applications. Durable and efficient, they’re key in power generation systems.


Packing and Shipping

Product Packaging:
The Superheater And Reheater product will be carefully packaged to ensure safety during transportation. It will be wrapped in protective material and placed in a sturdy cardboard box with ample padding to prevent any damage during shipping.

Shipping:
The Superheater And Reheater product will be shipped via a reputable courier service to ensure timely and safe delivery. Delivery times may vary depending on the destination, but typically range from 3-7 business days. Customers will receive a tracking number once the product has been shipped so they can monitor its progress and estimated delivery date.


Company Introduction

Hua Dong Energy Technology Started to Produce Serpentine Tube Since 1985,Up to now already supply more than 300,000 tons Steel Serpentine Tube to over 30 countries.

Hua Dong Energy Technology deals with Austenitic Stainless Steel, Nickel Alloy Steel (Hastelloy , Monel, Inconel, Incoloy ) seamless and welded pipe and tube already more than 35 years, every year sell more than 50000 tons of steel pipe and tube. Our client already cover more than 45 countries, Like Italy, UK, Gernmany, USA, Canada, Chile, Colombia, Saudi Arabia, Russia, Korea, Singapore, Austrial, Poland, France , ....And our group branch company and factory have been already approved by :ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001, ISO 14001.
