ASME SA210-C Medium Carbon Steel Seamless Boiler Steam Pipe 76.2x10.0mm for High Pressure Boiler Manifold
ASME SA210-C Medium Carbon Steel Seamless Boiler Steam Pipe 76.2x10.0mm for High Pressure Boiler Manifold
Specifications
Brand Name :
WNRLN
Model Number :
SA210-C-BSP
Place of Origin :
Jiangsu, China
Certification :
ISO 9001:2015, ASME
MOQ :
3 Metric Tons
Price :
USD 900-1400 / Metric Ton
Payment Terms :
T/T, L/C, D/P
Supply Ability :
1800 Metric Tons per Month
Delivery Time :
20-30 working days after order confirmation
Packaging Details :
Bevel end protectors, VCI wrap, steel-banded bundles, export-grade fumigated pallets
Material Grade :
SA210-C (ASME Medium Carbon Steel, 0.35% C max)
Outer Diameter :
76.2mm
Wall Thickness :
10.0mm
Length :
Fixed Length 6-12m
Tensile Strength :
≥ 485 MPa
Yield Strength :
≥ 275 MPa
Application :
High Pressure Boiler Manifold, Steam Distribution
Manufacturing Process :
Hot Finished Seamless
Testing :
Ultrasonic, Hydrostatic, Mechanical Test, Visual
Description

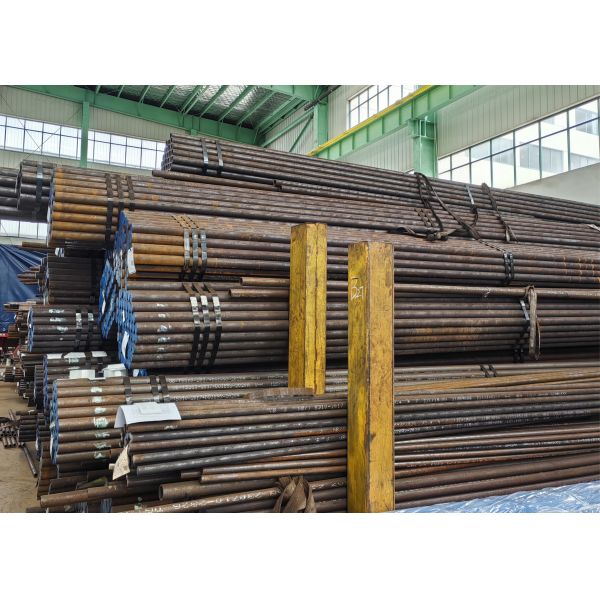

ASME SA210-C Medium Carbon Steel Boiler Steam Pipe

The SA210-C boiler steam pipe is a medium carbon manganese steel seamless tube manufactured to ASME SA-210/SA-210M Grade C. With higher carbon content than Grade A1, it provides enhanced tensile and yield strength for high-pressure boiler manifold and steam distribution piping where higher design stresses are permitted.

Key Features

  • SA210-C Grade Chemistry: Medium carbon (0.35% max) and higher manganese for improved hardenability and elevated strength compared to SA210-A1
  • Heavy Wall Capability: 10.0mm wall thickness handles high pressure steam at boiler operating pressures exceeding 100 bar
  • Hot Finished Seamless: Reliable through-wall properties with consistent grain structure for pressure boundary integrity
  • Manifold-Grade Quality: Suitable for drilling, machining, and welding of branch connections for boiler manifold fabrication
  • High Strength Design: 485 MPa minimum tensile strength allows reduced wall thickness or higher operating pressures in design calculations

Technical Specifications

StandardASME SA-210/SA-210M Grade C
ChemistryC: 0.35 max, Mn: 0.29-1.06, Si: 0.10 min, P: 0.035 max, S: 0.035 max
OD Range38.1mm - 127.0mm
WT Range4.0mm - 20.0mm
Tensile Strength≥ 485 MPa
Yield Strength≥ 275 MPa
Elongation≥ 30%

Applications

High-pressure boiler manifolds, steam distribution headers, boiler drum connecting piping, main steam lead piping in industrial power boilers, and high-temperature steam transport in combined heat and power (CHP) plants. Compatible with ASME B31.1 Power Piping design codes.
