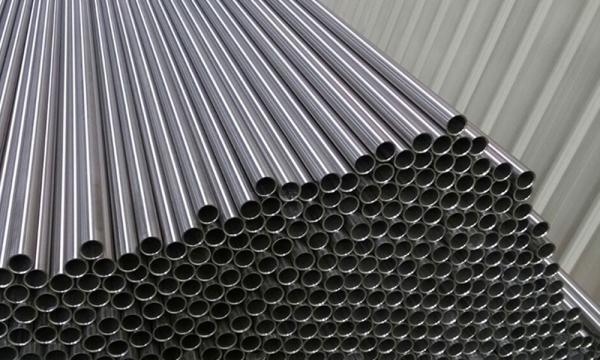

DIN 2391 ST52.4 EN 10305-1 Cold Drawn Steel Tube
DIN 2391 ST52.4 EN 10305-1 Cold Drawn Steel Tube
DIN 2391 ST52.4 EN 10305-1 Cold Drawn Steel Tube
DIN 2391 ST52.4 EN 10305-1 Cold Drawn Steel Tube
DIN 2391 ST52.4 EN 10305-1 Cold Drawn Steel Tube
DIN 2391 ST52.4 EN 10305-1 Cold Drawn Steel Tube
Specifications
Brand Name :
HDT
Model Number :
TP304L
Certification :
ASME/CE / ISO /TUV
Place of Origin :
China
MOQ :
5T
Price :
100 - 1000 USD / ton
Payment Terms :
L/C, T/T
Supply Ability :
10000 ton / month
Delivery Time :
30days
Packaging Details :
Seaworthy Package
STANDARD :
JIS, AiSi, ASTM, GB, DIN, EN
MATERIAL :
TP304L
SPECIFICATION :
ASTM A269 / A269M-15A 38.1X1.59MM Steel Boiler Tube/seamless boiler tubes/seamless steel pipe
Package :
Standard Seaworthy Package
Processing :
Bending, Welding, Decoiling, Punching, Cutting, Moulding
Shape :
Round
Description

Description

HDT deal with stainless steel seamless pipe and tube already more than 10 years, every year sell more than 80000 tons of stainless steel seamless pipe and tube. Our client already cover more than 45 countries. Our stainless steel seamless pipe and tube was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc. ANSI B16.10: B16.19 SCH 5S, SCH 10S, SCH 20, SCH 30, SCH 40S, SCH 60, SCH80S, XS, SCH 100, SCH 120, SCH160, XXS

DIN 2391 ST52.4 EN 10305-1 Cold Drawn Steel Tube

DIN 2391 ST52.4 EN 10305-1 Cold Drawn Steel Tube


DIN 2391 Seamless Precision Steel Tubes Mechanical Properties

Pipe types Steel grades Minimum resistance properties
+C +LC +SR +A +N
Rm [MPa] A% Rm [MPa] A% Rm [MPa] Re [MPa] A% Rm [MPa] A% Rm [MPa] Re [MPa] A%
Precise seamless steel pipes St35, St45, St52 According to DIN 2391 St 35 480 6 420 10 420 350 14 315 25 340- 470 235 25
St 45 580 5 520 8 520 375 12 390 21 440- 570 255 21
St 52 640 4 580 7 580 420 10 490 22 490- 630 355 22

DIN 2391 Seamless Precision Steel Tubes Chemical Composition

Grade Mfg. Process Chemical composition(%)
C Si Mn P S Ni Cr Mo Others
St30Si S 0.10Max 0.30Max 0.55Max 0.040Max 0.040Max - - - -
St30A1 S 0.10Max 0.05Max 0.55Max 0.040Max 0.040Max - - - Al deoxydized
St35 S 0.17Max 0.35Max 0.40Max 0.050Max 0.050Max - - - -
St45 S 0.21Max 0.35Max 0.40Max 0.050Max 0.050Max - - - -
St52 S 0.22Max 0.55Max 1.60Max 0.050Max 0.050Max - - - -

Specification

Standards DIN 2391-1 Cold Drawn Tube
DIN 2391-1 Cold Drawn Seamless Pipe Size 4 to 219mm W. T.: 0.5 to 20mm
DIN 2391-1 Cold Drawn Welded Pipe Size 5.0 mm – 1219.2 mm
DIN 2391-1 Cold Drawn EFW Pipe size 5.0 mm – 1219.2 mm
DIN 2391-1 Cold Drawn Tube Swg & Bwg 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
DIN 2391-1 Cold Drawn Pipe Schedule SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
DIN 2391-1 Cold Drawn Seamless Tube Size 3.35 mm OD To 101.6 mm OD
DIN 2391-1 Cold Drawn Welded Tube Size 6.35 mm OD To 152 mm OD
Swg & Bwg 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
DIN 2391-1 Cold Drawn Tube wall thickness 0.020" –0.220", (special wall thicknesses available)
Length Single Random, Double Random, Standard & Cut length Pipe & Tube
Finish Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
Form Round, Hydraulic, ‘U’ bent or Hollow,LSAW, Boiler, Straight Pipe, Clad Pipe, Rectangular, Square Pipe Etc
Type Welded, Seamless, ERW, EFW, Fabricated Pipe, ‘U’ bent or Hollow, Hydraulic, LSAW, Boiler, Straight Tube, Tube Coil, Round, Rectangular, Square Tube etc
End Plain End, Beveled End, Treaded Pipe & Tube
Application Oil Pipe & Tube, Gas Pipe & Tube, Fluid Pipe & Tube, Boiler Pipe & Tube, Heat exchanger Tube
Value Added Service Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc.

Application Industries

  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers

DIN 2391 ST52.4 EN 10305-1 Cold Drawn Steel Tube
