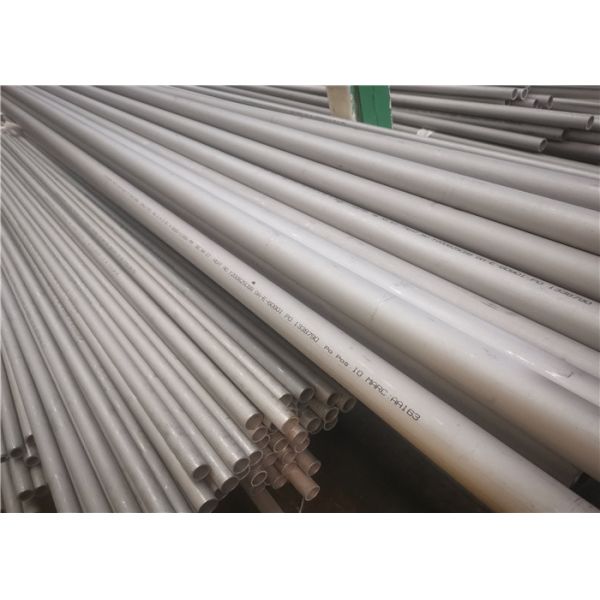

OD4mm 8K Surface 316l Stainless Steel Pipe Corrosion Resistance
OD4mm 8K Surface 316l Stainless Steel Pipe Corrosion Resistance
OD4mm 8K Surface 316l Stainless Steel Pipe Corrosion Resistance
OD4mm 8K Surface 316l Stainless Steel Pipe Corrosion Resistance
OD4mm 8K Surface 316l Stainless Steel Pipe Corrosion Resistance
OD4mm 8K Surface 316l Stainless Steel Pipe Corrosion Resistance
Specifications
Brand Name :
HDT
Model Number :
Seamless Stainless Tube
Certification :
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin :
China(Mainland)
MOQ :
1T
Price :
800 - 9000 USD / ton
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
About 10000 ton / month
Delivery Time :
35days
Packaging Details :
seaworthy packing for exporting
Standard :
ASTM A213 ; ASTM A269 ; ASTM A312 ; EN10216-5 , ect .
Ends :
Plain or Beveled
Application :
Boiler&Heat Exchanger, energy, petrochemical, mining, food, paper, gas and fluid industry
Types :
Stainless Steel Pipes
OD :
Outdiameter4mm -101.6mm
Thickness :
0.4mm-3.0mm
Description

304L/316L Stainless Steel Pipe 2b Seamless Steel Mirror Ba Round Tube 6K 8K Surface

Stainless steel tube for heat exchanger,evaporater,boiler,condenser,muffler,cooler

Specifications:
1) Diameters: 4 - 76.2mm
2) W.T.: 0.4 - 2.5mm
3) Grades: 316L/304/304L/310S,etc.

4) standard:GB/ISO/EN/ASTM/JIS,etc.

5) application range:widely use in the foodstuff,medical equipment,power,boiler,cooler,auto,condenser etc.

6) packing: inner packing:1 pc/plastic bag;outer packing:bundles in weaving bags or in plywooden case.

Chemical composition and mechanical properties of stainless steel coils
Grade Chemical Composition (%) Mechanieal Performece
C Si Mn P S Ni Cr Mo Hardness
201 ≤0.15 ≤1.00 5.5/7.5 ≤0.060 ≤0.030 3.5/5.5 16.0/18.0 - HB≤241,HRB≤100, HV≤240
304 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 8.0/11.0 18.00/20.00 - HB≤187,HRB≤90,HV≤200
316 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 10.00/14.00 16.0/18.0 2.00/3.00 HB≤187, HRB≤90 HV≤200
316L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 10.00/14.00 16.0/18.0 2.00/3.00 HB≤187, HRB≤90 HV≤200
410 ≤0.15 ≤1.00 ≤1.25 ≤0.060 ≤0.030 ≤0.060 11.5/13.5 - HB≤183, HRB≤88 HV≤200
430 ≤0.12 ≤1.00 ≤1.25 ≤0.040 ≤0.03 - 16.00/18.00 - HB≤183, HRB≤88 HV≤200
Commodity ASTM SUS201 202 301 304 304L 316 316L Hardware Austial Stainless Steel Sheet
Thickness 6mm-400mm
Width 1000mm, 1219mm, 1240mm, 1500mm, 1800mm, 2000mm, etc
Length 2000mm-6000mm or as customer request
Standard AISI, ASTM, EN, BS, GB, DIN, JIS, etc
Material ASTM SUS201 202 301 304 304L 316 316L Hardware Austial Stainless Steel Sheet
Surface 2B, BA, HL, 8K, No. 4, etc
Packaging Standard export sea-worthy packing
Technique Hot rolled / cold rolled
Delivery time 10-30 days
Supply ability 5000 tons/ month
Certification: ISO9001: 2008
Payment terms 30% TT as deposit and the balance should be paid by L/C or against copy of B/L
Applications Hot rolled Steel plate applies to construction field, ships building industry, petroleum and chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchanger, machinery and hardware fields.
Advantages Strong corrosion resistance and decorative effect;
Excellent and high quality control; competitive price;
Timely, reliable and efficient delivery;
Customer service.
Cheap, better, faster
Note We can produce other standard as the customers' requirement

The thick the deviation of admission( do not include the weld sew) in wall of the weld tube is for ruling the wall thick 10% of ±, but minimum admission deviation is the 0.02 mms of ±.
The weld takes care of of settle Chinese foot length as 3 ms~9 ms, general settle the Chinese foot with the 6 ms.

The weld takes care of of settle the Chinese foot length in usually length, its the deviation of admission is the 5 mms of ±.
Adopt partial the degree of flinch in a the tube of weldfor keeping the Chinese foot measurement should not very in 2.0 mms.
The machine function sees the table 5
table 5

Steel number Card number The heat handles
Make degree
 The anti- pulls the strength
MPa		 Accept defeat the strength
MPa		 Extension rate% Degree of hardnessHRB
0Cr19N19 304 ≥1010°C
Nasty and cold		 ≥520 ≥205 40 ≤90
00Cr19Ni11 304L " " ≥480 ≥175 40 ≤90
0Cr17Ni12M02 316 " " ≥520 ≥205 40 ≤90
0Cr17Ni14M02 316L " " ≥480 ≥175 40 ≤90
0Cr18Ni11Ti 321 ≥920°C
Nasty and cold		 ≥520 ≥205 40 ≤90

OD4mm 8K Surface 316l Stainless Steel Pipe Corrosion Resistance


OD4mm 8K Surface 316l Stainless Steel Pipe Corrosion Resistance
