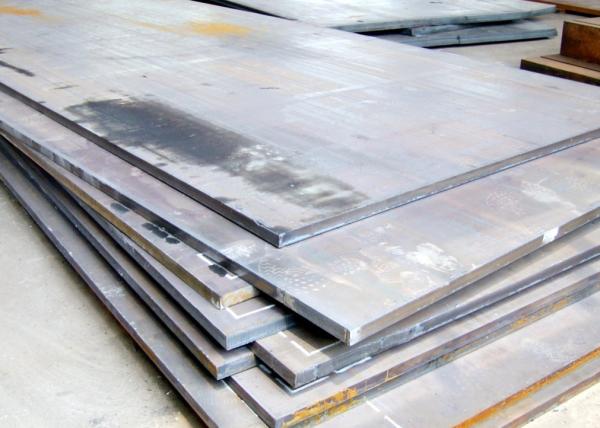

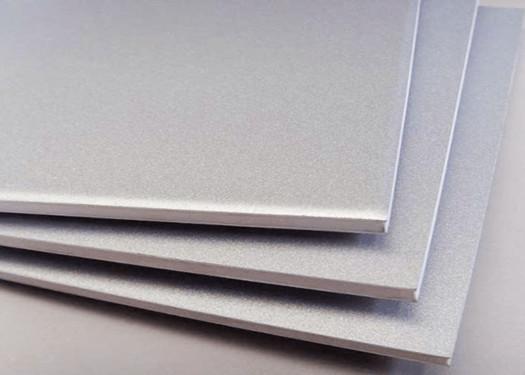

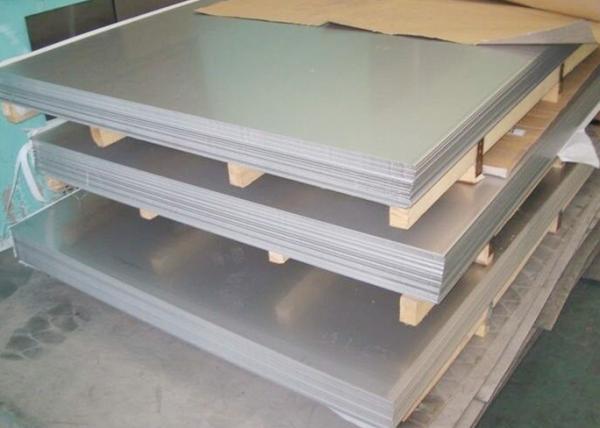

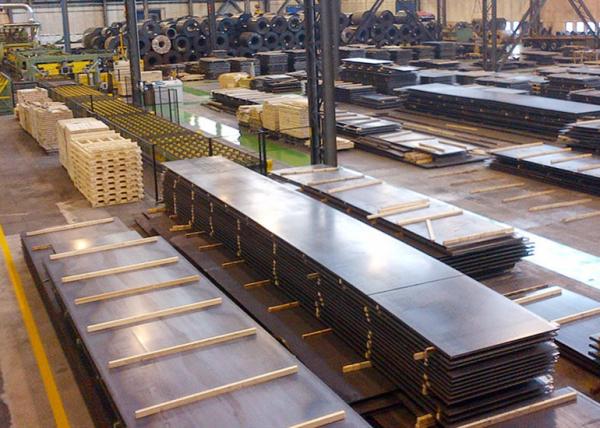

Hot Rolled 12cr1mov JIS 300mm Alloy Steel Sheet
Hot Rolled 12cr1mov JIS 300mm Alloy Steel Sheet
Hot Rolled 12cr1mov JIS 300mm Alloy Steel Sheet
Hot Rolled 12cr1mov JIS 300mm Alloy Steel Sheet
Hot Rolled 12cr1mov JIS 300mm Alloy Steel Sheet
Hot Rolled 12cr1mov JIS 300mm Alloy Steel Sheet
Hot Rolled 12cr1mov JIS 300mm Alloy Steel Sheet
Hot Rolled 12cr1mov JIS 300mm Alloy Steel Sheet
Specifications
Brand Name :
HDT
Certification :
ISO9001 , SGS , TUV , ASME , EN
Place of Origin :
JIANGSU, CHINA
MOQ :
5 tons
Delivery Time :
30 days
Product Name :
Alloy Steel Sheet Plate
Process Service :
Bending, WELDING, Cutting, PUNCHING
Application :
Ship
Standard :
AISI, ASTM, BS, DIN, GB, JIS, Other
Description

Hot Rolled 12cr1mov Alloy Steel Sheet Plate for Ship Plate

Products information

Standard GB, ASTM, ASIS, BS, JIS, DIN, EN,etc
Alloy Steel Plate 42CrMo,65Mn,40Cr,15Crmo,20Mn2, 40Mn2, 20MnSi, 20CrMo, 30CrMo, 35CrMo,10CrMoAL, 20CrMnMo, 12CrMoVNi, 30CrMnSiA,50Mn2V
Thickness 2-300mm(2-100mm usually used)
Width 1000-3000mm(1000-2200mm usually used)
Length 1000-12000mm, as your requirement
Surface clean, finishing, blasting and painting according to your requirement

Delivery

States

hot-rolled, controlled rolling, normalizing, annealing, tempering, quenching, N+T, Q+T,

and other delivery states are available as your requirement
Application The large gear, turbocharger transmission gear, pressure vessel gear, rear axle, high load connecting rod and spring clip are used for locomotive traction. It can also be used for deep drilling rod joint and fishing tool below 2000m, and can be used for mould of bending machine.

Hot Rolled 12cr1mov JIS 300mm Alloy Steel Sheet

12Cr1MoV

Chemical elements:

C:0.08~0.15
Si:0.17~0.37
Mn:0.40~0.70
Cr:0.90~1.20
Cu:≤0.030
Mo:0.25~0.35

V:0.15~0.30

Hot Rolled 12cr1mov JIS 300mm Alloy Steel Sheet
Mechanical property:
Tensile(σb/MPa):≥490
Yield point(σs/MPa):≥245
Elongation(δ5/%):≤22
Section shrinkage rate(ψ/%):≥50
Impact absorption work(Aku2/J):≥71
αkv (J/cm2):≥88(9)
Brinell hardness(100/3000HBS):≤179
