Specifications
machinery test report :
Provided
Steam temperature :
151/170/184
usage :
Industrial
Fuel :
Biomass/coal
Thermal efficiency :
85%-90%
structure :
Fire Tube
key selling points :
Easy To Operate
Brand Name :
AIX Boiler
core components :
Pressure Vessel
pressure :
Low Pressure
Warranty :
1 Year
Weight (KG) :
40000
Material :
Stainless Steel, Carbon Steel
Place of Origin :
Henan, China
Manufacturer :
30 Years History
Price :
$1,600-1,800 / set
type :
Natural Circulation
Fuel Type :
biomass/coal
MOQ :
1 set
Style :
VERTICAL
dimension(l*w*h) :
1300*1300*3200
Steam Capacity :
0.5t/h~2t/h
video outgoing-inspection :
Provided
Usage :
Industrial Machine
output :
Steam
Description
Fully Automatic 0.5 Ton Vertical Biomass Pellet Steam Boiler With PLC Control System Long Service Life
Fully Automatic 0.5 Ton Biomass Pellet Steam Boiler Vertical With PLC Control System
Products Description
Fully Automatic 0.5 Ton Biomass Pellet Steam Boiler Vertical With PLC Control System
The LSH vertical biomass boiler is an environmentally friendly thermal energy device that uses biomass fuels (such as wood chips, straw, rice husks, etc.). It features a compact structure, small footprint, and is suitable for spaces with limited space. Its core design utilizes a vertical configuration, ensuring complete combustion of fuel within the furnace. Heat is rapidly transferred through high-efficiency heat transfer surfaces to heat water or generate steam, achieving a thermal efficiency of over 80% and significantly reducing energy consumption.
This boiler is equipped with an intelligent control system that automatically adjusts combustion intensity, reducing pollutant emissions and meeting environmental standards. It is widely used in small factories, rural heating, food processing, and other fields, characterized by low operating costs and easy maintenance.
Product Parameters
Model
LSH0.3
LSH0.5
LSH0.7
LSH1
LSH1.5
LSH2
Rated evaporation
capacity(t/h)
0.3
0.5
0.7
1
1.5
2
Rated working pressure( Mpa )
0.7
0.7
0.7/1.0
0.7/1.0
0.7/1.0
0.7/1.0
Rated steam temperature(℃)
170
170
170/184
170/184
170/184
170/184
Feed water temperature (℃)
20
20
20
20
20
20
Themal efficiency (%)
>80
Fuel type
Coal,biomass pellet,wood sawdust,bamboo chip,wood block,straw,jute, palm shell
Fuel consumption (kg/h)
60
105
146
198
280
390
Max transportation weight(t)
2
3.5
4
4.5
5.5
6.5
Details Images
Fully Automatic 0.5 Ton Biomass Pellet Steam Boiler Vertical With PLC Control System
Fully Automatic 0.5 Ton Biomass Pellet Steam Boiler Vertical With PLC Control System

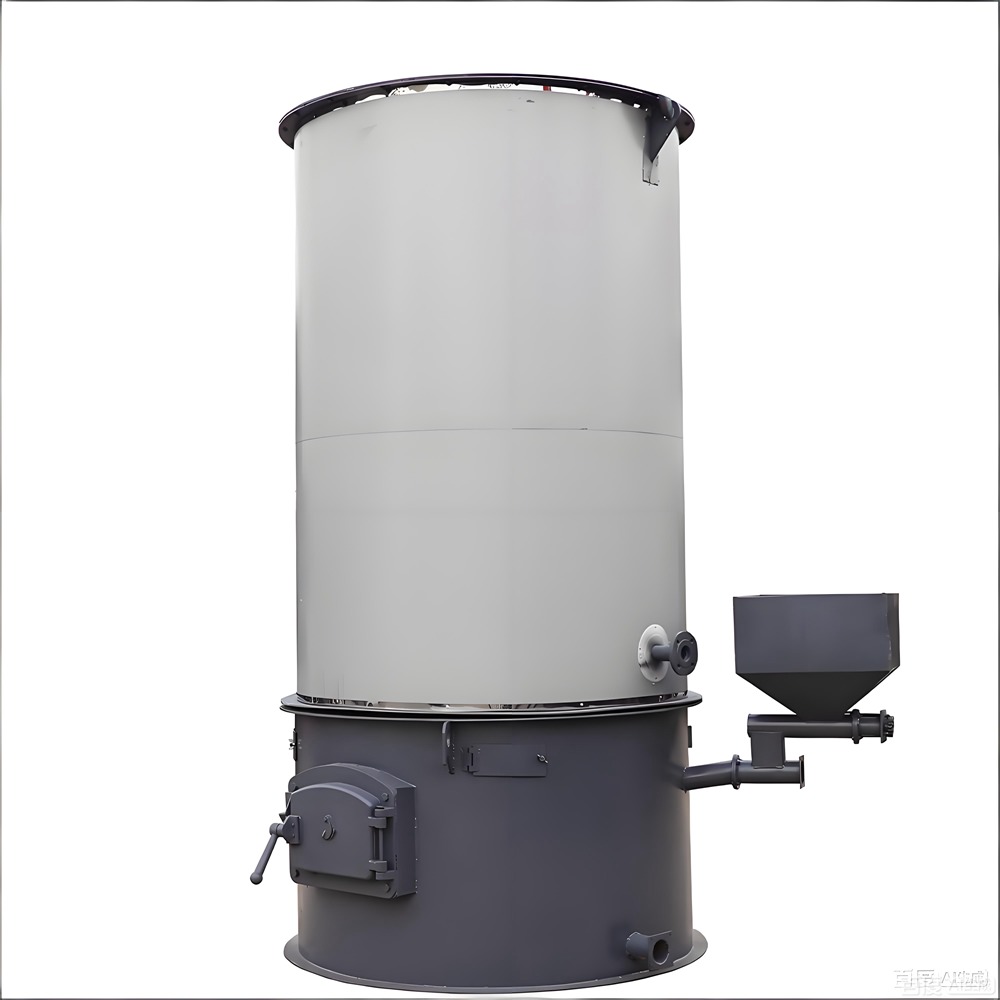

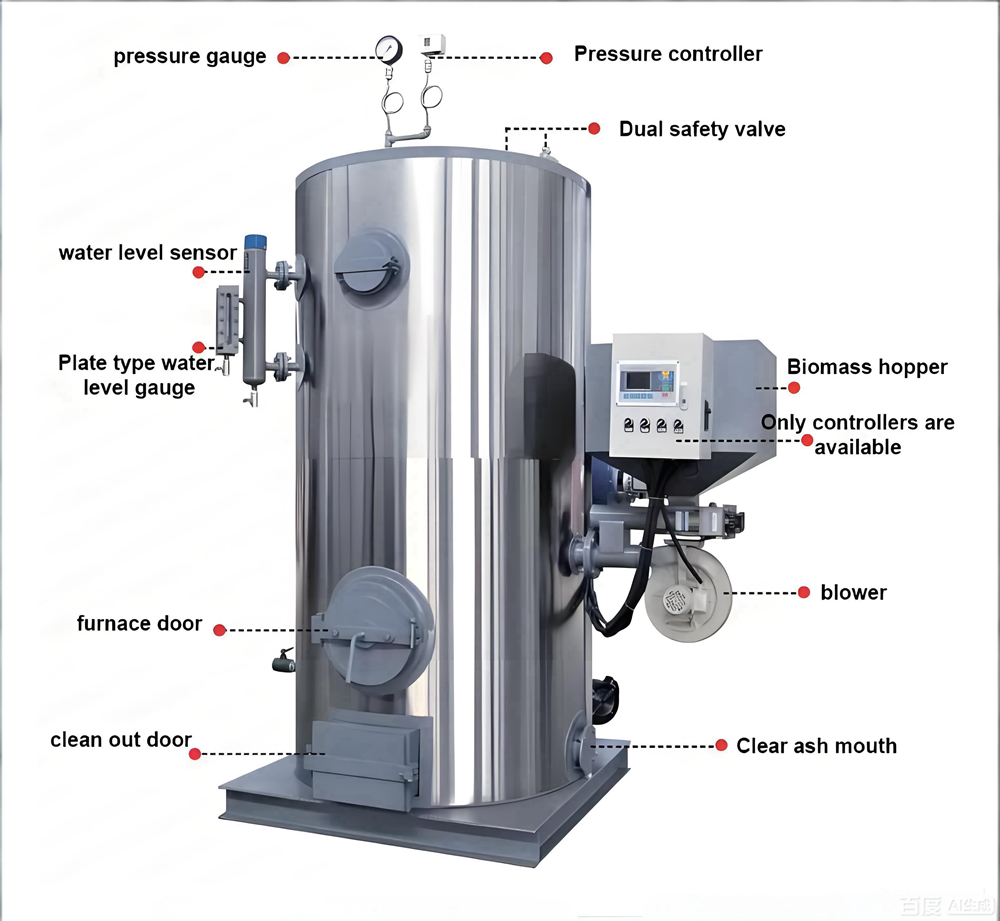

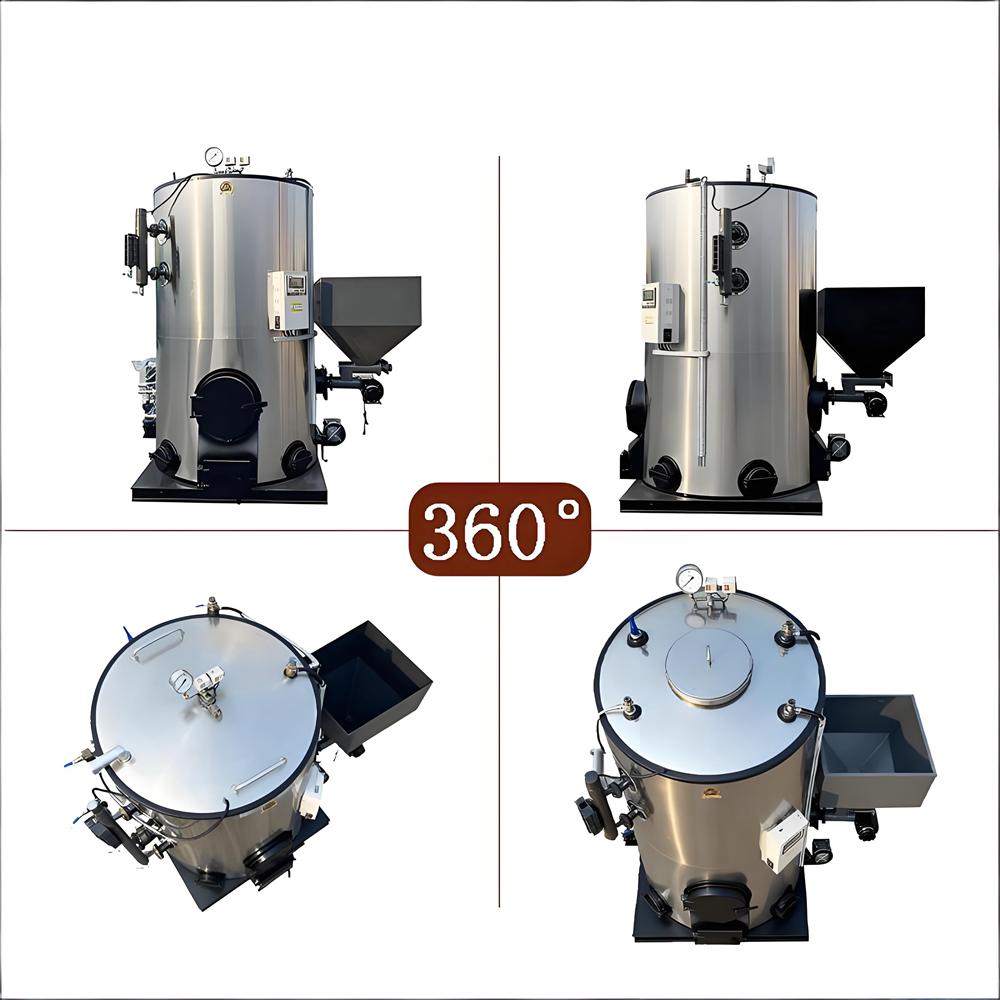

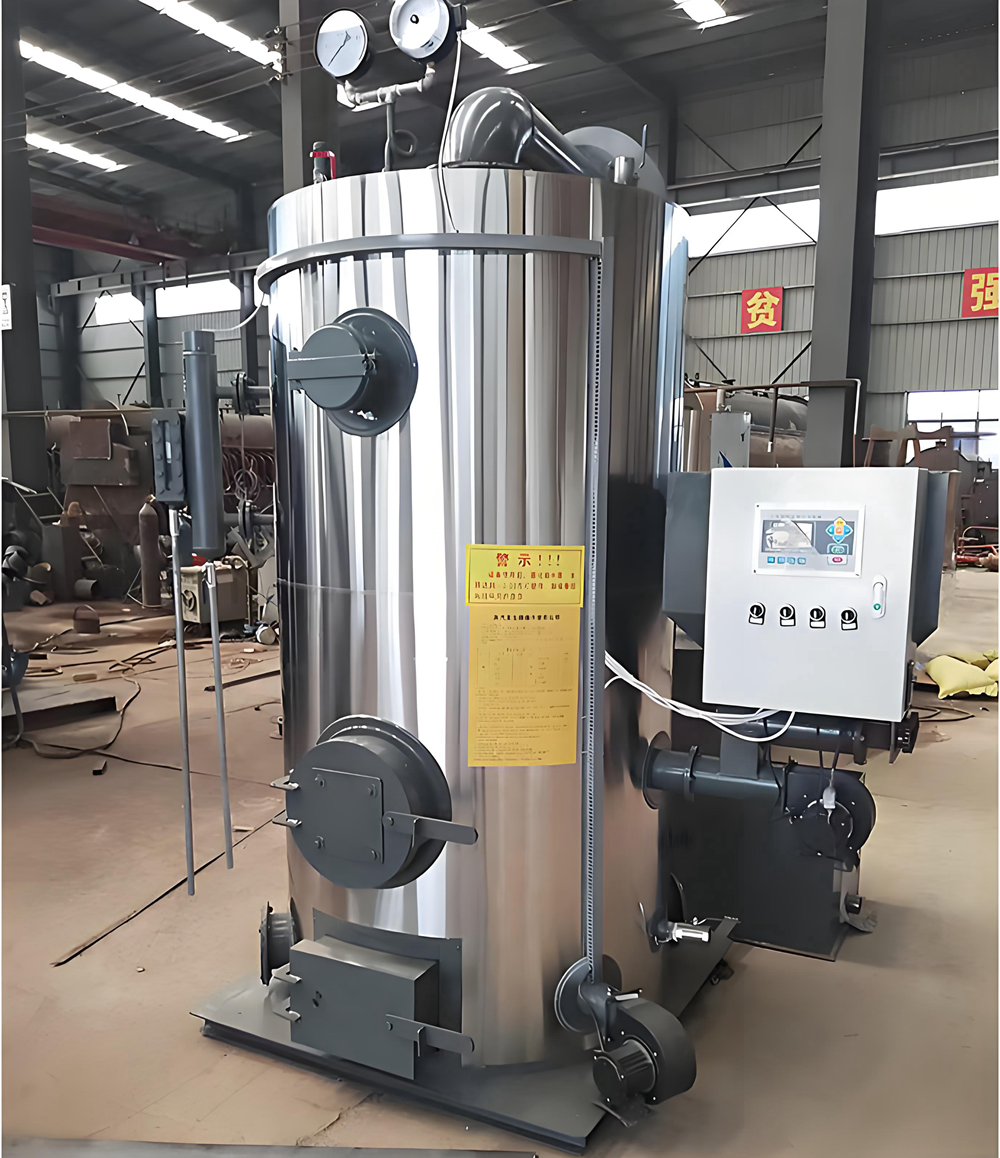

Boiler Display
Fully Automatic 0.5 Ton Biomass Pellet Steam Boiler Vertical With PLC Control System
Fully Automatic 0.5 Ton Biomass Pellet Steam Boiler Vertical With PLC Control System

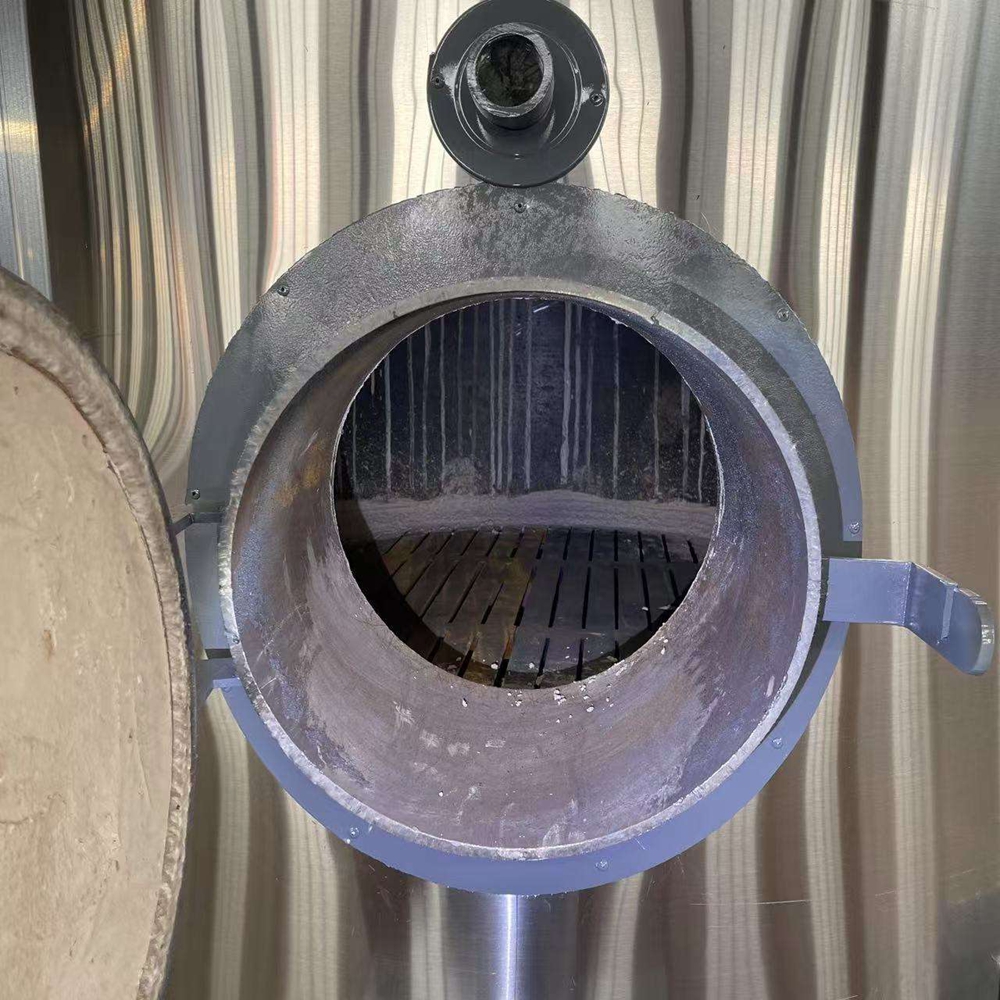

Grate Detail
Fully Automatic 0.5 Ton Biomass Pellet Steam Boiler Vertical With PLC Control System
Fully Automatic 0.5 Ton Biomass Pellet Steam Boiler Vertical With PLC Control System
Fully Automatic 0.5 Ton Biomass Pellet Steam Boiler Vertical With PLC Control System

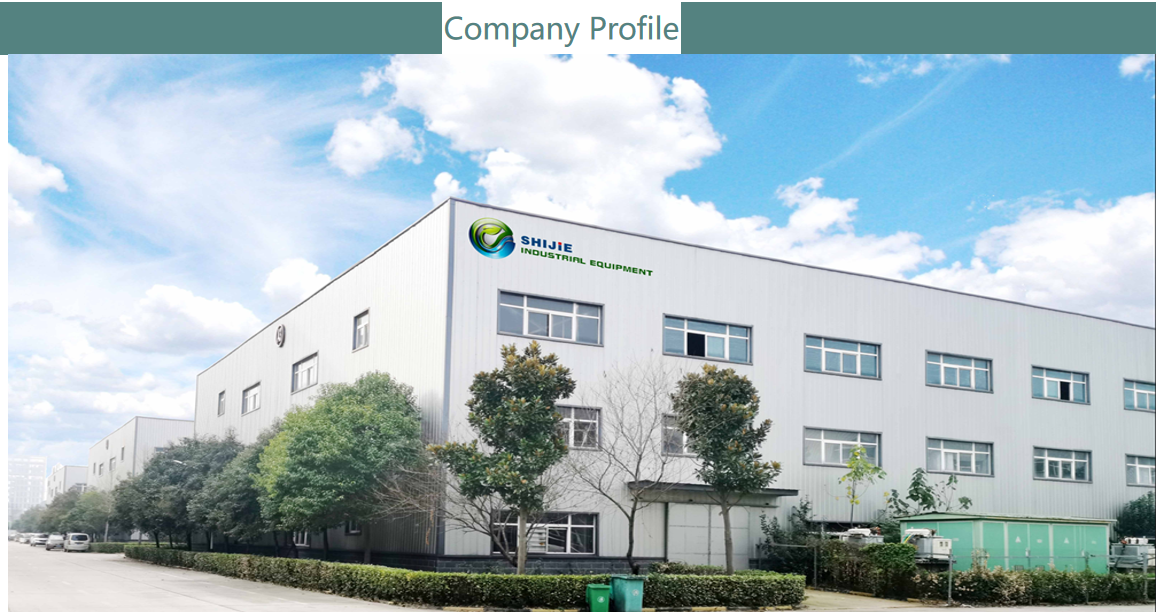

Company Profile
Fully Automatic 0.5 Ton Biomass Pellet Steam Boiler Vertical With PLC Control System
AIX Boiler is a brand under Henan Shijie Industrial Equipment Co., Ltd. Established on January 7, 2019, with a registered capital of 35 million RMB and a National Enterprise Credit Code of 91411627MA47YRXXX9, the company primarily engages in the research,development, manufacturing, technical training, and import/export trade of mid-to-high-end boilers and pressure vessels.Headquartered in Taikang, Henan, known as the "Hometown of Boilers in China," the company boasts an 80,000-square-meter factory and over 100 employees. The company mainly focuses on the research, development, production, and sales of biomass boilers, oil/gas boilers, electric boilers, and pressure vessels. Its products not only sell well in the domestic market but are also exported to more than ten countries and regions, including Morocco, Egypt, Ethiopia, Peru, Mongolia, the Philippines, and Indonesia. An excellent workforce, advanced technology, sophisticated equipment, and strict management are the cornerstones of the company's continued growth and the trust it has earned from its customers.

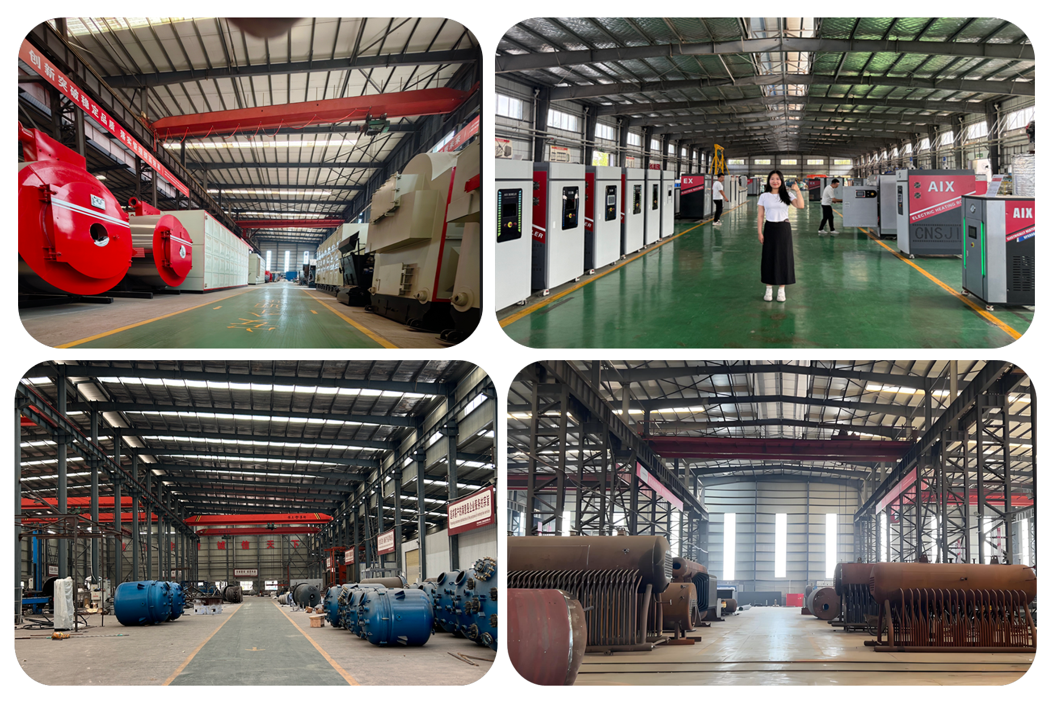

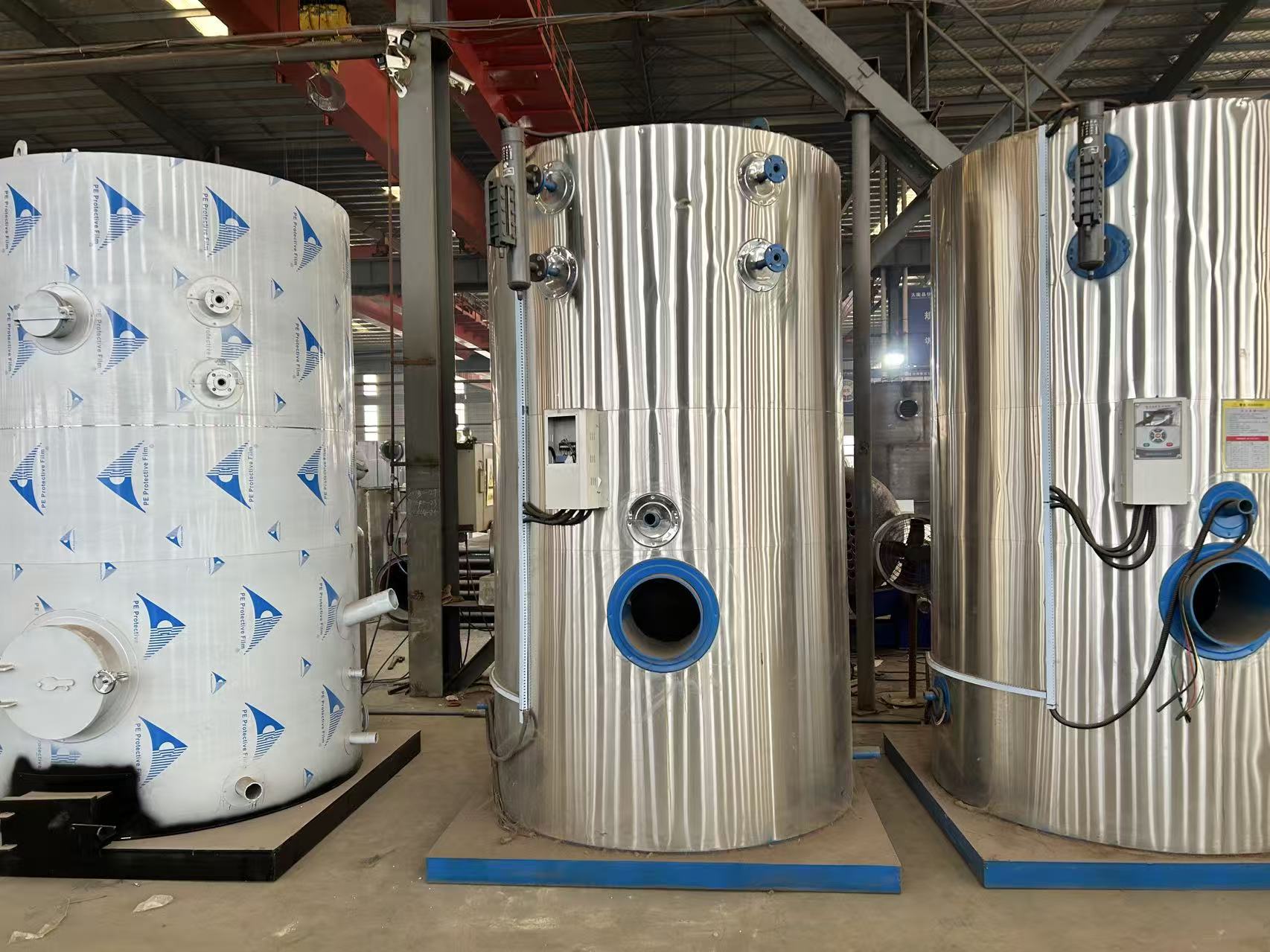

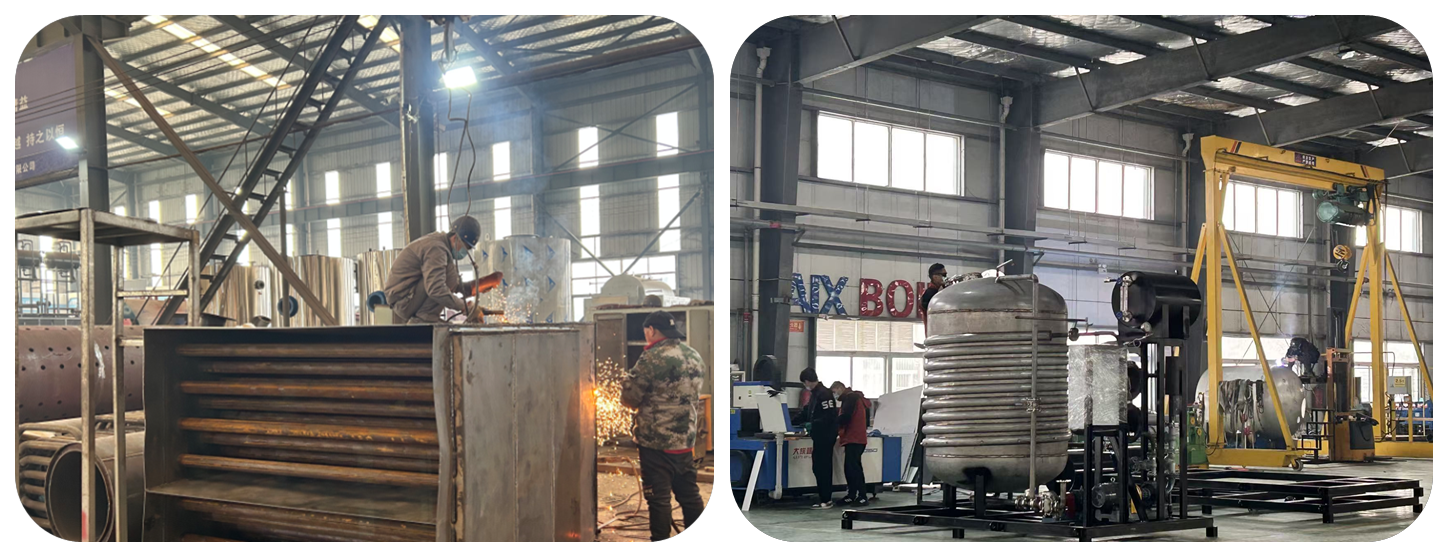

Factory Showcase
Fully Automatic 0.5 Ton Biomass Pellet Steam Boiler Vertical With PLC Control System
Fully Automatic 0.5 Ton Biomass Pellet Steam Boiler Vertical With PLC Control System
AIX Boiler - More than 20 core boiler patents, major supplier of electrical components in the industry, and drafter of Chinese boiler production standards.
Customer Visiting
Fully Automatic 0.5 Ton Biomass Pellet Steam Boiler Vertical With PLC Control System
Certifications
Fully Automatic 0.5 Ton Biomass Pellet Steam Boiler Vertical With PLC Control System
FAQ
Q1: How to get the best quote quickly?
A: We need to know the boiler capacity, the fuel you plan to use, and the required steam pressure to confirm the boiler model.
Customers need to provide their name, email address, and company name, and we will send a quote immediately. If you use WhatsApp, Skype, or WeChat, you can provide your ID for easier communication.
Q2: Why choose us?
A:1. Over 40 years of boiler manufacturing experience and 10 years of export experience. A-level boiler factory.
2. Free parts replacement within one year, lifetime maintenance of the main unit (excluding improper human operation).
Q3:What is your delivery time?
A: Generally, the delivery time is 15~25 days for boilers≤6Ton , 25~40 days for boilers>6Ton.
Q4:What is the using life of your boiler?
A:Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
