ASME Standard SA210A1 Boiler Straight Tube Panel for Power Plant Water Wall Panel

Specifications

MOQ :

Price :

2600

Material :

SA210A1

Production Technique :

Saw

Dimensions :

L12010mm*W2100mm*H1987mm

Surface Treatment :

Painted

Fuel Type :

Coal

Tube Size :

44.5mm*6.1mm

Manufacturing Standard :

ASME/En/GB

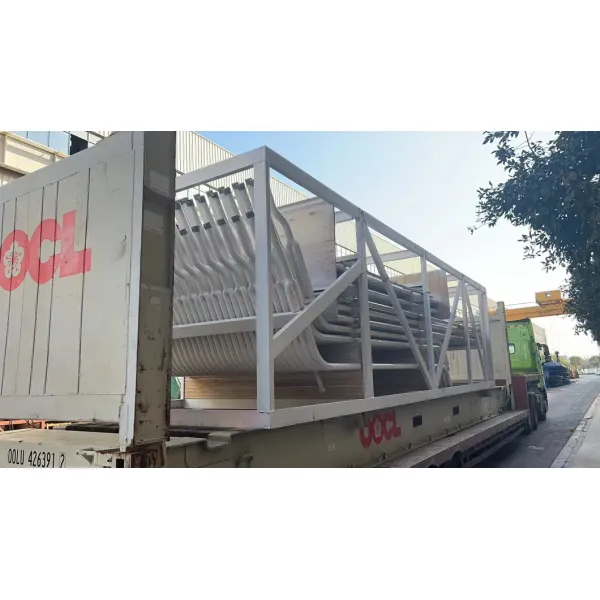

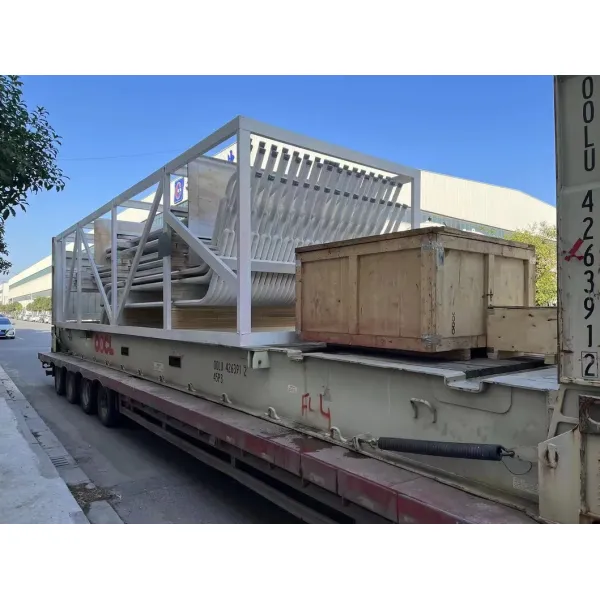

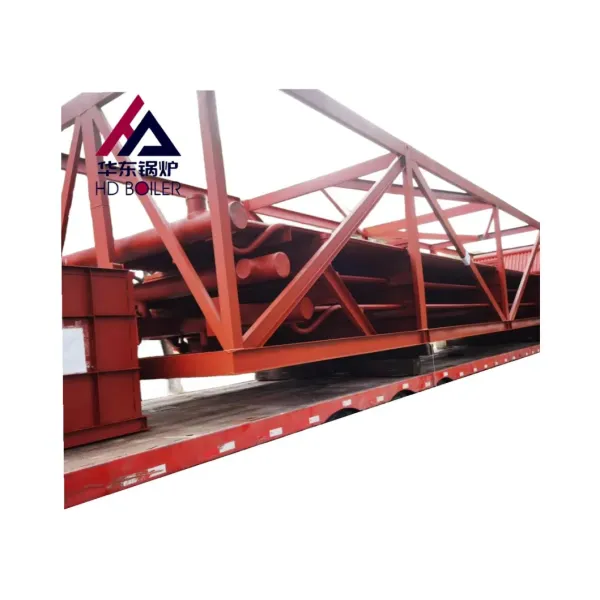

Transport Package :

Steel Frame

Production Capacity :

9000 Tons/Year

Equipment Type :

Automatic production equipment

Pitch Ratio :

1.2-1.5

Structure Type :

Membrane wall

Fin Type :

Rolled fin tubes

Welding Method :

Fusion welding

Heat Storage :

Low

Description

The main type of water wall panels our company fabricate is membrane wall.

Membrane water wall is an air-tight structure consisting of pipes and fins.The advantages are less air leakage in furnace; can use pipe-laying wall, less load on steel structure and lower cost of boiler; easy to use suspension structure and improve thermal expansion system, suitable for large-scale mechanized production, high assembly rate, low heat storage capacity and shorten star-up and shutdown time. The disadvantage is that the manufacturing process is complex. Membrane water wall is often used in large capacity, high temperature and high pressure boilers.

According to the different manufacturing process, the membrane water wall can be divided into three types:1.rolled fin tubes are welded in rows, with less welding workload, but the fin tubes are expensive. 2.bare tube and fin(flat steel) are welded in rows, which has low material cost and can easily meet the requirements of various pitches, but flat steel requires high precision and finishing equipment.3.Bare tube fusion welding,the fins between tubes are formed by filling the welding wire, mostly used for the small pitch between the tubes. The pitch between tubes of membrane water wall is related to factors such as boiler pressure and furnace heat load, usually s/d is 1.2-1.5.

ASME Standard SA210A1 Boiler Straight Tube Panel for Power Plant Water Wall Panel

Name	Memebrane Walls
Material	ASME SA210A1
Tube size	44.5mm*6.1mm
Standard	As per ASME/GB standard
Equipment	Automatic production equipment
Application	Maintenance of Sugar Mill Boiler and Power Plant Boiler

HD Boiler founded in 1985, is an enterprise specializing in manufacturing power station boilers, industrial boilers, HRSGs, waste incineration boilers, biomass boilers and related heating surface components in China. Hua Dong Boiler provides clients with integrated services from
design, manufacturing to installation and maintenance.

Q1: How long is the warranty period?

We provide 12 months warranty for all spare parts(exclude fragile parts).

Q2: How can we guarantee quality?
1) All machines are in strict accordance with the ISO quality and CE system requirements.
2) Each procedure is crafted by professional Skilled labour, followed by particular QC
3) All information of our products can be checked in efficient management system.

Q3: What can you buy from us?
CFB Boiler, HRSG Boiler, Boiler Economizer, Boiler Fin tube, Boiler Air preheater, Boiler superheater, Boiler membrane wall,
Boiler manifold headers and other pressure spare parts.

Q4: What kind of service do you provide?
Before sales:
Provide productinformations, market research forecasting, product customization,product processing,consultation and other services for your convenience.

After sales:
1. Technical training on according to customer requirements;
2. We promise replacement under warranty;
3. We promise to supply the maintenance spare parts;
4. Regular call back or visit customers;
5. On time response to mail and phone calls of your complaints or consultation.

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FCA;
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T, L/C, MoneyGram, Western Union, Cash;
Language Spoken:English,Chinese

Q5: Are you a factory or trading company, where are you located?
We are a factory, just 130km(2 hours by car) away from Shanghai Airport.

We offer pickup service at Shanghai for your visit.
