Industrial Usage Boiler Economizer with Natural Circulation and 1 Year Warranty for Energy Saving
Industrial Usage Boiler Economizer with Natural Circulation and 1 Year Warranty for Energy Saving
Industrial Usage Boiler Economizer with Natural Circulation and 1 Year Warranty for Energy Saving
Industrial Usage Boiler Economizer with Natural Circulation and 1 Year Warranty for Energy Saving
Industrial Usage Boiler Economizer with Natural Circulation and 1 Year Warranty for Energy Saving
Industrial Usage Boiler Economizer with Natural Circulation and 1 Year Warranty for Energy Saving
Industrial Usage Boiler Economizer with Natural Circulation and 1 Year Warranty for Energy Saving
Industrial Usage Boiler Economizer with Natural Circulation and 1 Year Warranty for Energy Saving
Industrial Usage Boiler Economizer with Natural Circulation and 1 Year Warranty for Energy Saving
Industrial Usage Boiler Economizer with Natural Circulation and 1 Year Warranty for Energy Saving
Industrial Usage Boiler Economizer with Natural Circulation and 1 Year Warranty for Energy Saving
Industrial Usage Boiler Economizer with Natural Circulation and 1 Year Warranty for Energy Saving
Specifications
Place of Origin :
Zhangjiagang,China
Brand Name :
HD Boiler
Model Number :
Bare type Economizer
Certification :
ISO9001,ASME,Grade A,SGS,EN
MOQ :
1
Price :
$300
Type :
Natural Circulation
Structure :
fire tube and water tube
Pressure :
Low / High Pressure
Style :
VERTICAL
Fuel :
Coal-fired
Output :
Hot Water / Steam
Surface Treatment :
Painted
Bare pipe OD :
25-1650 mm
Bare pipe thickness :
2-40 mm
Fin thickness :
0.6-3.0 mm
Fin height :
5-30 mm
Fin tube pitch :
5-30 mm
Fin tube length :
≤12000 mm
Material :
Carbon Steel, Alloy, Austenitic Steel
Hydraulic test :
Standard working pressure
Description

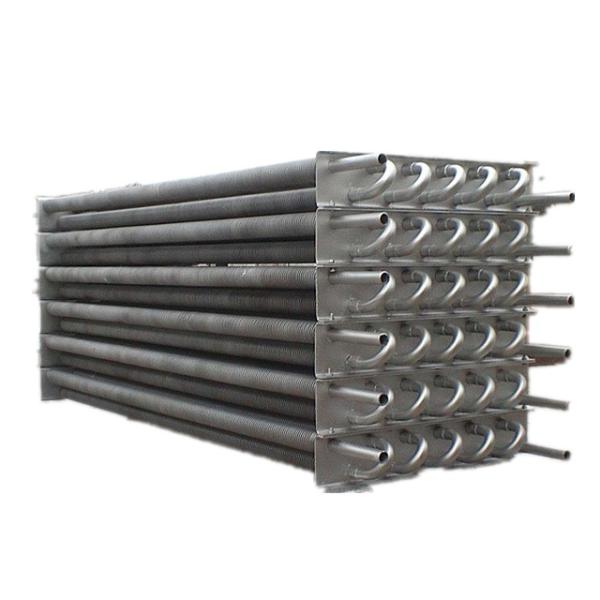

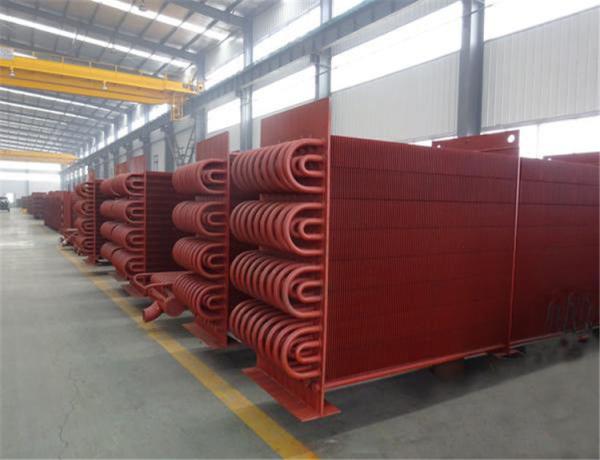

Boiler Economizer

Wood fired generators boiler economizer for portable steam boiler

Product Description

Introduction

Economiser performs a key function in providing high overall boiler thermal efficiency by recovering the low level energy from the flue gas before it is exhausted to the atmosphere. Economiser recovers the energy by heating the boiler feedwater.Economiser are basically tubular heat transfer surfaces used to preheat boiler feed water before it enters the steam drum or furnace surfaces. Economiser reduces operating costs or economise on fuel by recovering extra energy from the flue gas.

Procedure

Economisers also reduce the potential of thermal shock and strong water temperature fluctuations as the feed water enters the drum or waterwalls. Increasingly stringent environmental regulations limiting nitrogen oxides and sulfur dioxide emission can also affect economizer design. The gas-side heat transfer coefficient is much less than water side heat transfer coefficient. To compensate this, outer surface of the tubes may be finned to increase the surface area of heat transfer. The ultimate goal of economizer design is to achieve the necessary heat transfer at minimum cost. A key design criterion for economizer is maximum allowable flue gas velocity. Higher velocity provide better heat transfer and reduce capital cost.

Specifications

Name(unit)

Specification(mm)

Bare pipe(OD)

25-1650

Bare pipe(Thickness)

2-40

Fin (Thickness)

0.6-3.0

Fin (Height)

5-30

Fin tube thread pitch

5-30

Fin tube length

≤12000

Material:Carbon Steel,Alloy,Austenitic Steel(Nickel and Chromium or Manganese)

Quality Control

1. Impact test and Strength calculation report with applied materials information.

2. 100%NDT(non-destructive inspection) report of steel plate, tube and electrode.

3. X-ray, γ-ray and liquid penetrant test inspection report (welding seam): to ensure the quality of the entire boiler.

4. Hydraulic test report: ensure the standard working pressure and safety.
