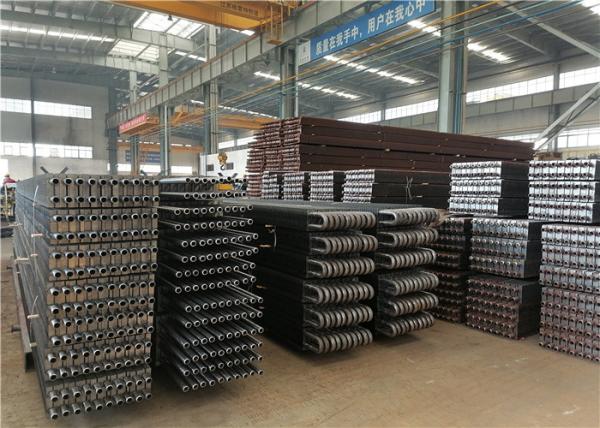

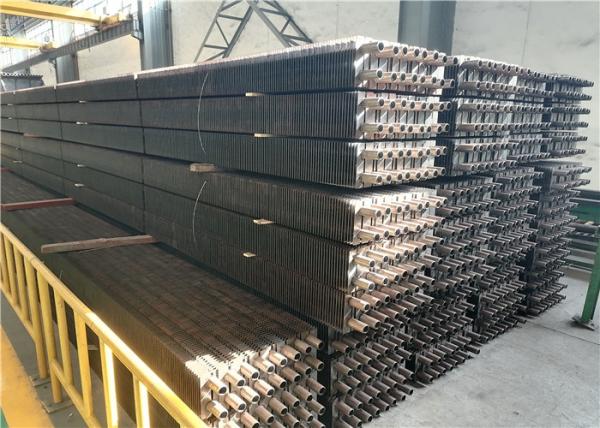

Weld Bending Extruded Boiler Fin Tube For Economizer
Weld Bending Extruded Boiler Fin Tube For Economizer
Weld Bending Extruded Boiler Fin Tube For Economizer
Weld Bending Extruded Boiler Fin Tube For Economizer
Weld Bending Extruded Boiler Fin Tube For Economizer
Weld Bending Extruded Boiler Fin Tube For Economizer
Specifications
Brand Name :
HD BOILER
Model Number :
Fin Tube
Certification :
ISO9001 ,SGS , TUV, ASME , EN
Place of Origin :
ZhangJiaGang,JiangSu ,China
MOQ :
1 Set / Sets 10tons
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500ton / Month
Delivery Time :
50-100days
Packaging Details :
Standard Seaworth Package
Condition :
New
Structure :
Fir / Water Tube
Fuel :
Coal / Gas / Coal-fired / Water heat
Type :
Boiler Part
Pressure :
Low / High Pressure
Range of Application :
Industry Boiler Power Plant Boiler
Specification :
Customized
Surface Treat :
Painted
Technology :
High-frequency Welding
HS Code :
3215960855
Description

Energy Efficient Boiler H - Fin Tube Extruded For Economizer ASME Standard

Fin Tube Description

Our products can be modified according to our customers' needs and the situation.we design and manufacture safe,reliable and efficient H-fin tubes.HD BOILER has also completed stand-alone product quality assurance systems.Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.

The two fins of the h-shaped fin tube are rectangular, almost square, and the side length is about twice that of the light tube.Belongs to the extended heating surface.The h-shaped fin tube adopts the flash resistance welding process, which has high weld fusion rate, high tensile strength and good thermal conductivity.The h-shaped fin tube can also be made into a double-tube "dual-h" fin tube, which is of good rigidity and can be applied in the case of longer pipe rows.

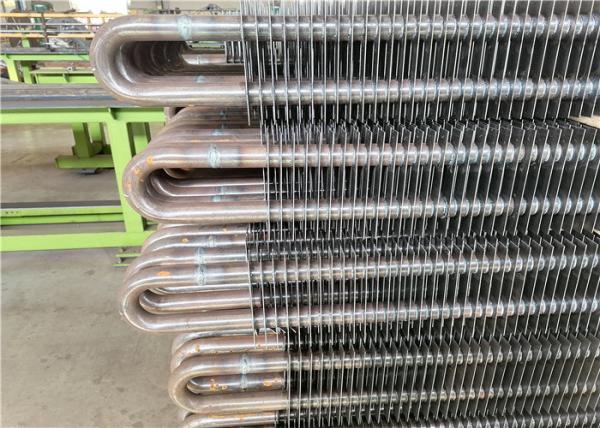

Weld Bending Extruded Boiler Fin Tube For Economizer

Parameter

Technical parameters The high degree of fin 0-16mm(or outside diameter of fin φ25-φ75);
Pitch of fins 2.0-5.0mm; Length of finning tube 0.5~ 14m.
Single metal rolling finning tube Pure aluminum 1060 or aluminum alloy 6063,6061.
Outside diameter Shall be less than 40mm
Double metal rolling finning tube Tube-based protection from the outer layer of aluminum
tubes,corrosion-resistant,Tube-based can be made of carbon steel pipe,in addition to,stainless
steel tube and copper tube can also be used, as well as titanium alloy tube
Package The aluminum finned tubes are well packed in plastic film in the inner and steel fram
in the outer

PRODUCT TYPE TUBE MATERIAL FIN MATERIAL TUBE SIZE FIN SIZE
Heat Exchanger Finned Tube Extruded Fin Tube All Kind of Material can be applied Aluminum A1100 15.88~50.8 7~11.5FPI
Fin Height Max 16mmH
L-Foot Fin Tube All Kind of Material can be applied Copper C1100, C1220 12.70~50.8 7~11.5FPI
(Wrap On Type) Fin Height Max 16mmH
G-Fin Tube (Embedded Type) Aluminum A1100, A1050, A1060
High Frequency Welded Finned Tube A179 Carbon Steel Tube Carbon Steel Tube 12.70~160 1.5~7FPI
Stainless Steel Tube Stainless Steel Tube 0.8~3.2mm. Thickness
Alloy Steel Material Alloy Steel Material
Integral Copper & Copper Alloy High Finned Tube C12200, C11000, C70600 C12200, C11000, C70600 15.88~22.23 5~9FPI
Max 12mm. H
Oval Finned Tube Carbon Steel Tube Carbon Steel Tube All Size Available 5~15FPI
Stainless Steel Tube Stainless Steel Tube
Alloy Steel Material Alloy Steel Material
Copper & Copper Alloy Tube Copper & Copper Alloy Tube
Monometallic Fin Tube Low Fin Tube Carbon Steel, stainless steel, titanium, copper, brass, nickel alloy, etc. -- 9.52~40 12, 16, 19 28 FPI, etc.
Turbo-C Tube
Turbo-E Tube
Corrugated Tube All Kind of Material -- 6.35~40 2~9FPI
