Specifications
Brand Name :
BF
Model Number :
BF-H-3K
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
4500$
Payment Terms :
T/T,L/C
Supply Ability :
500UNITS PER MONTH
Delivery Time :
20-25 DAYS
Packaging Details :
PLYWOOD CASE
Material :
Q235&FRP
Working tempreture :
-45-60℃
Rotor diameter (m) :
4
Height of blades :
3.6
Rated rotor speed (m/s) :
150r/min
Speed regulation method :
Electromagnetic control
Top weight (kg) :
485kg
Start up wind speed(m) :
3.2m/s
Sweep wind area(㎡) :
6.68
Survival wind speed(m) :
50
Rated wind speed(m/s) :
11
Description
BF-H Series 5kW Vertical Axis Wind Turbine
Our BF-H series wind power generating system features advanced vertical axis technology with magnetic suspension structure, delivering exceptional wind energy efficiency and reliable performance for residential and small business applications.
Key Features
  • High wind energy coefficient with low startup wind speed (3.2m/s)
  • Superior anti-wind capability and stable operation
  • Noise-free performance with maintenance-free design
  • Advanced anti-corrosion treatment and sealing for long service life
  • Captures wind from any direction without yaw mechanism
  • Ideal for urban and suburban environments with turbulent wind flows
Technical Specifications
Rated Power 5kW
Rated Voltage 3000V
Rotor diameter (m) 4
Height of blade (m) 3.6
Material of blades and numbers Glass Fiber Reinforced Plastic/5
Rated rotor speed 150 r/min
Speed regulation method Electromagnetic control
Wind energy utilized coefficient 30%-40%
Range of working temperature -45℃ - 60℃
Top weight (kg) 485
Start up wind speed (m/s) 3.2
Sweep wind area (㎡) 5.84
Survival wind speed (m/s) 50
Rated wind speed (m/s) 11
Tower type Guy cabled tower
Service life 20-25 years

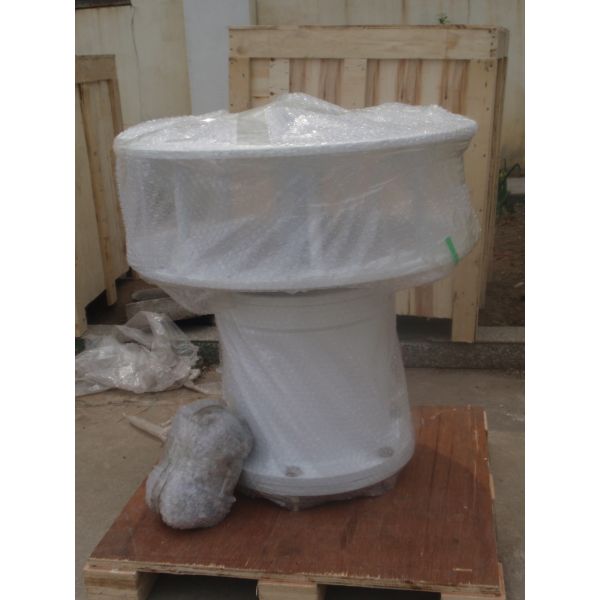

Generator Body
Features high-grade Neodymium Iron Boron permanent magnets, each tested for magnetic flux by authorized institutions. Engineered for low starting torque while maintaining high generating efficiency through optimized internal structure.ios
Quiet & Safe Home Wind Power: Vertical Axis Turbines for Roof/Yard 5kw 110V/220V/380V output

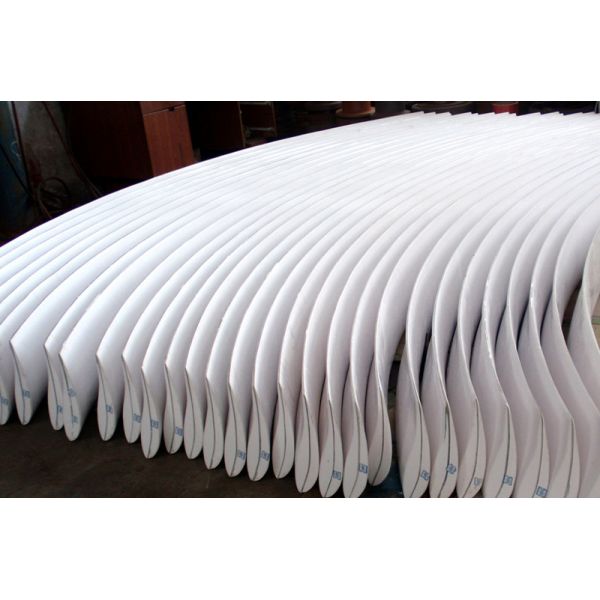

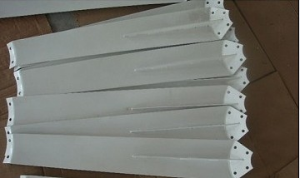

Streamline shape with 3 reinforced fiber plastic blades. Manufactured using unidirectional fiber fabric and epoxy resin molds with inner foam core construction. Designed for low noise operation, excellent balance, and superior fatigue resistance.
Quiet & Safe Home Wind Power: Vertical Axis Turbines for Roof/Yard 5kw 110V/220V/380V output

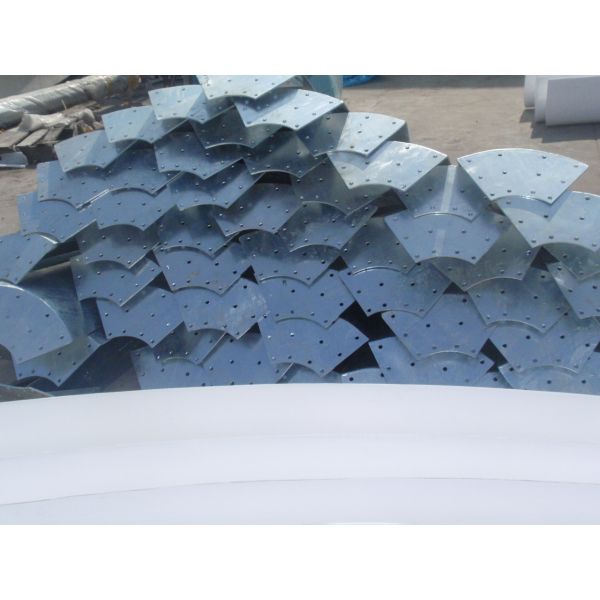

Wheel Hub & Connectors
Precision-made steel wheel hub connects blades to generator. Blades connectors constructed from Q235 plate with anti-corrosion surface treatment for durable performance.
Quiet & Safe Home Wind Power: Vertical Axis Turbines for Roof/Yard 5kw 110V/220V/380V output Quiet & Safe Home Wind Power: Vertical Axis Turbines for Roof/Yard 5kw 110V/220V/380V output
Quiet & Safe Home Wind Power: Vertical Axis Turbines for Roof/Yard 5kw 110V/220V/380V output

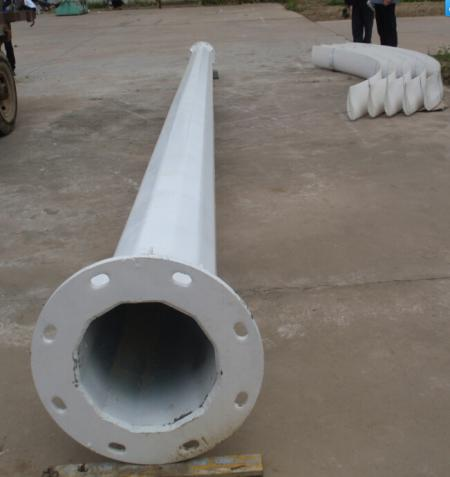

Tower Options
Available in Q235 guy wire tower with anti-corrosion painting or free stand tower with hot dip galvanized plastic spraying for various installation requirements.
Quiet & Safe Home Wind Power: Vertical Axis Turbines for Roof/Yard 5kw 110V/220V/380V output

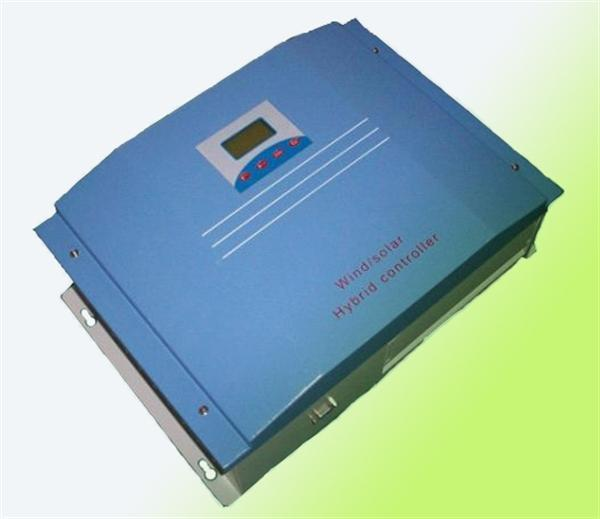

Off-grid Controller
Wind-solar hybrid controller which rectifies AC current generated by wind generator into DC current and charges the battery bank. Unload function activates when strong wind produces excess current. The controller brakes when batteries reach full capacity (125% voltage) and resumes charging when voltage reduces to 108%. Includes manual brake button for emergency stops.
Quiet & Safe Home Wind Power: Vertical Axis Turbines for Roof/Yard 5kw 110V/220V/380V output
5kW On-Grid Controller Specifications
Power of the equipped wind turbine 5kW
Operating mode Continuous
Function Commutation, control
Operating environment Temperature -10～40℃, humidity≤80%
PWM unloading voltage (DCV) ≥360V
Brake voltage (DCV) 410±5V
Stop delay time (min) 10-20 minutes
Low voltage indicator (V) ≤200V
PWM unloading fuse (A) 6A
DC output fuse (A) 10A

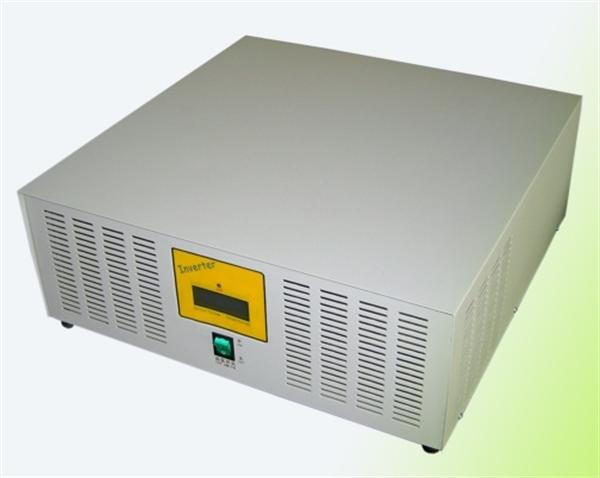

Off-grid Inverter
Pure sine wave output capable of driving any household appliances. Features integrated circuit design with minimal wiring connections. Utilizes microprocessor technology for enhanced system integration. Includes comprehensive protection systems with high efficiency transformer design and LCD operation status display.
Quiet & Safe Home Wind Power: Vertical Axis Turbines for Roof/Yard 5kw 110V/220V/380V output
5kW Off-Grid Inverter Specifications
Over Voltage Recovery Point 297VDC
Under Voltage Point 189VDC
Under Voltage Recovery Point 216VDC
No Load Loss 0.12A
Display Parameter Battery Voltage, Output Voltage, State Parameter
Output Frequency 50/60 Hz±0.05Hz
Dielectric Strength 500VAC, one minute
Protection Type Battery over voltage protection, Battery under voltage protection, Battery reverse-connect protection, Output over load protection, Output short circuit protection, Over temperature protection
Operation Ambient Temperature -20～50℃
Operation Ambient Humidity 0~90%, no condensing
Additional Technical Specifications
  • Generator Type: Permanent magnetic synchronous style
  • Surface Treatment: Multi-layer painting including base coat (2 layers), anti-corrosion paint, and surface finish
  • Complete System Includes: Base flange, guy wires, wire tighteners, ground anchors, nuts, screws, bolts, and cables
  • Off-Grid System Requirements: 4 x 12V 100AH batteries (not included in base price)
  • Certifications: CE product certificate and ISO factory report
