Durable 10kW VAWT System with MPPT Controller - 20 Year Design Life

Specifications

Brand Name :

Model Number :

BF-H-10K

Certification :

Place of Origin :

China

MOQ :

Price :

9500$

Payment Terms :

T/T,L/C

Supply Ability :

500UNITS PER MONTH

Delivery Time :

20-25 DAYS

Packaging Details :

PLYWOOD CASE

Material :

Q235&FRP

Working tempreture :

-45-60℃

Rotor diameter (m) :

Height of blades :

6.7

Rated rotor speed (m/s) :

100r/min

Speed regulation method :

Electromagnetic control

Top weight (kg) :

600kg

Start up wind speed(m) :

3.8m/s

Survival wind speed(m) :

Rated wind speed(m/s) :

Tower type :

133mm steel tube

Height of tower :

10M

Material of blades and numbers :

Glass fiber reinforce plastic/5

Output voltage :

220V/380V

Description

BF-H Series 10kW Vertical Axis Wind Turbine

Our BF-C-series wind power generating system features advanced vertical axis technology with magnetic suspension structure, delivering exceptional wind energy efficiency and reliable performance for residential and small business applications.

Key Features

High wind energy coefficient with low startup wind speed (3.8m/s)
Superior anti-wind capability and stable operation
Noise-free performance with maintenance-free design
Advanced anti-corrosion treatment and sealing for long service life
Captures wind from any direction without yaw mechanism
Ideal for urban and suburban environments with turbulent wind flows

Technical Specifications

Power	10KW
Rotor diameter	6m
Height of blade	6.7m
Material of blades and numbers	Glass fiber reinforce plastic/5
Rated rotor speed	150r/min
Output voltage	220V/380V
Start up wind speed	3.8m/s
Rated wind speed	13m/s
Work speed	3.8-25m/s
Security wind speed	50m/s
Height of tower	10m/12m
Top weight except tower	600kg
Tower type	133mm steel tube
Wind energy utilized coefficient	30%-40%
Suggested batteries information	36pcs 12V 200AH
Speed regulation method	electromagnetic control
Range of working temperature	-45℃-60℃

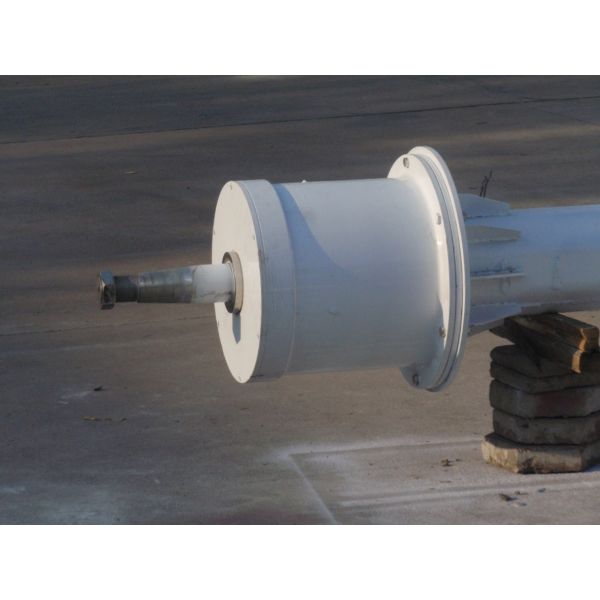

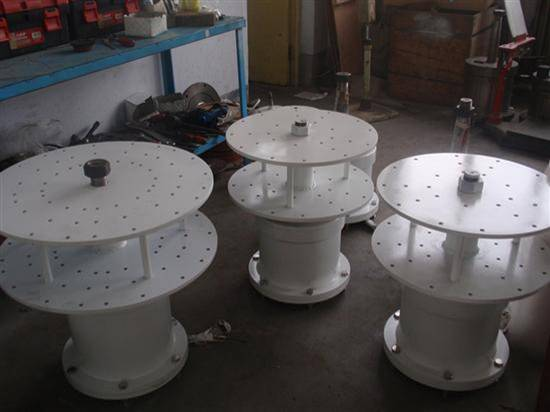

Generator Body

Features high-grade Neodymium Iron Boron permanent magnets, each tested for magnetic flux by authorized institutions. Engineered for low starting torque while maintaining high generating efficiency through optimized internal structure.

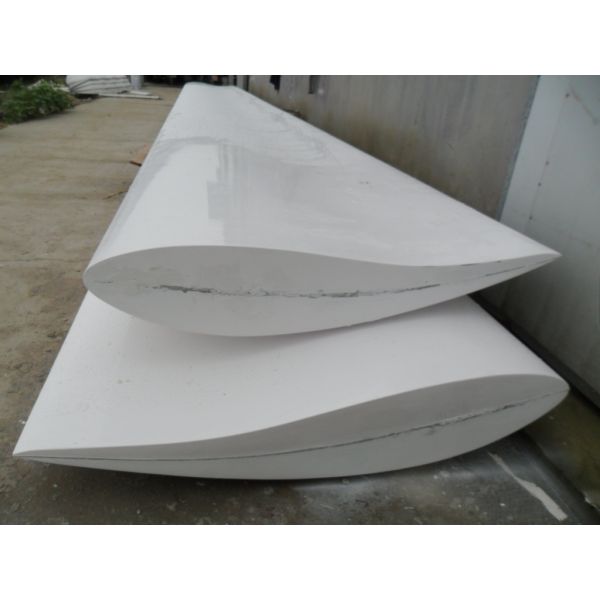

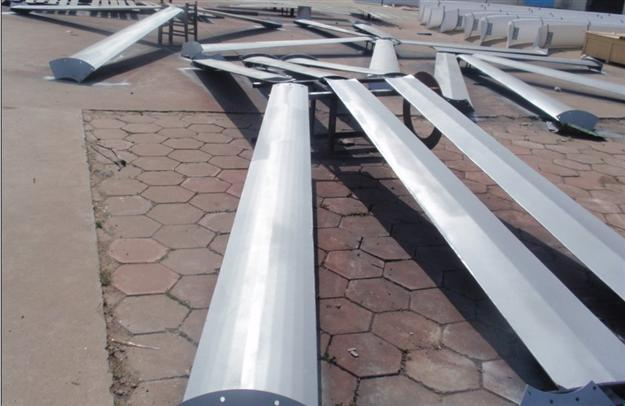

Blade Specifications

Streamline shape with 3 reinforced fiber plastic blades. Manufactured using unidirectional fiber fabric and epoxy resin molds with inner foam core construction. Designed for low noise operation, excellent balance, and superior fatigue resistance.

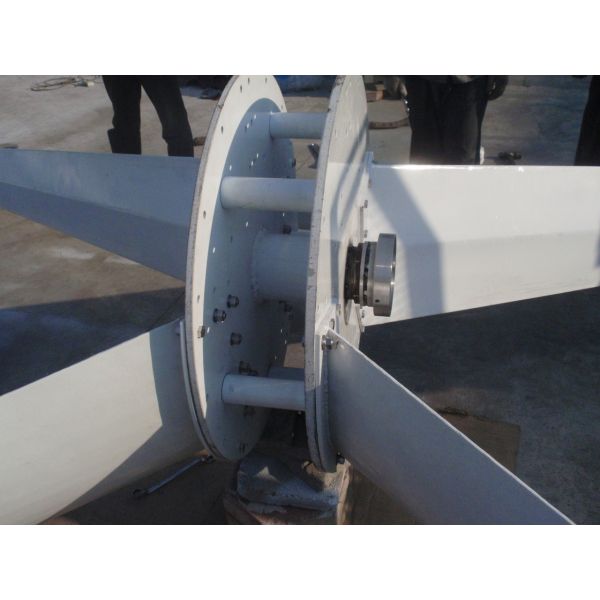

Wheel Hub & Connectors

Precision-made steel wheel hub connects blades to generator. Blades connectors constructed from Q235 plate with anti-corrosion surface treatment for durable performance.

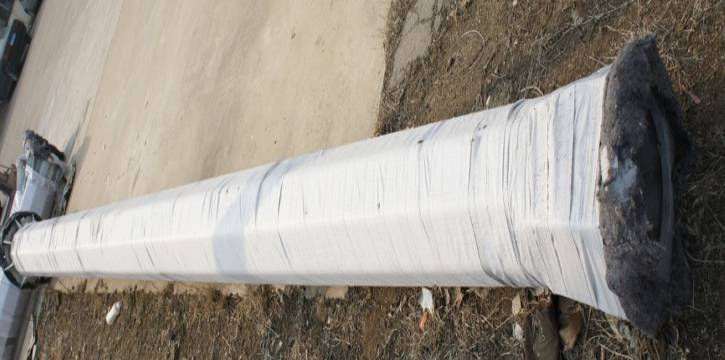

Tower Options

Available in Q235 guy wire tower with anti-corrosion painting or free stand tower with hot dip galvanized plastic spraying for various installation requirements.

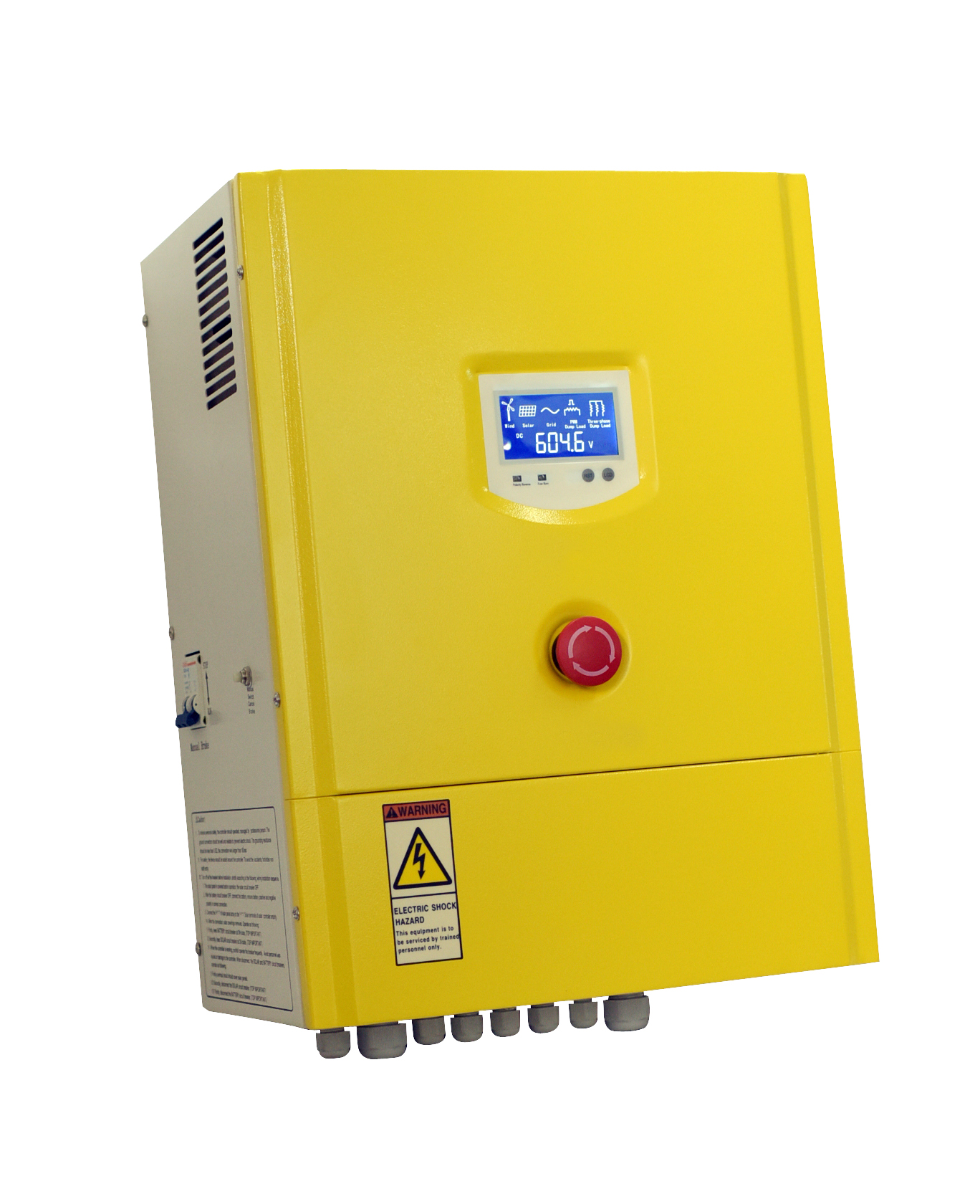

On-grid Controller

Brake function will be made when there is problem in on-grid inverter and disconnects the state grid. Controller still delivery the stable current even though it is strong wind and there are full indications including wind energy indication, unload indication, delay stop indication, under voltage indication, grid electricity indication. The emergency brake button at the back will force to stop the rotation.

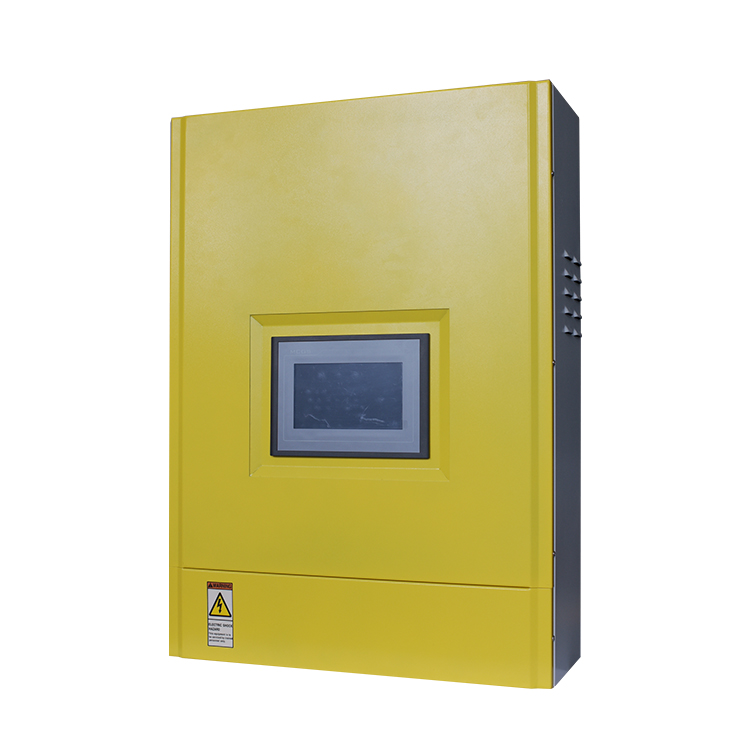

On-grid Inverter

It uses IPM from Mitsubishi as the power components and American ATEMEL company microprocessor as figure controller. Perfect protection, warning functions, MPPT (Maximum Power Point Tracking) technology is matched on the inverter and it is also pure sine wave output, automatically synchronized with the grid tracking, power factor close to 1, Current low harmonic content, non-polluting power grid, no impact.

Durable 10kW VAWT System with MPPT Controller - 20 Year Design Life

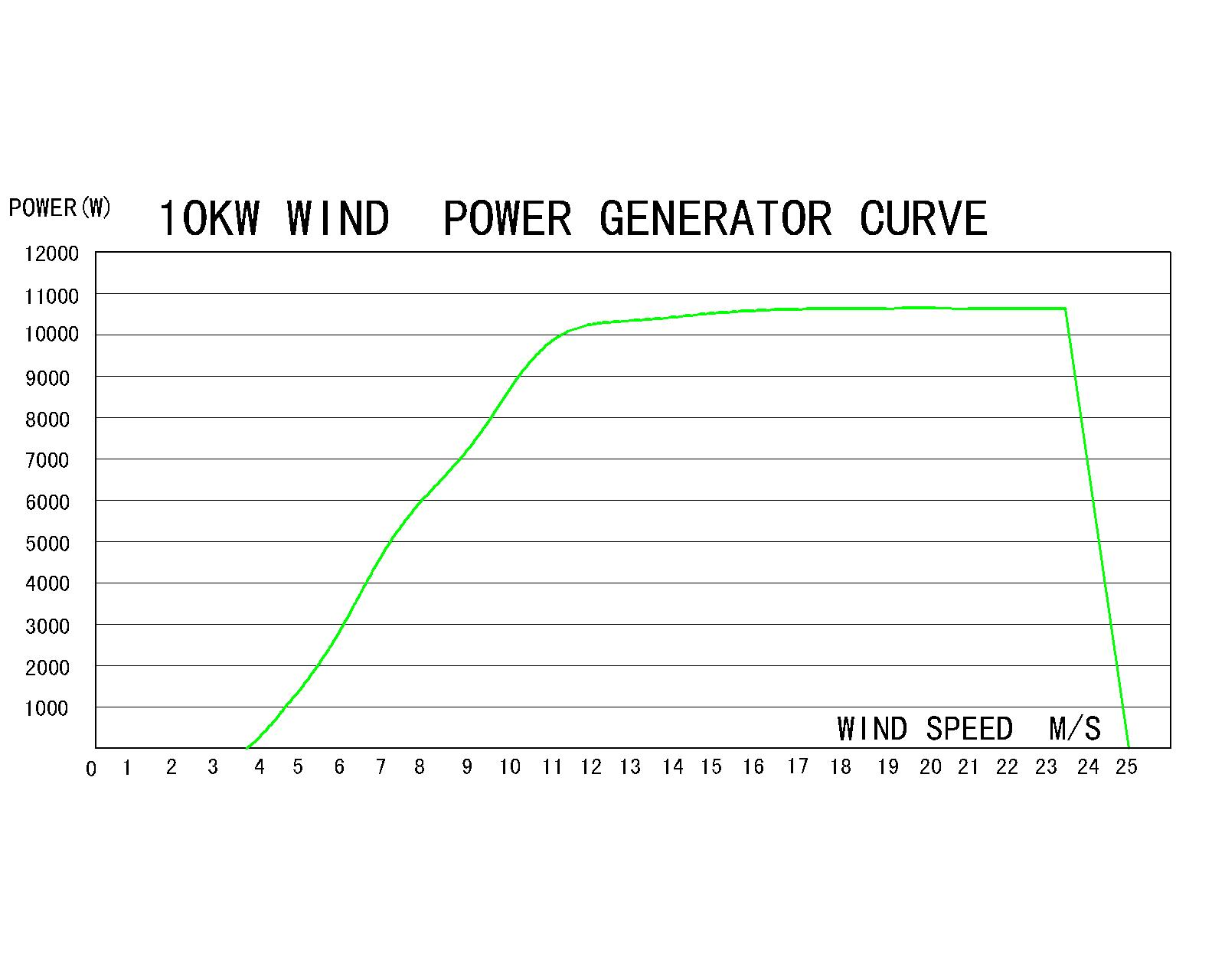

Performance Curves

Additional Technical Specifications

Generator Type: Permanent magnetic synchronous style
Surface Treatment: Multi-layer painting including base coat (2 layers), anti-corrosion paint, and surface finish
Complete System Includes: Base flange, guy wires, wire tighteners, ground anchors, nuts, screws, bolts, and cables
Off-Grid System Requirements: 32 x 12V 100AH batteries (not included in base price)
Certifications: CE product certificate and ISO factory report
