X Ray Baggage Scanner applying advanced x ray technology for airports railway stations and government buildings security
X Ray Baggage Scanner applying advanced x ray technology for airports railway stations and government buildings security
Specifications
Brand Name :
SECUERA or OEM
Model Number :
SE-5030A
Certification :
CE,FCC,ROHS,ISO
Place of Origin :
China-Guangdong
MOQ :
1
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
100 pcs per month
Delivery Time :
5-8 days after payment
Packaging Details :
wooden box
Description

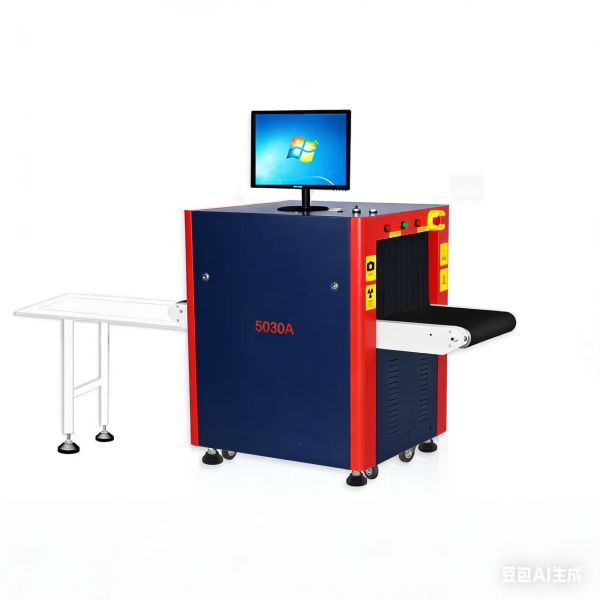

SECUERA 5030A X Ray Bagagge Scanner Application Area

X-ray security screening equipment widely used in airports, railway stations, bus stations, government buildings, embassies,convention centers, exhibition centers, hotels, shopping malls, major events, post offices, schools, logistics, industrial inspection and other places.Model characteristics and configuration: All parts imported , clear image, strong penetrating power, long service life, using the latest international standards.

X Ray Baggage Scanner applying advanced x ray technology for airports railway stations and government buildings security

SECUERA 5030A X Ray Bagagge Scanner Work Principle
Equipment complete the examination by means of that belt making the baggage into the X-ray inspection lanes. Luggage into the X-ray checkpoint to stop the package detection sensor,the detect signal was sent to the system control part to generate X-ray trigger signal,. After a bunch of X-ray fan-shaped collimator beam passing through the items on the belt, X-rays were absorbed by seized items, finally, Bombarding dual-energy semiconductor detectors installed in the channel. The X-ray into the signal through detector, these weak signals are amplified and sent to the signal processing box for further processing.

X Ray Baggage Scanner applying advanced x ray technology for airports railway stations and government buildings security

SECUERA 5030A X Ray Bagagge Scanner Parameters

unnel Size 500(W)×300(H)mm
Conveyor Speed 0.22m/s
Anode Voltage 140kv
Conveyor Max Load 180kg
X ray dose per each inspection 1.5µGy
Wire Resolution 0.0787mm
metal line Penetration 34MM steel
Penetration Resolution
dia 0.202mm copper wire (AWG32) under three-step aluminum wedge
9.5mm,15.9mm,22.2mm
Film Safety Guarantee ASA/ISO1600 Film
Maximum leakage radiation <0.01µGy/h
Image Display High resolution of 1024 * 1280 pixel
Image Grey Level 4096
