25W 50W 100W 150W BC1 High Power Variable Resistor Rotary Disk Ceramic Rheostat
25W 50W 100W 150W BC1 High Power Variable Resistor Rotary Disk Ceramic Rheostat
25W 50W 100W 150W BC1 High Power Variable Resistor Rotary Disk Ceramic Rheostat
25W 50W 100W 150W BC1 High Power Variable Resistor Rotary Disk Ceramic Rheostat
25W 50W 100W 150W BC1 High Power Variable Resistor Rotary Disk Ceramic Rheostat
25W 50W 100W 150W BC1 High Power Variable Resistor Rotary Disk Ceramic Rheostat
25W 50W 100W 150W BC1 High Power Variable Resistor Rotary Disk Ceramic Rheostat
25W 50W 100W 150W BC1 High Power Variable Resistor Rotary Disk Ceramic Rheostat
Specifications
Brand Name :
BOCHEN
Model Number :
BC1
Certification :
RoHS, Reach
Place of Origin :
Chengdu
MOQ :
50 Pieces
Price :
$0.98 - $1.80/Piece
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
3,000,000 Pieces Per Month
Delivery Time :
1-7 Workdays
Packaging Details :
Standard packing or according to customers requirements
Product Type :
Variable Resistor / Rheostat
Termination Style :
Solder Lug
Power Rating :
25W~150W
Mounting Style :
Panel Mount
Nominal Resistance Range :
1Ω~10KΩ
Resistance Tolerance :
±10%
Temperature Range :
-55°~400°
Description

25W 50W 100W 150W BC1 High Power Variable Resistor Rotary Disk Ceramic Rheostat

Description

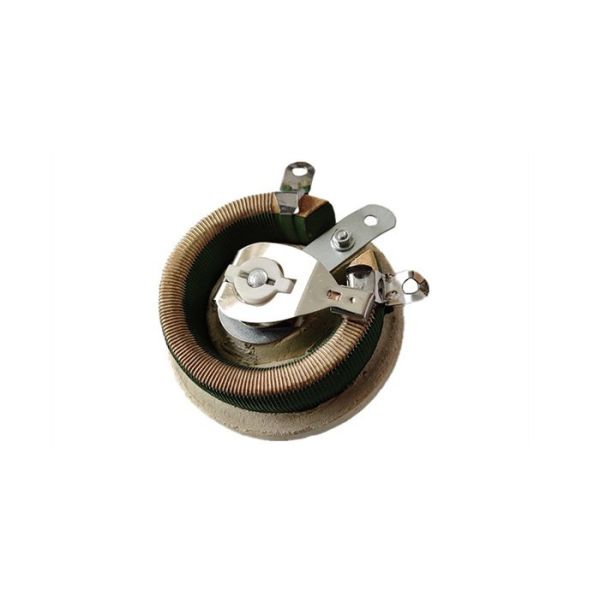

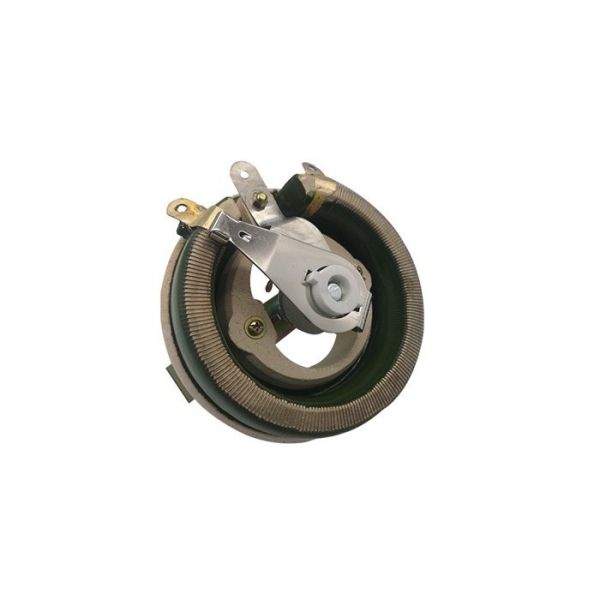

The BC1 Series High Power Variable Resistor is a rotary ceramic rheostat designed to deliver stable and adjustable resistance in high-wattage applications. Available in 25W, 50W, 100W, and 150W power ratings, this rugged and reliable component is ideal for use in electrical equipment, test benches, teaching instruments, and industrial control systems.

25W 50W 100W 150W BC1 High Power Variable Resistor Rotary Disk Ceramic Rheostat

Key Features

Wide Power Range: 25W, 50W, 100W, and 150W options for flexible integration.
High Temperature Tolerance: Ceramic body structure ensures excellent heat dissipation and durability.
Smooth Rotary Adjustment: Precise and continuous resistance control via rotary knob.
Robust Construction: Designed for long operational life in demanding environments.
Resistance Values: Standard and custom ohm values available upon request.
Terminal Type: Screw or solder-type terminals for secure connections.

25W 50W 100W 150W BC1 High Power Variable Resistor Rotary Disk Ceramic Rheostat

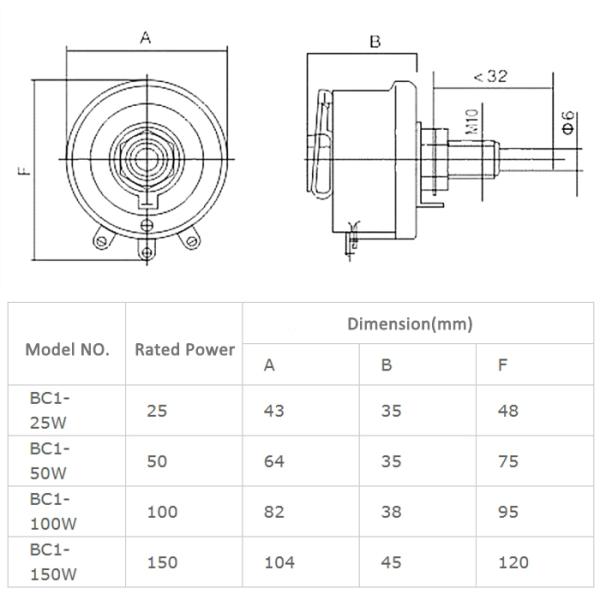

Dimension

25W 50W 100W 150W BC1 High Power Variable Resistor Rotary Disk Ceramic Rheostat

Applications

Voltage and current regulation.
Load simulation.
Heater and motor speed control.
Laboratory and educational equipment.
Power supply testing and adjustment.

25W 50W 100W 150W BC1 High Power Variable Resistor Rotary Disk Ceramic Rheostat

Why Choose Us?

With 25+ years of experience in precision resistor manufacturing, we offer:

* Strict quality control and 100% testing before shipment.
* Competitive pricing with fast global shipping.
* Custom resistance values and private label available.
