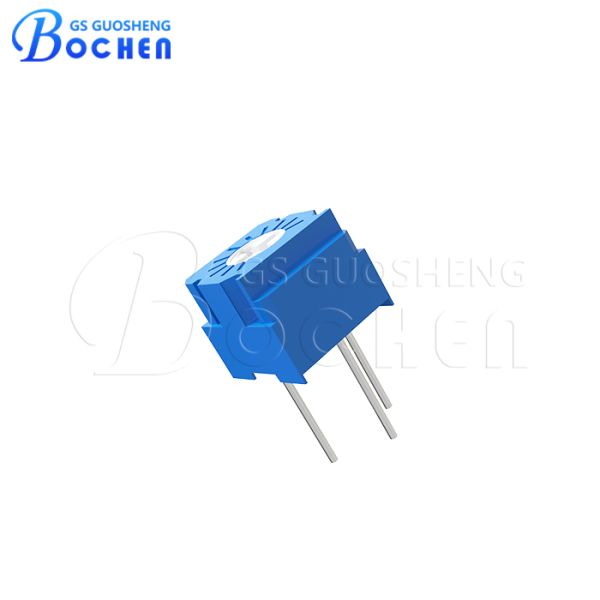

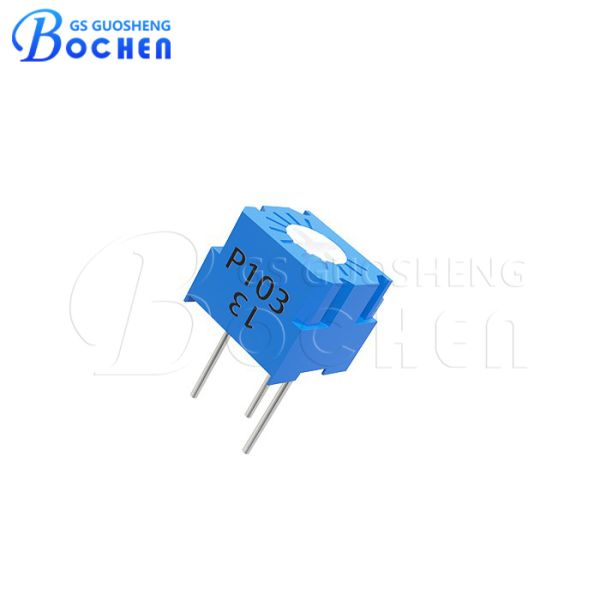

3323P 103 10K RoHS Single Turn Variable Resistor Trimmer Potentiometer
3323P 103 10K RoHS Single Turn Variable Resistor Trimmer Potentiometer
3323P 103 10K RoHS Single Turn Variable Resistor Trimmer Potentiometer
3323P 103 10K RoHS Single Turn Variable Resistor Trimmer Potentiometer
3323P 103 10K RoHS Single Turn Variable Resistor Trimmer Potentiometer
3323P 103 10K RoHS Single Turn Variable Resistor Trimmer Potentiometer
3323P 103 10K RoHS Single Turn Variable Resistor Trimmer Potentiometer
3323P 103 10K RoHS Single Turn Variable Resistor Trimmer Potentiometer
3323P 103 10K RoHS Single Turn Variable Resistor Trimmer Potentiometer
3323P 103 10K RoHS Single Turn Variable Resistor Trimmer Potentiometer
Specifications
Brand Name :
BOCHEN
Model Number :
3323P
Certification :
RoHS, Reach
Place of Origin :
Chengdu
MOQ :
100 Pieces
Price :
$0.085 - $0.90/Piece
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
10000000 Pieces Per Month
Delivery Time :
1-7 Workdays
Packaging Details :
50 Pieces/Tube, 5000 Pieces/Carton.
Product Name :
3323P trimmer potentiometer
Product Type :
Trimmer Resistors
Element Type :
Cermet
Mounting Style :
PCB Mount
Termination Style :
PC Pin
Terminal Resistance :
≤2 ohm
Contact Resistance Variation :
≤3%R or 3ohm
Insulation Resistance :
R1≥1Gohm
Effective Electrical Travel :
210°±10°
Temperature Coefficient :
±250 ± 100ppm/℃
Description

3323P 103 10K RoHS Single Turn Variable Resistor Trimmer Potentiometer

Description

The 3323P trimmer potentiometer is an adjustable electronic component used for controlling resistance in various applications. With its compact and versatile design, it allows for precise resistance adjustments. The potentiometer provides smooth and reliable operation, making it suitable for applications in audio equipment, consumer electronics, and industrial controls.

Feature

■ Adjustable resistance.
■ Compact design.
■ Smooth operation.
■ Durable construction.
■ Versatile applications.

Specification

Electrical Characteristics Nominal Resistance Range 10Ω~5MΩ
Resistance Tolerance ±10%; ±20%
Terminal Resistance ≤±1%R or 3Ω
Contact Resistance Variation (CRV) ≤3%R or 3Ω
Insulation Resistance 500 Vdc. 100 megohms Min.
Withstand Voltage 101.3KPa, 500 Vac; 8.5KPa, 250 Vac
Dielectric Strength 500 Vac(1 Min.)
Electrical Travel 220°
Environment Characteristics Weld Heat Resistance 250℃, 10 Secs.
Rated Power(300 volts max.) 70℃, 0.5W; 125℃, 0W
Temperature Range -55°C ~ + 125°C
Temperature Coefficient ±250, ±100 ppm /°C
Temperature Variation ΔR≤±3%R, Δ(Uab/Uac)≤±1%
Collision 20G, ΔR≤±1%R, Δ(Uab/Uac)≤±1%
Vibration 100G, ΔR≤±1%R, Δ(Uab/Uac)≤±2%
Electrical Endurance At 70°C 1000 hours @ 70℃ Rated Power; ΔR≤±3%R
Rotational Life 200 Cycles, ΔR≤±3%R
Physical Characteristics Total Mechanical Travel 250°
Starting Torque ≤25 mN.m
Clutch Torque ≤35 mN.m

Dimension

Dimensions in mm, tolerances ±0.30 mm unless otherwise specified.

3323P 103 10K RoHS Single Turn Variable Resistor Trimmer Potentiometer

Packaging

Packaging Specification: 50 pieces/tube, 5000 pieces/carton.

Application

■ Audio equipment.
■ Consumer electronics.
■ Industrial controls.
■ Robotics and automation.
■ Power supplies.
■ Measurement and testing instruments.
■ Automotive electronics.
■ Telecommunications.

Advantage

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM & ODM available.
