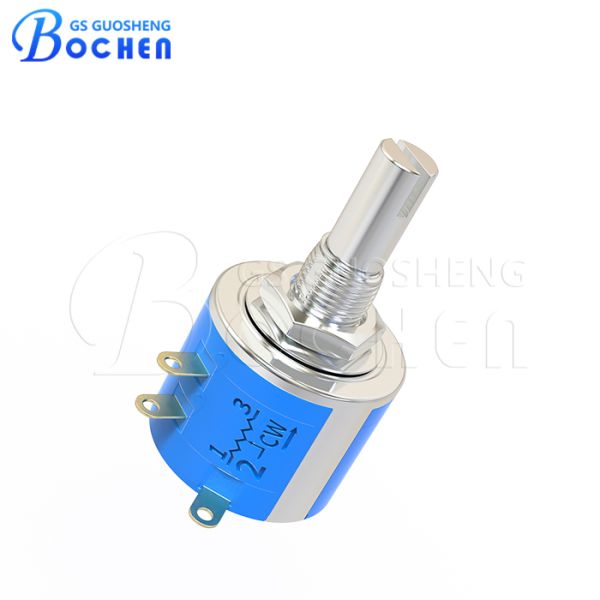

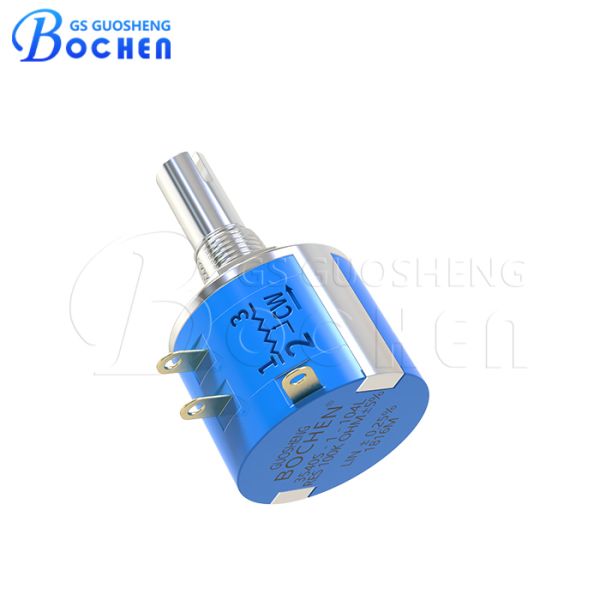

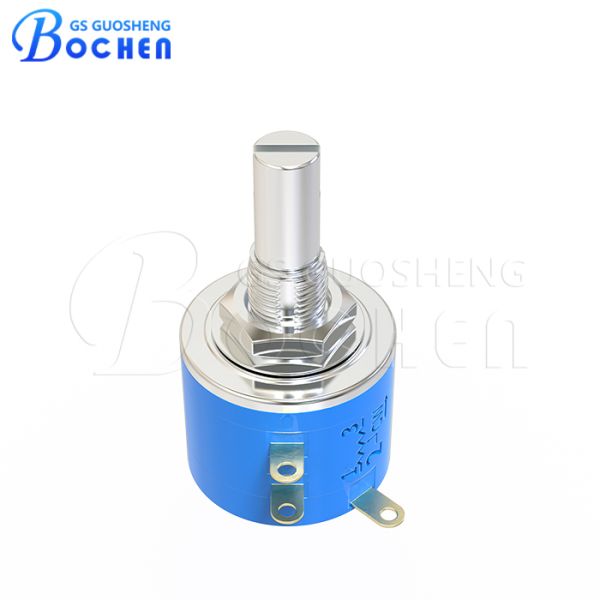

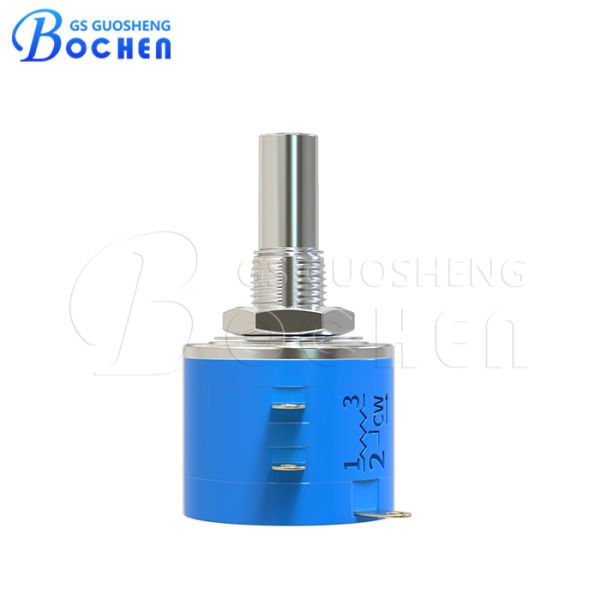

Rotary Wirewound Potentiometer 10k Ohm
Rotary Wirewound Potentiometer 10k Ohm
Rotary Wirewound Potentiometer 10k Ohm
Rotary Wirewound Potentiometer 10k Ohm
Rotary Wirewound Potentiometer 10k Ohm
Rotary Wirewound Potentiometer 10k Ohm
Rotary Wirewound Potentiometer 10k Ohm
Rotary Wirewound Potentiometer 10k Ohm
Rotary Wirewound Potentiometer 10k Ohm
Rotary Wirewound Potentiometer 10k Ohm
Specifications
Brand Name :
BOCHEN
Model Number :
3540S-1-103L
Certification :
RoHS, Reach
Place of Origin :
Chengdu
MOQ :
100 Pieces
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
3,000,000 Pieces Per Month
Delivery Time :
1-7 Workdays
Packaging Details :
20pcs/box; 50pcs/box.
Price :
$0.98 - $1.80/Piece
Product Name :
3540S-1-103L 10k Ohms Variable Resistor Rotary Precision Wirewound Potentiometer
Product Type :
Precision Potentiometer
Element Type :
Wirewound
Shaft Type :
Slotted
Mounting Style :
Panel Mount
Nominal Resistance :
10k ohms
Resistance Tolerance :
±5%
Independent Linearity :
±0.25%
Effective Electrical Travel :
≥3600°-10°
Total Mechanical Travel :
3600°±10°
Description

3540S-1-103L 10k Ohms Variable Resistor Rotary Precision Wirewound Potentiometer

Quick Detail:

• Lead-free.

• Shaft sizes can be customised.

• Nominal resistance 10k ohms.

• Power rating 2W at 70℃.

• Resistance tolerance 5%.

• Independent linearity 0.25%.

• High precision rotary wirewound potentiometer.

• 10 turns wirewound, customised 3 turns, 5 turns available.

• Actual electrical travel ≥3600°-10°, total mechanical travel 3600°±10°.

Description:

The 3540S-1-103L is a lead-free, high precision rotary wirewound potentiometer designed for applications demanding accurate resistance control. It features a 10-turn wirewound mechanism and offers a nominal resistance of 10k ohms with a tolerance of 5%. The potentiometer is capable of handling a power rating of 2W at 70℃, making it suitable for various demanding environments. With an independent linearity of 0.25%, it ensures precise adjustments. The actual electrical travel is greater than or equal to 3600°-10°, while the total mechanical travel is 3600°±10°, providing extensive adjustment capabilities. Additionally, the shaft sizes can be customized to meet specific requirements, enhancing its versatility and reliability in precision applications.

Specification:

Electrical Characteristics Standard Resistance Range 100Ω-100KΩ
Resistance Tolerance ±5%
Independent Linearity ±0.25%
Effective Electrical Travel ≥3600°-10°
Terminal Resistance ≤0.2%R or 5Ω
Noise ≤3%R or 3Ω
Insulation Resistance R≥1GΩ
Withstand Voltage 101.3kPa 710V, 8.5kPa 470V
Environment Characteristics Rated Power 2W@+70℃, 0W@+125℃
Operating Temperature Range -55℃~+125℃
Temperature Coefficient ±100ppm/℃
Temperature Variation ΔR≤2%R, Δ(Uab/Uac)≤±1%
Vibration 390m/s2, 4000cycles, R≤±1%R
Collision 10-500Hz, 0.75mm, or 98m/s2 , 6hΔR≤土1%R. Δ(Uab/Uac)≤±2%
Climate Category ΔR≤±3%R, R1≥100MΩ
Electrical Endurance At 70°C 2W, 1000h, ΔR≤±3%R
Rotational Life 10000 cycles, ΔR≤±3%R
Steady Damp Heat ΔR≤±3%R, R1≥100MΩ
Physical Characteristics Total Mechanical Travel 3600°±10°
Starting Torque ≤36mN·m
Clutch Torque ≤300mN·m

Dimension:

Rotary Wirewound Potentiometer 10k OhmRotary Wirewound Potentiometer 10k Ohm

Packaging:

Packaging specification: 20 pieces/box, 50 pieces/box.

Applications:


• Pedal position.
• Joystick controls.
• Valve control.
• Wind vane.
• Panel control.
• Test and measurement.
• Medical equipment.
• Angular position.

Advantage:

• Factory direct supply, no middlemen.
• Completed certificates such as RoHS, REACH, etc and best quality assurance.
• Sufficient production capacity, short delivery time.
• Professional after-sales service team.
• OEM&ODM available.
