RI80 30W-500W High Power High Voltage Thick Film Non Inductive Resistor
RI80 30W-500W High Power High Voltage Thick Film Non Inductive Resistor
RI80 30W-500W High Power High Voltage Thick Film Non Inductive Resistor
RI80 30W-500W High Power High Voltage Thick Film Non Inductive Resistor
RI80 30W-500W High Power High Voltage Thick Film Non Inductive Resistor
RI80 30W-500W High Power High Voltage Thick Film Non Inductive Resistor
RI80 30W-500W High Power High Voltage Thick Film Non Inductive Resistor
RI80 30W-500W High Power High Voltage Thick Film Non Inductive Resistor
RI80 30W-500W High Power High Voltage Thick Film Non Inductive Resistor
RI80 30W-500W High Power High Voltage Thick Film Non Inductive Resistor

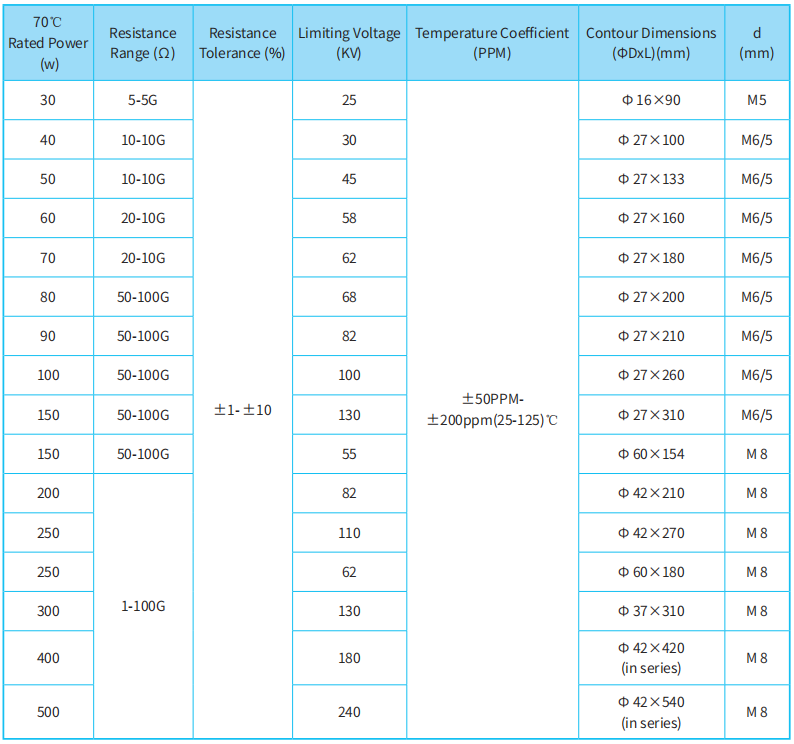

Specifications
Description

Description


  • Film materials: Metal Glaze.
  • Film: All covered or part covered.
  • Core: ceramic rod(Al203 content over 95%).
  • Coating materials: low temperature vitreous enamel.
  • Power Range:5W-25WResistance range: 100 0hm-100G Ohm.
  • Resistance tolerance:+1%-+10%.
  • Resistance temperature coefcient: +25PPM-+200ppm.
  • Specialty: Good overload and high voltage performance;High resistance and low inductance; can be widely usedin high voltage load, voltage divider circuit.
  • Special Requirements: Negotiate meet.

RI80 30W-500W High Power High Voltage Thick Film Non Inductive ResistorRI80 30W-500W High Power High Voltage Thick Film Non Inductive Resistor


Features


  • Non Inductive Design
  • Thick Film Technology
  • Low TCR
  • High Voltage to 200KV

RI80 30W-500W High Power High Voltage Thick Film Non Inductive Resistor

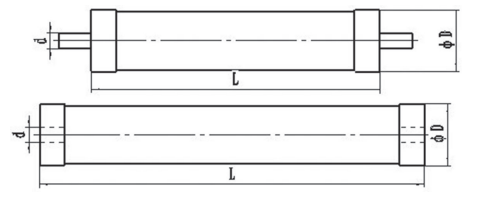

Dimension


RI80 30W-500W High Power High Voltage Thick Film Non Inductive Resistor

RI80 30W-500W High Power High Voltage Thick Film Non Inductive Resistor

RI80 30W-500W High Power High Voltage Thick Film Non Inductive Resistor

Application


Mainly used in high voltage dividers, high voltage measurement, aging test equipment, electronic loads, high voltage inverters and high voltage soft starters; electrostatic dust removal equipment; high voltage power supplies.
