200T Pressure High Automatic Perforating Machine for Max. 20mm Thickness Building Boards Hole Drilling Machine
200T Pressure High Automatic Perforating Machine for Max. 20mm Thickness Building Boards Hole Drilling Machine
200T Pressure High Automatic Perforating Machine for Max. 20mm Thickness Building Boards Hole Drilling Machine
200T Pressure High Automatic Perforating Machine for Max. 20mm Thickness Building Boards Hole Drilling Machine
200T Pressure High Automatic Perforating Machine for Max. 20mm Thickness Building Boards Hole Drilling Machine
200T Pressure High Automatic Perforating Machine for Max. 20mm Thickness Building Boards Hole Drilling Machine
200T Pressure High Automatic Perforating Machine for Max. 20mm Thickness Building Boards Hole Drilling Machine
200T Pressure High Automatic Perforating Machine for Max. 20mm Thickness Building Boards Hole Drilling Machine
Specifications
Brand Name :
LVJOE
Model Number :
LV-CK01
Certification :
ISO CE SGS
Place of Origin :
China
MOQ :
1 set
Price :
US $20000-80000
Payment Terms :
T/T,L/C
Supply Ability :
50 sets per year
Delivery Time :
30 days
Packaging Details :
PE film wrapped
Product Name :
Perforating Machine For Building Boards Cement Fiber Board Hole Drilling Machine
Keyword :
gypsum board punching equipment
Pressure :
80T, 160T, 200T
Usage :
Gypsum Board, MDF, HPL, Fiber cement board perforation
Holes :
Round, Square
Automatic level :
high automatic
thickness :
max. 20mm
Host power :
18KW
Description
Perforating Machine For Building Boards Cement Fiber Board Hole Drilling Machine
Product Specifications
Attribute Value
Pressure 80T, 160T, 200T
Usage Gypsum Board, MDF, HPL, Fiber cement board perforation
Holes Round, Square
Automatic level High automatic
Thickness Max. 20mm
Technical Specifications
  • Punching pressure: 200 ton
  • Stroke: 30 mm
  • Max mold height closed: 260mm
  • Number of strokes: 50 times/minute
  • Slide surface: 210*1100mm
  • Working table: 300*1670mm
  • Spacing of both pole: 1350mm (load the max board width 1220mm)
  • Power of main motor: 22kw
  • Power of servo motor: 2.6kw (brand: Zhejiang yifeng)
  • Feeding accuracy: ±1mm
  • Maximum feeding rate: 100mm
  • Maximum feeding thickness: 20mm
  • Gross weight of machine: 11000kg
  • Overall dimension: 2300*1500*2300(H*L*W)
Applications

This perforation machine is designed for creating precise holes in various materials including gypsum ceiling board, MgO board, MDF, HPL, Fiber cement board, and metal sheets. Custom hole shapes are available to meet specific requirements. Comprehensive operational training is provided.

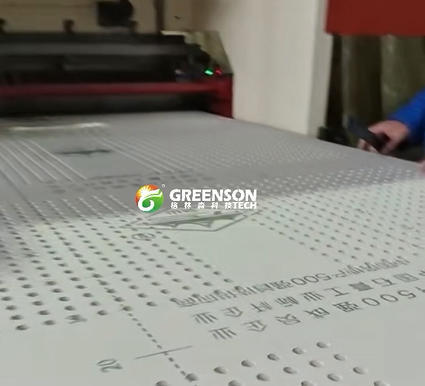

Finished Product Example

200T Pressure High Automatic Perforating Machine for Max. 20mm Thickness Building Boards Hole Drilling Machine
