Specifications
Brand Name :
LVJOE
Model Number :
1300FM
Certification :
ISO CE
Place of Origin :
Hebei，China(Mainland)
MOQ :
1 line
Price :
US $20000-200000
Payment Terms :
L/C,T/T
Supply Ability :
10 lines per Year
Delivery Time :
2 Months
Packaging Details :
Standard packing
Product Name :
High Output PVC Film Laminating Machine For Gypsum Ceiling Board Production
keyword :
Stable quality low cost PVC gypsum board laminating production line for sale
Finished board type :
PVC laminated gypsum board
Effective laminating :
1300mm
Production Capacity :
2-6 million Sq.m/year
Speed :
2-15m/min (adjustable)
After-sales Service :
Engineers available to service
Warranty :
1 year
Glue type :
Water Glue for PVC film
Laminating type :
Single+Double Sides
Description
High Output PVC Film Laminating Machine For Gypsum Ceiling Board Production

Product Specifications
Finished board type PVC laminated gypsum board
Effective laminating 1300mm
Production Capacity 2-6 million Sq.m/year
Speed 2-15m/min (adjustable)
After-sales Service Engineers available to service
Warranty 1 year
Glue type Water Glue for PVC film
Laminating type Single+Double Sides

Product Overview

This automatic gypsum board lamination machine applies fiber glass, paper, PVC film and aluminum foil to gypsum boards, creating finished products suitable for ceiling tiles and partition wall panels.

Production Process
  • Automatic feeding
  • Dust cleaning
  • PVC film and aluminum foil laminating
  • Film cutting (manual/automatic)
  • Conveying
  • Vertical cutting with dust collection
  • Horizontal cutting with dust collection
  • Small board stacking
  • Edge sealing
  • Stretch packing
  • Finished products stacking

Key Components

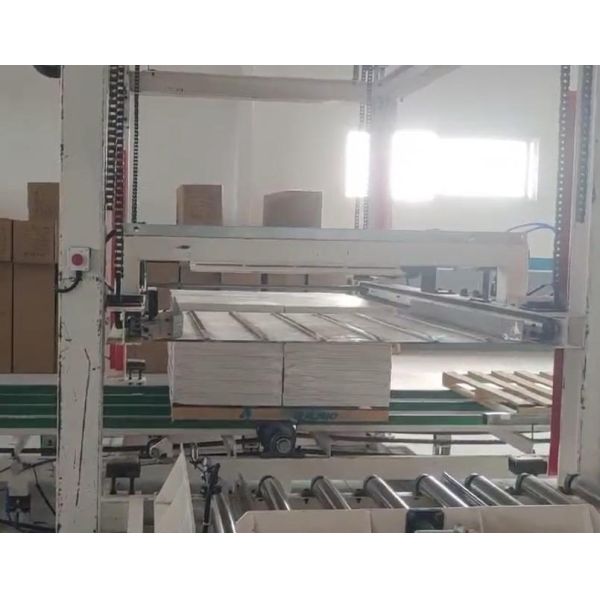

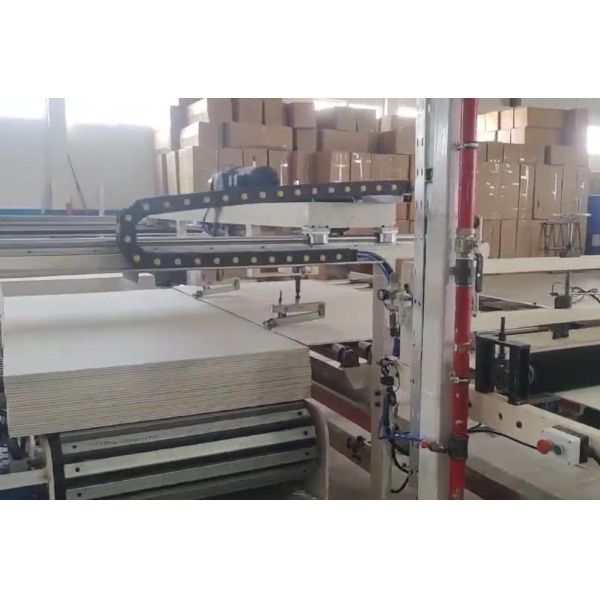

1. Automatic Gypsum Board Feeding Machine

The cylinder pushes gypsum boards from the stack lift platform to the conveyor roll for PVC and aluminum film lamination.

  • Max. Load-bearing: 3000kg
  • Stroke: 1500mm
  • Min. Height: 620mm
  • Max. Height: 2000mm
  • Platform size: 1200*2400mm
2. Double Sided Laminating Machine
  • Effective lamination width: ≤ 1300mm
  • Thickness of sheet: 5-30mm
  • Lamination speed: 3-15m/min
  • Board feeding and releasing mode: automatic

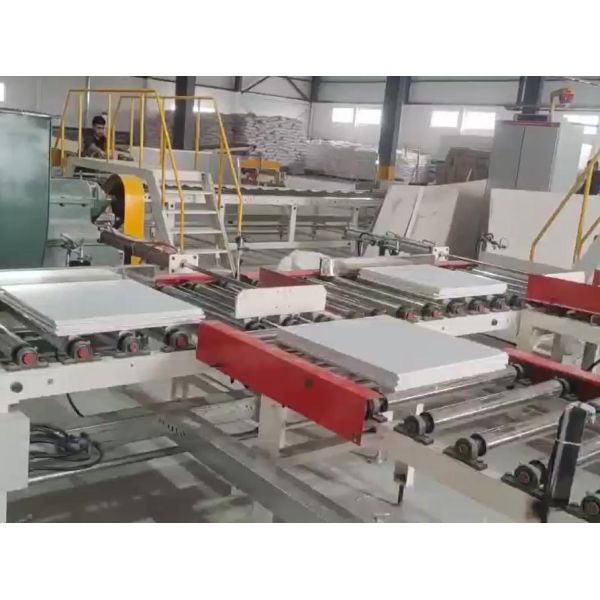

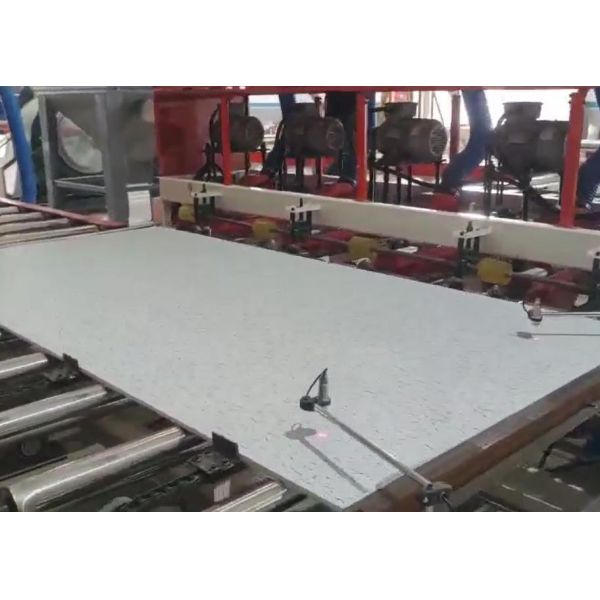

3. Automatic Cutting Machine

Includes vertical/longitudinal cutting and horizontal cutting systems with dust collector.

  • Cuts 1.2*2.4m boards to 603*603mm/595*595mm
  • Cutting speed: 15m/min
  • Cutting knives: vertical - 3 blades; horizontal - 5 blades
  • Overall power: 17.15KW

Technical Parameters
Sheet thickness 5-30mm
Speed adjustment Frequency conversion synchronous speed regulating
Annual capacity 2-6 million Sq.m
Film material PVC film, aluminum foils, decorative material
Board sheet material PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
Stacking mode 10 layers (4 packages/layer)
Cutting mode Lengthways: 3 blades, horizontal: 5 blades
Overall dimension Length: 56000mm, width: 9200mm
Lamination mode Double side: laminate front and back simultaneously
Single side: laminate one side at a time
