Cost-effective 2x2 Drop Ceiling Tile Gypsum Ceiling Tile Making Machine with 15m/min Adjustable Speed
Cost-effective 2x2 Drop Ceiling Tile Gypsum Ceiling Tile Making Machine with 15m/min Adjustable Speed
Cost-effective 2x2 Drop Ceiling Tile Gypsum Ceiling Tile Making Machine with 15m/min Adjustable Speed
Cost-effective 2x2 Drop Ceiling Tile Gypsum Ceiling Tile Making Machine with 15m/min Adjustable Speed
Cost-effective 2x2 Drop Ceiling Tile Gypsum Ceiling Tile Making Machine with 15m/min Adjustable Speed
Cost-effective 2x2 Drop Ceiling Tile Gypsum Ceiling Tile Making Machine with 15m/min Adjustable Speed
Cost-effective 2x2 Drop Ceiling Tile Gypsum Ceiling Tile Making Machine with 15m/min Adjustable Speed
Cost-effective 2x2 Drop Ceiling Tile Gypsum Ceiling Tile Making Machine with 15m/min Adjustable Speed
Specifications
Brand Name :
Lvjoe
Model Number :
LV-1300SFM
Certification :
ISO, CE, SGS
Place of Origin :
China
MOQ :
1 set
Price :
US $20000-200000
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
10 plants per year
Delivery Time :
30-50 work days
Packaging Details :
PE film wrapped
Product Name :
Cost-effective Gypsum 2x2 Drop Ceiling Tile Making Machine
Keyword :
pvc laminated gypsum board machine
Raw material :
gypsum board, PVC film, aluminum foil, glue, tape
Speed :
15m/minutes, adjustable
Usage :
ceiling tile, partition wall panel
Finished Products Size :
595*595， 603*603， 1200*600mm
Service :
engineer available to service machine overseas
Warranty :
1 year
Description
Cost-effective Gypsum 2x2 Drop Ceiling Tile Making Machine

Product Specifications
Attribute Value
Raw material gypsum board, PVC film, aluminum foil, glue, tape
Speed 15m/minutes, adjustable
Usage ceiling tile, partition wall panel
Finished Products Size 595*595, 603*603, 1200*600mm
Service engineer available to service machine overseas
Warranty 1 year
Product Overview

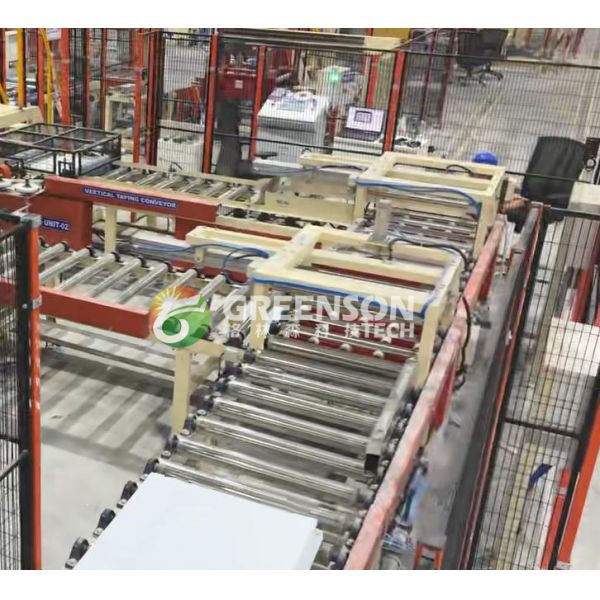

The Automatic 2 million sqm capacity Vinyl Gypsum Ceiling Tiles Lamination Machine is designed for efficient production of PVC laminated gypsum ceiling tiles. The complete production line includes lamination machine, cutting machine, edge sealing machine, and packing machine, which can be supplied individually or as a complete system.

Key Features
  • Production Capacity: 833 m²/hour with adjustable speed
  • Finished Product Sizes: 595×595mm, 603×603mm, 1200×600mm
  • Thickness Options: 7.0mm, 7.5mm, 8.0mm, 8.5mm, 9.0mm
  • Customizable system configuration based on production requirements
Applications

The finished PVC laminated gypsum ceiling tiles are ideal for interior decoration applications including:

  • Ceiling systems
  • Partition walls

Available in various PVC patterns and colors (white and colored options), these tiles combine aesthetic appeal with easy maintenance.

Finished Product Example

Cost-effective 2x2 Drop Ceiling Tile Gypsum Ceiling Tile Making Machine with 15m/min Adjustable Speed
