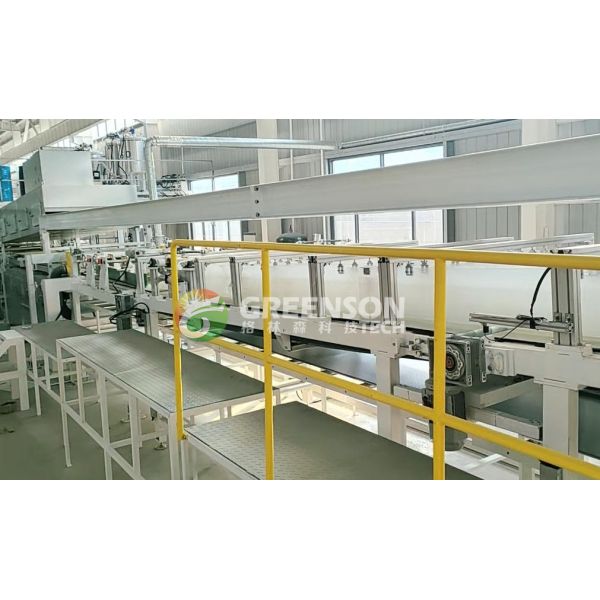

Fully Automatic High Accuracy PU Edge Rock Wool Sandwich Panel Production Line With 380V 50Hz 3phases
Fully Automatic High Accuracy PU Edge Rock Wool Sandwich Panel Production Line With 380V 50Hz 3phases
Fully Automatic High Accuracy PU Edge Rock Wool Sandwich Panel Production Line With 380V 50Hz 3phases
Fully Automatic High Accuracy PU Edge Rock Wool Sandwich Panel Production Line With 380V 50Hz 3phases
Fully Automatic High Accuracy PU Edge Rock Wool Sandwich Panel Production Line With 380V 50Hz 3phases
Fully Automatic High Accuracy PU Edge Rock Wool Sandwich Panel Production Line With 380V 50Hz 3phases
Fully Automatic High Accuracy PU Edge Rock Wool Sandwich Panel Production Line With 380V 50Hz 3phases
Fully Automatic High Accuracy PU Edge Rock Wool Sandwich Panel Production Line With 380V 50Hz 3phases
Specifications
Brand Name :
Greenson
Place of Origin :
HEBEI
MOQ :
1
Price :
$700000-$800000
Payment Terms :
L/C,T/T
Delivery Time :
150days
Product Name :
High-Accuracy Fully Automatic Engine-Driven PU Edge Rock-wool Sandwich Panel For Construction
Keyword :
PU Edge Rock-wool Sandwich Panel for Construction with Double Belt System
Color :
Customer's Requirement
Feature :
Full-Automatic
Packaging Details :
Plastic film
Port of dispatch :
Tianjin
Core Components :
PLC, Engine, Bearing, Motor, Pump
Key Selling Points :
Easy To Operate
Application :
roof and wall
Voltage :
380V 50Hz 3phases(changeable as needs)
Description
High-Accuracy Fully Automatic Engine-Driven PU Edge Rock-wool Sandwich Panel For Construction
Product Overview

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Using a PLC numerical control system and a human-machine interface, the entire process of loading, gluing, laminating, pressing, cutting to length, and finished product palletizing is automated. It flexibly adapts to multi-specification and multi-core material production, offering high precision, low waste, minimal labor, stable operation, and low failure rates.

The entire line has a compact layout, is energy-saving and noise-reducing, and can quickly mass-produce high-quality composite boards, sandwich panels, and integrated insulation and decorative panels. It comprehensively enhances production capacity and product competitiveness, making it an optimal choice of equipment for construction material enterprises seeking expansion and upgrading.

Production Process
  • Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
  • Precision low-speed metering pump with computer-controlled frequency regulation
  • Accurate dosing and stepless speed adjustment capabilities
Product Capabilities
  • Produces various flat and corrugated sheet types
  • Sandwich panels: thickness 40-300 mm, width 950-1200 mm
  • High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
  • Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials
Technical Specifications
Material Type Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness 0.3-0.8 mm
Material Width ≤1250 Mpa
Suitable Panel Length 2000-18000 mm
Suitable Panel Width 500-1200 mm
Suitable Panel Thickness 30-250 mm (excluding corrugation height)
Production Speed 3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor 12000-42000 mm
Work Pressure on Pouring Foam 150-200 Bar
Total Power 660 kW / 300 kW
Total Dimensions 130000 × 15000 × 6000 mm (Length × Width × Height)
