Specifications
Brand Name :
Greenson
Place of Origin :
Hebei, China
MOQ :
1
Price :
$700000-$800000
Payment Terms :
L/C,T/T
Delivery Time :
150days
Product Name :
Continuous Polyurethane PIR PU Sandwich Panel Machine Production Line
Keyword :
Discontinuous & Continuous PU Forming Sandwich Panel Production Line
Color :
Customer's Requirement
Packaging Details :
Plastic film
Port of dispatch :
Tianjin
Core Components :
Motor, Bearing
Facial Layer Material :
Pre-painted Galvanized Steel (PPGI) / Al-Zn Coated Steel
Substrate Thickness :
0.3mm - 0.8mm
Description
Continuous Polyurethane PIR PU Sandwich Panel Machine Production Line
Product Overview

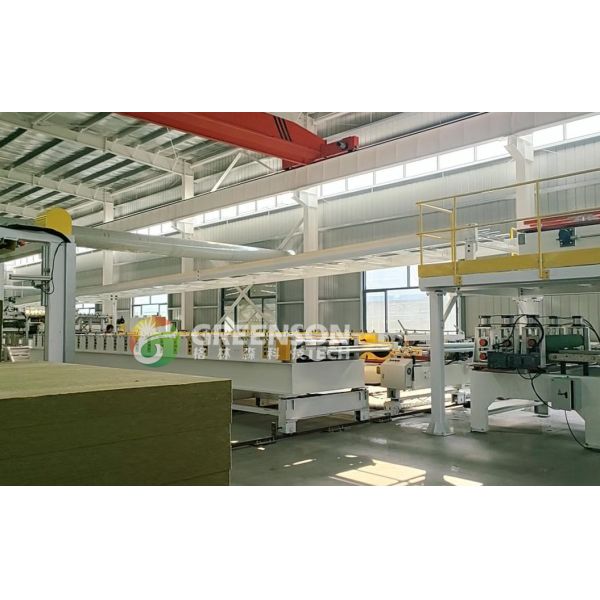

This production line is engineered for the continuous manufacturing of rock wool (mineral wool) sandwich panels, primarily utilized in industrial construction requiring stringent fire-safety ratings. The system integrates decoiling, cold-roll forming, rock wool strip flipping, automated adhesive application, and high-temperature curing to ensure structural integrity and thermal consistency across large-scale production runs.

  • Fully Automatic: Effortlessly produces high-quality sandwich panels
  • High Capacity: Handles large-scale production with efficiency
  • Variable Speed: Adjusts to match production needs for optimal output
  • Multiple Material Options: Suitable for color steel sheets, galvanized sheets, and aluminum sheets
  • Guaranteed Quality: Equipped with video factory inspection and mechanical test reports
Production Process
  • Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
  • Precision low-speed metering pump with computer-controlled frequency regulation
  • Accurate dosing and stepless speed adjustment capabilities
Product Capabilities
  • Produces various flat and corrugated sheet types
  • Sandwich panels: thickness 40-300 mm, width 950-1200 mm
  • High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
  • Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials
Technical Specifications
Material Type Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness 0.3-0.8 mm
Material Width ≤1250 mm
Suitable Panel Length 2000-18000 mm
Suitable Panel Width 500-1200 mm
Suitable Panel Thickness 30-250 mm (excluding corrugation height)
Production Speed 3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor 12000-42000 mm
Work Pressure on Pouring Foam 150-200 Bar
Total Power 660 kW / 300 kW
Total Dimensions 130000 × 15000 × 6000 mm (Length × Width × Height)
