Fully Automatic High Capacity Variable Speed PIR Polyurethane Sheet Production Line For Sandwich Panel Making
Fully Automatic High Capacity Variable Speed PIR Polyurethane Sheet Production Line For Sandwich Panel Making
Fully Automatic High Capacity Variable Speed PIR Polyurethane Sheet Production Line For Sandwich Panel Making
Fully Automatic High Capacity Variable Speed PIR Polyurethane Sheet Production Line For Sandwich Panel Making
Fully Automatic High Capacity Variable Speed PIR Polyurethane Sheet Production Line For Sandwich Panel Making
Fully Automatic High Capacity Variable Speed PIR Polyurethane Sheet Production Line For Sandwich Panel Making
Fully Automatic High Capacity Variable Speed PIR Polyurethane Sheet Production Line For Sandwich Panel Making
Fully Automatic High Capacity Variable Speed PIR Polyurethane Sheet Production Line For Sandwich Panel Making
Specifications
Brand Name :
Greenson
Place of Origin :
Hebei, China
MOQ :
1
Price :
$700000-$800000
Payment Terms :
L/C,T/T
Delivery Time :
150days
Product Name :
Automatic Continuous PIR Polyurethane Sheet Making Production Line For Roof And Wall
Keyword :
Insulation Full Automated Polyurethane Roof Wall Sandwich Panel Making Machine
Application :
Building
Color :
Customer's Requirement
OEM :
Yes
Feature :
Full-Automatic
Packaging Details :
Plastic film
Port of dispatch :
Tianjin
Warranty :
1 Year
Description
Automatic Continuous PIR Polyurethane Sheet Making Production Line For Roof And Wall
Product Overview

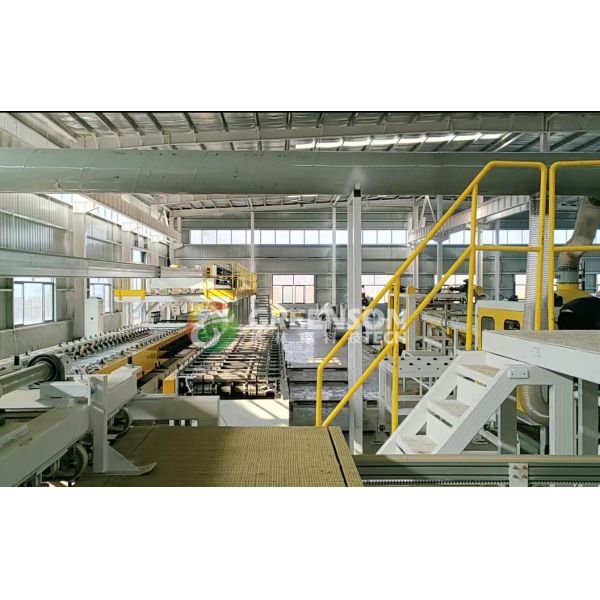

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

  • Fully Automatic: Effortlessly produces high-quality sandwich panels
  • High Capacity: Handles large-scale production with efficiency
  • Variable Speed: Adjusts to match production needs for optimal output
  • Multiple Material Options: Suitable for color steel sheets, galvanized sheets, and aluminum sheets
  • Guaranteed Quality: Equipped with video factory inspection and mechanical test reports
Production Process
  • Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
  • Precision low-speed metering pump with computer-controlled frequency regulation
  • Accurate dosing and stepless speed adjustment capabilities
Product Capabilities
  • Produces various flat and corrugated sheet types
  • Sandwich panels: thickness 40-300 mm, width 950-1200 mm
  • High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
  • Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials
Technical Specifications
Material Type Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness 0.3-0.8 mm
Material Width ≤1250 Mpa
Suitable Panel Length 2000-18000 mm
Suitable Panel Width 500-1200 mm
Suitable Panel Thickness 30-250 mm (excluding corrugation height)
Production Speed 3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor 12000-42000 mm
Work Pressure on Pouring Foam 150-200 Bar
Total Power 660 kW / 300 kW
Total Dimensions 130000 * 15000 * 6000 mm (Length * Width * Height)
