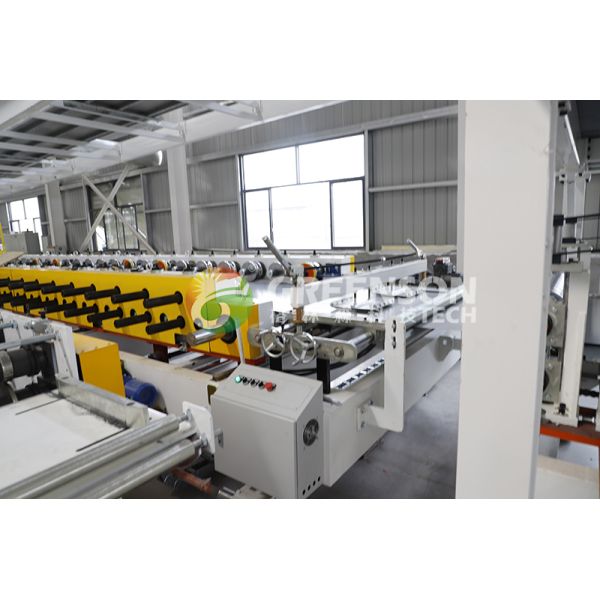

Fully Automatic PU PIR Sandwich Panel Production Line For 40-300 Mm Thickness And 950-1200 Mm Width
Fully Automatic PU PIR Sandwich Panel Production Line For 40-300 Mm Thickness And 950-1200 Mm Width
Fully Automatic PU PIR Sandwich Panel Production Line For 40-300 Mm Thickness And 950-1200 Mm Width
Fully Automatic PU PIR Sandwich Panel Production Line For 40-300 Mm Thickness And 950-1200 Mm Width
Fully Automatic PU PIR Sandwich Panel Production Line For 40-300 Mm Thickness And 950-1200 Mm Width
Fully Automatic PU PIR Sandwich Panel Production Line For 40-300 Mm Thickness And 950-1200 Mm Width
Fully Automatic PU PIR Sandwich Panel Production Line For 40-300 Mm Thickness And 950-1200 Mm Width
Fully Automatic PU PIR Sandwich Panel Production Line For 40-300 Mm Thickness And 950-1200 Mm Width
Specifications
Brand Name :
Greenson
Place of Origin :
HEBEI
MOQ :
1
Price :
$790000
Payment Terms :
L/C,T/T
Delivery Time :
150days
Product Name :
Manufacturer Sales Fully Automatic PU PIR Sandwich Panel Production Line For Cold Rooms
Keyword :
PU Rock Wool Sandwich Panel Machine Production Line
Color :
Customer's Requirement
Feature :
Full-Automatic
Packaging Details :
Plastic film
Port of dispatch :
Tianjin
Core Components :
PLC, Engine, Bearing, Motor, Pump
Key Selling Points :
Easy To Operate
Application :
roof and wall
Voltage :
380V 50Hz 3phases(changeable as needs)
Description
Manufacturer Sales Fully Automatic PU PIR Sandwich Panel Production Line For Cold Rooms
Product Overview

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Production Process
  • Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
  • Precision low-speed metering pump with computer-controlled frequency regulation
  • Accurate dosing and stepless speed adjustment capabilities
Product Capabilities
  • Produces various flat and corrugated sheet types
  • Sandwich panels: thickness 40-300 mm, width 950-1200 mm
  • High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
  • Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials
Technical Specifications
Material Type Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness 0.3-0.8 mm
Material Width ≤1250 Mpa
Suitable Panel Length 2000-18000 mm
Suitable Panel Width 500-1200 mm
Suitable Panel Thickness 30-250 mm (excluding corrugation height)
Production Speed 3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor 12000-42000 mm
Work Pressure on Pouring Foam 150-200 Bar
Total Power 660 kW / 300 kW
Total Dimensions 130000 × 15000 × 6000 mm (Length × Width × Height)
