Fully Automatic Gypsum Board Laminating Machine with 1300mm Laminate Width Adjustable Speed and 1 Year Warranty
Fully Automatic Gypsum Board Laminating Machine with 1300mm Laminate Width Adjustable Speed and 1 Year Warranty
Fully Automatic Gypsum Board Laminating Machine with 1300mm Laminate Width Adjustable Speed and 1 Year Warranty
Fully Automatic Gypsum Board Laminating Machine with 1300mm Laminate Width Adjustable Speed and 1 Year Warranty
Fully Automatic Gypsum Board Laminating Machine with 1300mm Laminate Width Adjustable Speed and 1 Year Warranty
Fully Automatic Gypsum Board Laminating Machine with 1300mm Laminate Width Adjustable Speed and 1 Year Warranty
Fully Automatic Gypsum Board Laminating Machine with 1300mm Laminate Width Adjustable Speed and 1 Year Warranty
Fully Automatic Gypsum Board Laminating Machine with 1300mm Laminate Width Adjustable Speed and 1 Year Warranty
Specifications
Brand Name :
Greens
Model Number :
LV-1300SFM
Certification :
ISO, CE, SGS
Place of Origin :
China
MOQ :
1 set
Price :
US $20000-200000
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
10 plants per year
Delivery Time :
30-50 work days
Packaging Details :
PE film wrapped
Product Name :
Automatic Double-side Ceiling Laminating Machine Paper Faced Gypsum Board Laminating Machine
Keyword :
gypsum board coating machine
Material :
gypsum board, PVC film, Aluminum Foil, Glue
Condition :
Brand new
Final Products :
PVC gypsum ceiling tile
Size :
595*595， 603*603， 1200*600mm
Speed :
15m/min
Warranty :
1 year
Description
Automatic Double-side Ceiling Laminating Machine Paper Faced Gypsum Board Laminating Machine
Product Specifications
Attribute Value
Material gypsum board, PVC film, Aluminum Foil, Glue
Condition Brand new
Final Products PVC gypsum ceiling tile
Size 595*595, 603*603, 1200*600mm
Speed 15m/min
Warranty 1 year
Product Overview

This PLC controlled laminating machine is designed for producing high-quality PVC laminated gypsum ceiling tiles. The complete production line can include lamination, cutting, edge sealing, and packing machines, which can be supplied individually or as an integrated system customized to your requirements.

Finished Product Sizes

Available in standard dimensions: 595×595mm, 603×603mm, and 1200×600mm.

Key Features
  • Laminate width: 1300mm
  • Gypsum board size: 1220×2400mm
  • Special adhesive: Formulated specifically for PVC film and aluminum foil bonding
  • Production speed: Adjustable from 2-15m/min
  • Material thickness capacity: 2-50mm
  • Motor power: 4.5kW (premium brand motor with frequency control)
  • Synchronized operation through chain wheel and chain transmission system
  • Machine dimensions: 12600×1950×1600mm

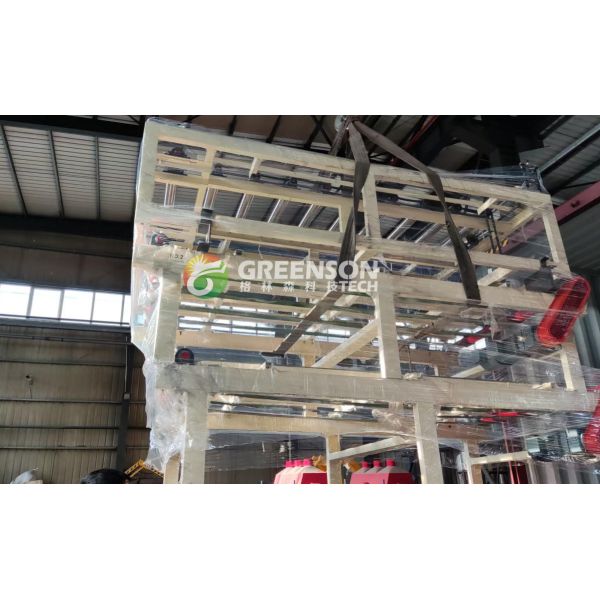

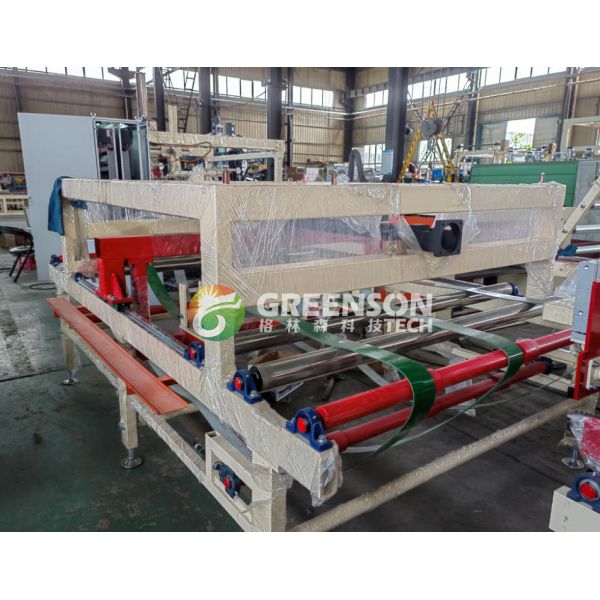

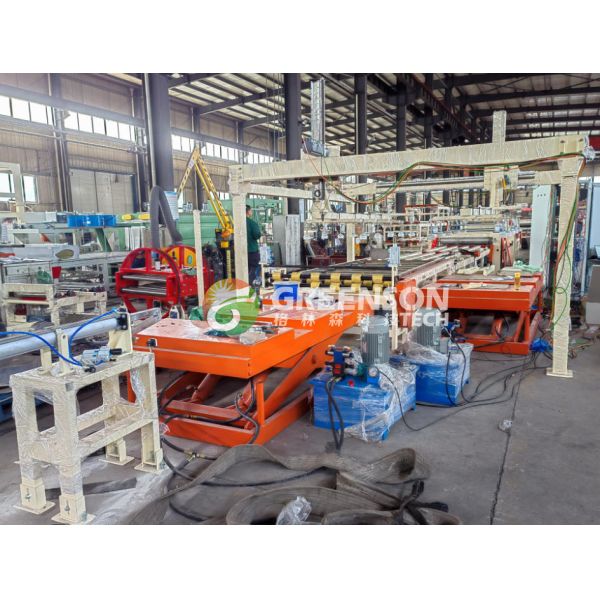

Machine Image

Fully Automatic Gypsum Board Laminating Machine with 1300mm Laminate Width Adjustable Speed and 1 Year Warranty
