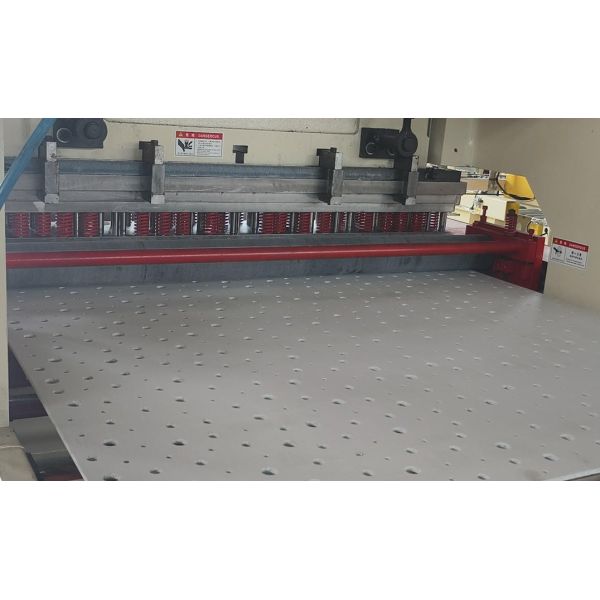

200T Pressure High Automatic Perforating Machine for Max 20mm Thickness Gypsum Board Punching
200T Pressure High Automatic Perforating Machine for Max 20mm Thickness Gypsum Board Punching
200T Pressure High Automatic Perforating Machine for Max 20mm Thickness Gypsum Board Punching
200T Pressure High Automatic Perforating Machine for Max 20mm Thickness Gypsum Board Punching
200T Pressure High Automatic Perforating Machine for Max 20mm Thickness Gypsum Board Punching
200T Pressure High Automatic Perforating Machine for Max 20mm Thickness Gypsum Board Punching
200T Pressure High Automatic Perforating Machine for Max 20mm Thickness Gypsum Board Punching
200T Pressure High Automatic Perforating Machine for Max 20mm Thickness Gypsum Board Punching
Specifications
Brand Name :
LVJOE
Model Number :
LV-CK01
Certification :
ISO CE
Place of Origin :
China
MOQ :
1 set
Price :
US $20000-80000
Supply Ability :
50 sets per year
Delivery Time :
30 days
Packaging Details :
PE film wrapped
Product Name :
Sound Insulation Board Perforating Equipment High Speed Plaster Board Punch Machine
Keyword :
Continuous Production Gypsum Board Perforator
Pressure :
80T, 160T, 200T
Usage :
Gypsum Board, MDF, HPL, Fiber cement board perforation
Holes :
Round, Square
Automatic level :
high automatic
thickness :
max. 20mm
Warranty :
1 Year
Application :
Interior Ceiling and Partition
Feature :
COMMON
Description
Sound Insulation Board Perforating Equipment High Speed Plaster Board Punch Machine
High-performance gypsum board drilling equipment designed for precision perforation in various building materials.
Product Specifications
Pressure 80T, 160T, 200T
Usage Gypsum Board, MDF, HPL, Fiber cement board perforation
Holes Round, Square
Automatic Level High automatic
Thickness Max. 20mm
Technical Specifications
  • Punching pressure: 200 ton
  • Stroke: 30 mm
  • Max mold height closed: 260mm
  • Number of strokes: 50 times/minute
  • Slide surface: 210*1100mm
  • Working table: 300*1670mm
  • Spacing of both pole: 1350mm (load the max board width 1220mm)
  • Power of main motor: 22kw
  • Power of servo motor: 2.6kw (brand: Zhejiang yifeng)
  • Feeding accuracy: ±1mm
  • Maximum feeding rate: 100mm
  • Maximum feeding thickness: 20mm
  • Gross weight of machine: 11000kg
  • Overall dimension: 2300*1500*2300(H*L*W)
Applications
This perforation machine is designed for creating holes in various materials including gypsum ceiling board, MgO board, MDF, HPL, Fiber cement board, and metal sheets. Custom hole shapes are available to meet specific requirements. Comprehensive operational training is provided.
