Turnkey Gypsum Ceiling Tile Manufacturing Plant 2 Million SQM Annual Output With Fully Automatic Production Line
Turnkey Gypsum Ceiling Tile Manufacturing Plant 2 Million SQM Annual Output With Fully Automatic Production Line
Specifications
Delivery Time :
2 Months
Production Capacity :
2-6 million Sq.m/year
Model Number :
LV-1300FM
Keyword :
gypsum ceiling tile manufacturing plant,
MOQ :
1 Line
Packaging Details :
standard package
Power :
30KW to 100KW
Supply Ability :
10 Lines per year
Features :
high automatic
Price :
US $20000-200000
Automatic Grade :
Automatic
Certification :
ISO CE SGS
Weight :
10T
Brand Name :
LVJOE
Product Name :
Turnkey Gypsum Ceiling Tile Manufacturing Plant 2 Million SQM Annual Output With Fully Automatic Production Line
Place of Origin :
Hebei, China (Mainland)
Voltage :
380V, 50HZ
Description
Turnkey Gypsum Ceiling Tile Manufacturing Plant
Complete turnkey solution for gypsum ceiling tile production with 2 million SQM annual output capacity and fully automatic production line.
Product Specifications
Attribute Value
Weight 10T
Voltage 380V, 50HZ
Power 30KW to 100KW
Automatic Grade Automatic
Features High automatic
Production Capacity 2-4 million Sq.m/year
Product Description
Gypsum board lamination machine laminates fiber glass, paper, PVC film and aluminum foil on gypsum board. The finished products are used as ceiling tiles and partition wall panels.
Capacity
7,000-20,000 m² per day
(basis of calculation: L:595mm, T:7mm, W:595mm, weight: 5.5 kg/m², for 7mm board)
Automation
Simple operation with high degree of automation
Main Materials
  • Gypsum board
  • PVC film
  • Aluminum foil
  • Glue for PVC
  • Glue for aluminum
Product Dimensions
Length × Width: 595×595mm, 600×600mm, 603×603mm, 1200×600mm
Thickness: 7.0mm, 7.5mm, 8.0mm, 8.5mm, 9.0mm
Gypsum Ceiling Board Lamination Machine Line
Gypsum board lamination machine laminates fiber glass, paper, PVC film and aluminum foil on gypsum board.
  • Lamination width: 1220mm
  • Gypsum board size: 1220×2440mm
  • Glue: specific glue for PVC film and aluminum foil
  • Max sheet speed: 2/15m/min
  • Thickness of sheet: 2-50mm
  • Motor power: 4.5kw coating and lamination part are driven by chain wheel
Automatic Feeding Machine
Two types available:
  • Push-type

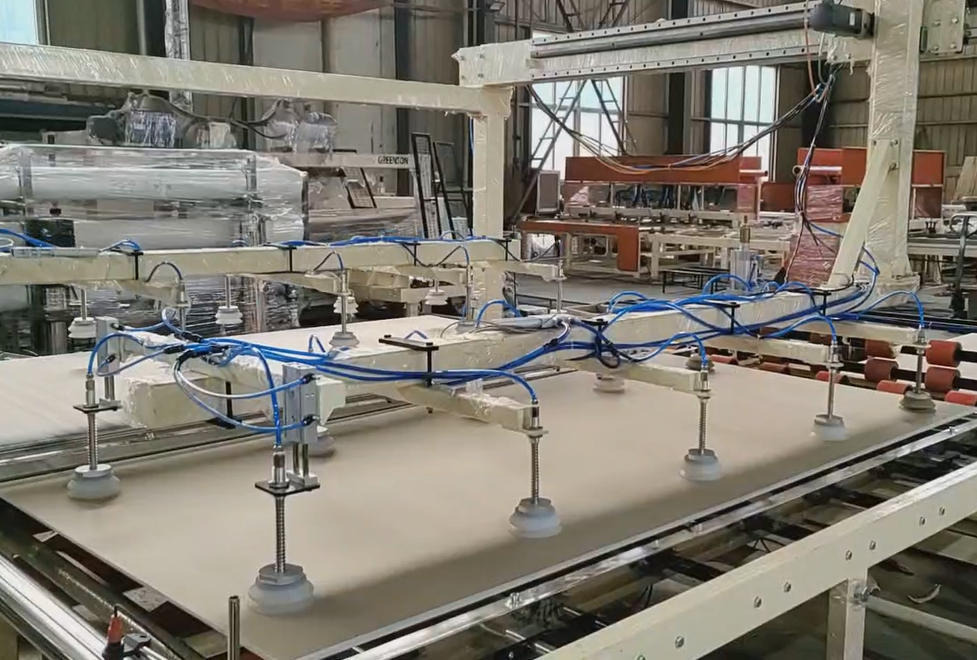

  • Suction-type
Cylinder push with photoelectric control, Max.Cylinder range 700mm. Through push board platform rubber roller rolling transmission to accelerate speed. Features low cost, economic and affordable (compared to suction type), easy operation, and fully automatic feeding.
Automatic Cutting Machine
This machine cuts laminated gypsum boards to size according to saw gauge standard. Process: board is placed on delivery roll, moves to cutting system for first cut, turns to cutting system for second cut through delivery roll, then proceeds to board. Can be configured with pulsed sack-duster as required.
Lamination Machine Technical Parameters
Model LV-1300SFM01 LV-1300SFM02 LV-1300SFM03
Max. Laminating Width 1300mm
Thickness of Sheet 5-30mm
Max. Laminating Speed 15m/min
Speed Regulation Frequency conversion synchronous speed regulating
