Specifications
Brand Name :
LVJOE
Model Number :
1300FM01
Certification :
CE ISO9001
Place of Origin :
Hebei, China (Mainland)
MOQ :
1 Set
Price :
US $20000-200000
Payment Terms :
L/C, T/T
Supply Ability :
50 Sets Per Year
Delivery Time :
60 Days
Packaging Details :
Standard package for export or as per request for PVC and PET film faced gypsum ceiling board making machines.
Features :
Easy To Operate
Weight :
3-30t
Driven Type :
PLC System
Voltage :
380V
Warranty :
1 Year
Dimension(L*W*H) :
12600*1950*1600
Description

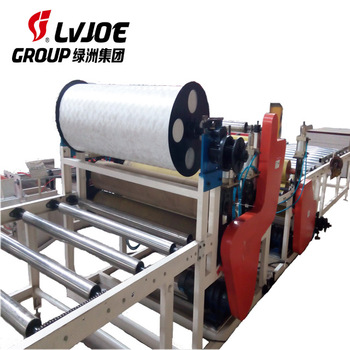

High Capacity Double Sides Oil Resistance Plasterboard Lamination Machine

Production Description

USAGE

Gypsum ceiling board is laminated PVC film in front side and aluminumfilm in back side of paper faced gypsum

board. The features are waterproof, moisture proof, flame resistant, thermal insulation,radiation proof, anti-sagging,

non-deformed, etc.

Technical parameter:

Model LV-130FM01
Max. laminating width 1300mm
Thickness of sheet 5----30mm
Max. Laminating Speed 15m/min
Speed Regulation Frequency conversion synchronous speed regulating
installed power 4kw

7.PVC Gypsum Ceiling Tile Size:

Size(mm) 595*595*8.0
603*603*8.0
600*1200*8.0

Our Services

1. Best Price; we have our own factory, who has been specialized in full automatic pvc laminated gypsum

ceiling tiles machine for more than 15 years, and you are welcome to our factory any time.
2. Superior Quality; quality is the life of all our business.
3. Best Service; we are the special International Trading Company of our factory, and especially focus on

exporting business.
4. Best after-sale service; our engineers will design scale of whole production line and help you with

installation and commissioning, and train your workers or employees until they know how to operate all equipment.

Company Information
HEBEI LVJOE MACHINERY MANUFACTURING CO.,LTD. established in 1998, is a large manufacturer
of integrated supply dedicated in researching,manufacturing,trading of plasterboard machinery. We are
HEBEI province municipal civilized and creditable unit,with high-tech enterprise certificate issued by the
state,national patent licenses,CE qualitysystem certification issued by the EU,and ISO9001 quality
system certification.

Glue coating head parameter

Diameter(mm) 180
Axial plane beating quantity(mm) 0.05

Glue coating steel roller parameter

Diameter(mm) 156
Axial plane beating quantity(mm) 0.004
