Building Material Mineral Wool Board Production Line With 6 Million Sqm Capacity
Building Material Mineral Wool Board Production Line With 6 Million Sqm Capacity
Building Material Mineral Wool Board Production Line With 6 Million Sqm Capacity
Building Material Mineral Wool Board Production Line With 6 Million Sqm Capacity
Building Material Mineral Wool Board Production Line With 6 Million Sqm Capacity
Building Material Mineral Wool Board Production Line With 6 Million Sqm Capacity
Building Material Mineral Wool Board Production Line With 6 Million Sqm Capacity
Building Material Mineral Wool Board Production Line With 6 Million Sqm Capacity
Specifications
Capacity :
6 million sqm/year to 12 million sqm/year
Raw material :
mineral fiber, waste paper, perlite, starch
Brand Name :
GREENS
Model Number :
KM
Certification :
ISO
Place of Origin :
Hebei China
MOQ :
1 line
Supply Ability :
5 Lines per year
Delivery Time :
one month
Packaging Details :
Standard export packing
Voltage :
customized
Product name :
mineral wool board production line
After sale service :
engineer available to service machinery overseas
Warranty :
1 year
Price :
US $2000000-3000000
Description
Building Material Mineral Wool Board Production Line With 6 Million Sqm Capacity
Product Overview

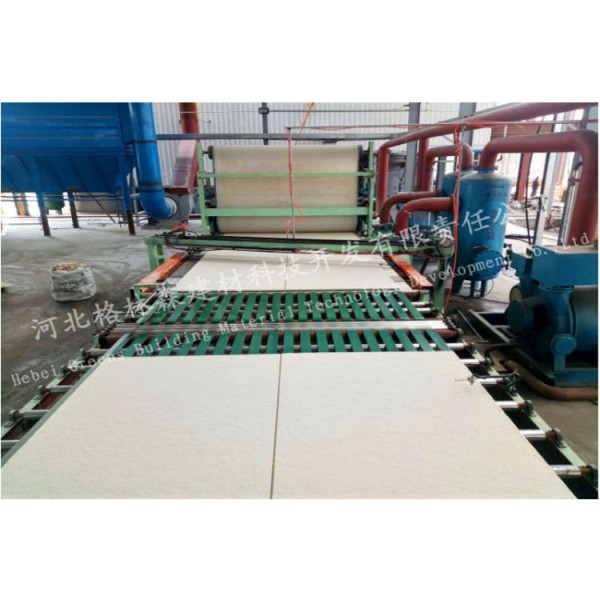

Complete mineral wool board production line with annual capacity of 6 million square meters, designed for manufacturing high-quality mineral fiber decorative acoustic boards.

About Mineral Fiber Board

Mineral fiber board is an environmentally-friendly building material processed through batching, forming, drying, cutting, embossing, and decorative finishing. Manufactured from granular cotton and other additives, it offers multiple functions including decoration, sound absorption, heat preservation, insulation, fire resistance, and lightweight construction.

Surface treatments include knurling and embossing with patterns such as gypsophila, cross flower, center flower, walnut pattern, and stripe pattern. The product is asbestos-free, harmless to human health, and features anti-sag functionality. Factory products are typically white but can be painted with various colorants.

Production Line Components
  • Raw material mixing system
  • Forming system
  • Cutting system
  • Drying system
  • Puttying system
  • Coating system
  • Embossing system
  • Cutting system
  • Packing system
Technical Specifications
Parameter Specifications
Thickness 8mm, 9mm, 10mm, 12mm, 15mm, 18mm, 19mm
Size 300×300mm, 595×595mm, 600×600mm, 603×603mm, 605×605mm, 595×1195mm, 600×1200mm
Material Wet-Formed Composite Mineral Fiber
Density 250-420 kg/m³
Surface High Quality Vinyl Latex Paint
Color White (other colors available)
Design Little Star, Pinhole, Punching, Worm, Real Sand, False Sand, Fine Fissured, etc.
Application Concert Hall, Council Chamber, Office, Theater, Dining Hall, Shopping Mall, Airport, Fitness, Library, Studio, etc.
