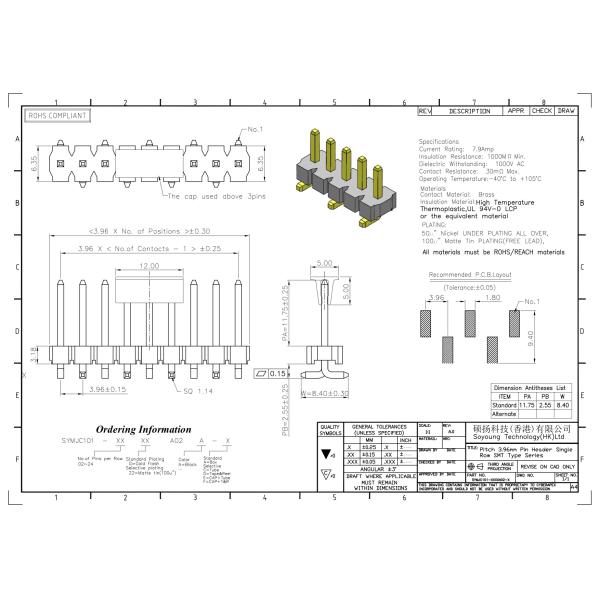

3.96mm Pitch Single Row Pin Header Connector for Surface Mount PCB Applications
3.96mm Pitch Single Row Pin Header Connector for Surface Mount PCB Applications
3.96mm Pitch Single Row Pin Header Connector for Surface Mount PCB Applications
3.96mm Pitch Single Row Pin Header Connector for Surface Mount PCB Applications
3.96mm Pitch Single Row Pin Header Connector for Surface Mount PCB Applications
3.96mm Pitch Single Row Pin Header Connector for Surface Mount PCB Applications
Specifications
Brand Name :
Soyoung
Model Number :
SYMJC101-XXXXAXX
Certification :
SGS ,REACH
Place of Origin :
China
MOQ :
1000PCS
Price :
It depends on the customers' requests and can be negotiable.
Payment Terms :
T/T
Supply Ability :
200K/Month
Delivery Time :
10-14works
Packaging Details :
TAPE REEL
Product Family :
Board to Board Connector
PCB Mount type :
Surface mount
Insulation Height :
Customer customize
Current Rating :
7.9A
Insulation Resistance :
1000MΩ
Dielectric Withstanding Voltage :
1000V AC
Description
Pin Header Connector 3.96mm Single Row SMT Type
This 3.96mm pitch single row surface mount pin header connector is available in configurations ranging from 1×2PIN to 1×24PIN with a standard height of 3.18mm. Designed for reliable PCB connections in various electronic applications.
About Pin Header Connectors
  • Pin headers serve as universal connectors with various pitch options to meet different PCB design requirements
  • Standard pitch options include 0.8mm, 1.0mm, 1.27mm, 2.00mm, and 2.54mm - contact our sales team for custom pitch requirements
  • Typically used with compatible female headers to create modular electronic assemblies
  • Electrical and mechanical specifications are consistent within each pitch category - detailed in our product datasheets
  • Machine pin versions available for enhanced durability - formed through precision tooling for superior joint quality and extended service life
3.96mm Pitch Single Row Pin Header Connector for Surface Mount PCB Applications Download Product Datasheet
Product Applications
Male pin headers are widely implemented across multiple industries including air conditioning systems, multimedia equipment, unmanned aerial vehicles (UAVs), and various electronic modules. Contact our sales team for specific application guidance and custom solutions.
Frequently Asked Questions
What is the minimum order quantity (MOQ)?
Our standard MOQ is 1000 pieces, with sample orders available starting from 1 piece.
Are samples available and are they free?
We provide up to 20 pieces free of charge for samples, with customers responsible for freight costs.
What are your price and payment terms?
Price Terms: EXW, FOB Shenzhen, or FOB Hongkong (other terms available)
Payment Methods: T/T, PayPal, and other accepted payment terms
What is your lead and delivery time?
Lead time varies by order quantity, with standard delivery typically within 5-7 working days.
Do you have UL certification and other qualifications?
Yes, we hold UL certification along with SGS and ISO9001:2004 quality management system certification.
Shipping Information
Small Quantity Shipments: FedEx, DHL, EMS, UPS, TNT and other express carriers
Large Quantity Shipments: Sea freight or air freight options available
