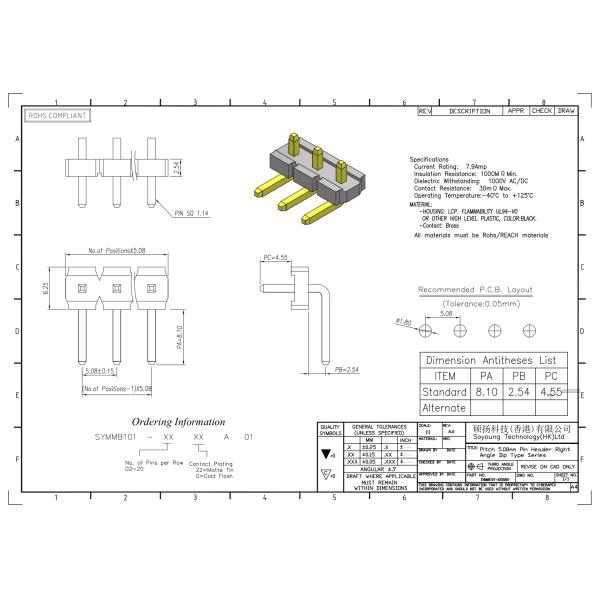

5.08mm Pitch Single Row Right Angle Type Pin Header Connector for PCB Board to Board Applications
5.08mm Pitch Single Row Right Angle Type Pin Header Connector for PCB Board to Board Applications
5.08mm Pitch Single Row Right Angle Type Pin Header Connector for PCB Board to Board Applications
5.08mm Pitch Single Row Right Angle Type Pin Header Connector for PCB Board to Board Applications
5.08mm Pitch Single Row Right Angle Type Pin Header Connector for PCB Board to Board Applications
5.08mm Pitch Single Row Right Angle Type Pin Header Connector for PCB Board to Board Applications
Specifications
Brand Name :
Soyoung
Model Number :
SYMMB101-XXXXAX1
Certification :
SGS ,REACH
Place of Origin :
China
MOQ :
1000PCS
Price :
It depends on the customers' requests and can be negotiable.
Payment Terms :
T/T
Supply Ability :
200K/Month
Delivery Time :
10-14works
Packaging Details :
BOX Standard、PE Bags
Product Family :
Board to Board Connector
PCB Mount type :
Surface mount
Insulation Height :
Customer customize
Current Rating :
7.9A
Insulation Resistance :
1000MΩ
Dielectric Withstanding Voltage :
1000V AC
Description
Pin Header Connector 5.08mm Single Row R/A Type
Available in configurations from 1×2PIN to 1×20PIN with H=2.54MM
About Pin Headers
Pin headers are universal connectors designed for PCB applications. Different pitch connectors are selected based on specific PCB design requirements.
  • Our company specializes in 0.8mm, 1.0mm, 1.27mm, 2.00mm, and 2.54mm pitch pin headers
  • Custom pin headers for non-standard pitch requirements are available - contact our sales team
  • Pin headers are typically used with matching female headers to create complete electronic modules
  • Electrical and mechanical properties are consistent within the same pitch, as detailed in our datasheets
  • Machine pin versions offer enhanced robustness with tooled metal construction for better joints and longer lifespan, preferred in automotive and medical applications
5.08mm Pitch Single Row Right Angle Type Pin Header Connector for PCB Board to Board Applications Download Product Datasheet (PDF)
Product Applications
Male pin headers are widely used across multiple industries including air conditioning systems, multimedia devices, UAVs (unmanned aerial vehicles), and various electronic applications. For detailed application scenarios and specific use cases, please contact our sales team.
Why Choose Soyoung
  • Automatic Production: Over 80% of our products are manufactured using automated assembly lines, ensuring consistent quality and precision
  • On-Time Delivery: We value every customer relationship and commit to timely delivery of all orders
  • Value Creation: We believe in creating mutual value for both customers and our company through win-win partnerships
  • Instant Response: Our team provides prompt technical support and problem-solving assistance
Frequently Asked Questions
Where is your factory located?
We are located in Shenzhen, Guangdong.
How do you control quality?
All products undergo 100% quality inspection before shipment.
Do you provide samples?
Yes, we provide free samples with freight collect.
What is your lead time?
Typically 7-15 days after order payment, depending on quantity.
What is your minimum order quantity?
Generally 100 pieces, but we accept smaller orders.
What if I have quality issues?
We provide technical support and return services for any quality concerns.
