2.54mm Single Row Female Header Connector 1*2PIN to 1*40PIN for Board to Board Connection
2.54mm Single Row Female Header Connector 1*2PIN to 1*40PIN for Board to Board Connection
2.54mm Single Row Female Header Connector 1*2PIN to 1*40PIN for Board to Board Connection
2.54mm Single Row Female Header Connector 1*2PIN to 1*40PIN for Board to Board Connection
2.54mm Single Row Female Header Connector 1*2PIN to 1*40PIN for Board to Board Connection
2.54mm Single Row Female Header Connector 1*2PIN to 1*40PIN for Board to Board Connection
Specifications
Brand Name :
Soyoung
Model Number :
SYFHA108-XXXXA01
Certification :
SGS ,REACH
Place of Origin :
China
MOQ :
1000PCS
Price :
It depends on the customers' requests and can be negotiable.
Payment Terms :
T/T
Supply Ability :
500K/Month
Delivery Time :
10-14works
Packaging Details :
BOX
Current Rating :
3.0 AMP
Insulation Resistance :
1000MΩMin
Dielectric Withstanding Voltage :
600V AC
Product Family :
Board to Board Connector
Number of Rows :
Single
PCB Mount type :
Through hole
Description
Female Header Connector 2.54mm Single Row Dip TYPE
Product Overview

Female Header Connector 2.54mm Single Row Dip Type available in configurations from 1×2PIN to 1×40PIN with a height of 8.50mm. Designed for reliable board-to-board connections in electronic applications.

What is a Female Header Connector?

Female header connectors consist of housing containing metal contacts designed to hold and retain male contacts. When mated with male headers, they create secure board-to-board connections for current and signal transmission.

Available in single row, dual row, three row, or four row configurations, these connectors are widely used in electronics, electrical appliances, and instruments. Typically used with male headers for board-to-board connections or with electronic wiring harness terminals for board-to-wire connections.

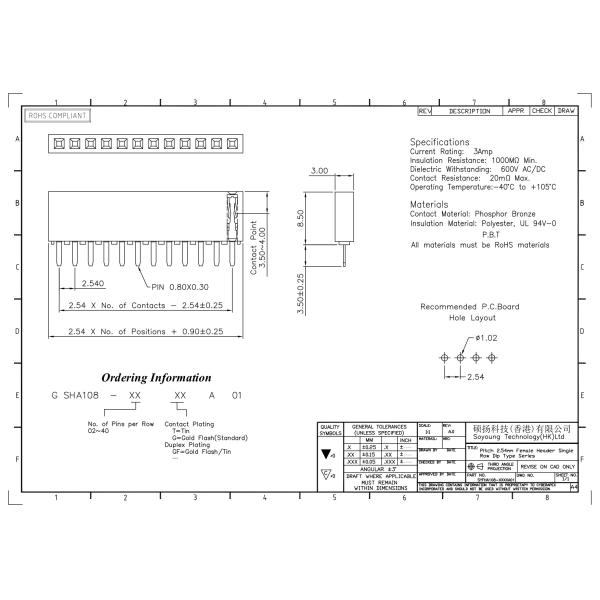

2.54mm Single Row Female Header Connector 1*2PIN to 1*40PIN for Board to Board Connection Download Product Datasheet
PCB Connector Orientations

PCB connectors provide multipin connection systems in rectangular layouts. Mating pairs support either board-to-board or cable-to-board configurations with various orientation options:

  • Parallel/Mezzanine: Both connectors in vertical orientation
  • 90° Right Angle (Motherboard to Daughterboard): One vertical, one horizontal connector
  • 180° Coplanar (Edge-to-Edge): Both connectors in horizontal orientation
Frequently Asked Questions
Where is your factory located?

We are located in Shenzhen, Guangdong.

How is your quality control managed?

All products undergo 100% inspection before shipment to ensure quality standards.

Do you provide samples?

Yes, we provide free samples with freight collect.

What is your typical lead time?

Lead time depends on quantity, generally within 7-15 days after order payment.

What is your minimum order quantity?

Standard MOQ is 100 pieces, but we accept smaller orders.

How do you handle quality problems?

We provide technical support and return services for any quality issues or questions.
