Female Header Connector 2.54mm Single Row Dip Type 1*2PIN to 1*40PIN for Board to Board Connection
Female Header Connector 2.54mm Single Row Dip Type 1*2PIN to 1*40PIN for Board to Board Connection
Female Header Connector 2.54mm Single Row Dip Type 1*2PIN to 1*40PIN for Board to Board Connection
Female Header Connector 2.54mm Single Row Dip Type 1*2PIN to 1*40PIN for Board to Board Connection
Female Header Connector 2.54mm Single Row Dip Type 1*2PIN to 1*40PIN for Board to Board Connection
Female Header Connector 2.54mm Single Row Dip Type 1*2PIN to 1*40PIN for Board to Board Connection
Specifications
Brand Name :
Soyoung
Model Number :
SYFHA121-XXXXA01
Certification :
SGS ,REACH
Place of Origin :
China
MOQ :
1000PCS
Price :
It depends on the customers' requests and can be negotiable.
Payment Terms :
T/T
Supply Ability :
500K/Month
Delivery Time :
10-14works
Packaging Details :
BOX
Current Rating :
3.0 AMP
Insulation Resistance :
1000MΩMin
Dielectric Withstanding Voltage :
600V AC
Product Family :
Board to Board Connector
Number of Rows :
Single
PCB Mount type :
Straight DIP
Description
Female Header Connector 2.54mm Single Row Dip TYPE

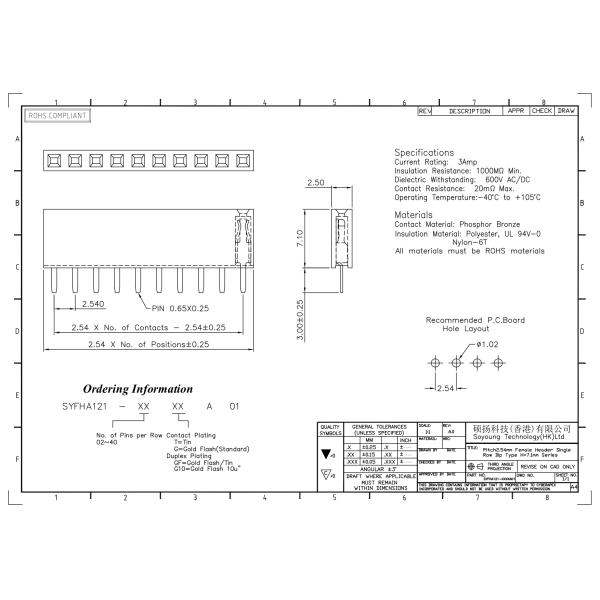

This female header connector features a 2.54mm pitch single row DIP configuration with pin counts ranging from 1×2PIN to 1×40PIN and a height of 7.10mm.
About Female Headers
Female headers consist of housing containing metal contacts designed to hold and retain male contacts. When mated with male headers, they create reliable board-to-board connections for current and signal transmission in electronics, electrical appliances, and instruments.
Available in single, dual, three, or four row configurations, these connectors are typically used with male headers for board-to-board connections or with electronic wiring harness terminals for board-to-wire connections.
Female Header Connector 2.54mm Single Row Dip Type 1*2PIN to 1*40PIN for Board to Board Connection Download Product Specification (PDF)
Our Services
  • Easy connector sourcing solutions
  • 24-hour response time for inquiries - Online inquiries welcome
  • OEM and ODM services with shared mold cost for custom connector requirements
  • 20 free samples for new customers; additional samples for repeat customers
  • Commitment to delivering on our promises
How to Order
  • Provide a part number from major brands (Samtec, Molex, FCI, JST, etc.) or your design specifications for compatibility checking
  • Select parts from our website and contact our sales team
  • Small orders welcome
Frequently Asked Questions
Where is your factory located?
We are located in Shenzhen, Guangdong.
How do you ensure quality control?
All products undergo 100% inspection before shipment.
Do you provide samples?
Yes, we provide free samples with freight collect.
What is your lead time?
Typically 7-15 days after order payment, depending on quantity.
What is your minimum order quantity?
Generally 100 pieces, but we accept smaller orders.
What if I encounter quality issues?
We provide technical support and return services for any quality concerns.
