Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
Specifications
Place of Origin :
Beijing, China
Brand Name :
Boao Laser
Certification :
ce
Packaging Details :
wooden box
Supply Ability :
30 Unit/Units per Month
Price :
$13,000.00/units 1-1 units
MOQ :
1 UNIT
Condition :
New
Max. Output Power :
1000W 1500w 2000w 3000w
Usage :
Metal welding
Single Pulse Energy :
110J
Pulse Width :
0.1ms~40ms
Wavelength :
1064nm
Focal Spot Diameter :
0.1mm-3.0mm
Dimensions :
1170mm*590mm*1250mm
Warranty :
2 Year, 2year
Laser Source Brand :
RAYCUS
Laser Head Brand :
BOAO LASER
Servo Motor Brand :
FUJI
Guiderail Brand :
TPI
Control System Brand :
Cypcut
Weight (KG) :
650 KG
Key Selling Points :
Mold laser Repairing
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
New Product 2023
Warranty of core components :
2 Year
Core Components :
Other, LASER SOURCE
Laser Type :
fiber laser
Sample Test :
Available
Welding Depth :
≤2mm
Pulse Frequency :
≤100hz
weld laser :
laser welding
weld machin laser :
laser weld machin price
Product name :
Automatic Fiber Laser Welding Machine
Function :
Metal Welding Service
Port :
Tianjin, China
Description
Machines Introduction

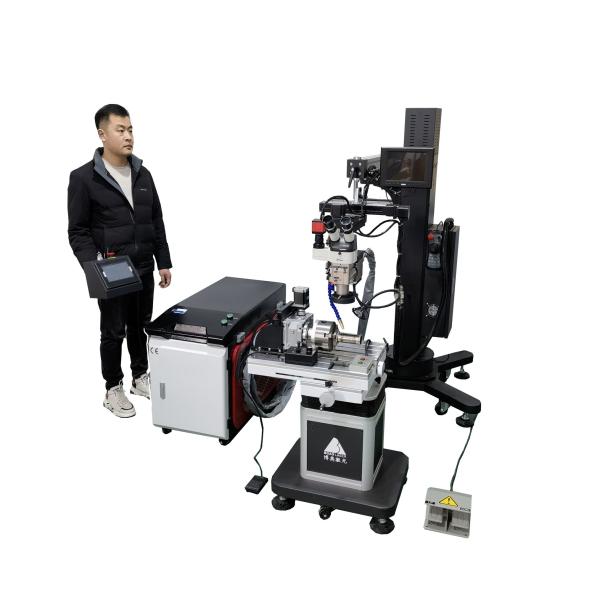

Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w

Special For Big Mold
it can meet Max Mold Size 2000x2000x2000mm To Repair by This laser.

Fiber laser Type
It adopted CW fiber laser 1KW ,1.5KW ,2KW and 3KW to meet different diameter welding wires

Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
Model
BMII –1000 BMII -1500 BMII-2000 BMII-3000
3-axis stroke of work bench
X=300mm, Y=200mm (X, Y can be adjusted manually and Z-axis can be lifted)
Bearing of work bench
≤100kg
Whole Machine Weight
700kgs
Power supply
380V ±10%/50Hz Or 220V±10%/50Hz
Laser type
CW FIBER
Laser wavelength
1060nm
Pulse width
≤20ms
Laser Spot Diameter
0.1-3.0mm adjutable
Maximum laser power
1000W /1500W/2000W/3000W
Pulse frequency
≤100Hz
Laser output focus length
150mm
Laser cooling
Water cooling
Observing system
Microscope (360° adjustable)
Protection gas
One line (xenon)
Welding wire diameter
0.1mm-1.6 mm
Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w
