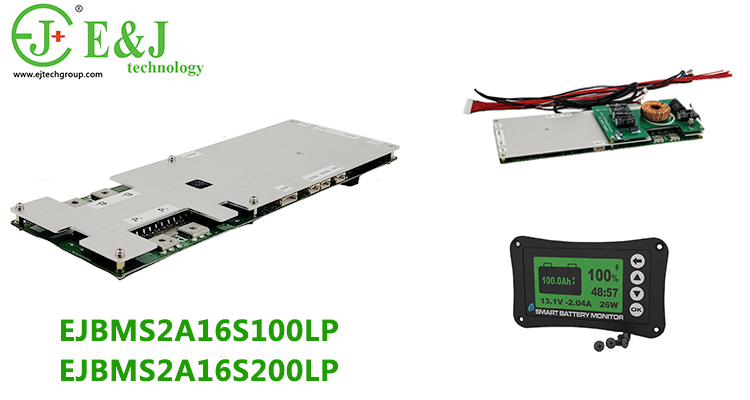

16S 100A 200A Lithium LiFePO4 Solar Energy Storage 2A Active Balancer Smart Inverter BMS
16S 100A 200A Lithium LiFePO4 Solar Energy Storage 2A Active Balancer Smart Inverter BMS
16S 100A 200A Lithium LiFePO4 Solar Energy Storage 2A Active Balancer Smart Inverter BMS
16S 100A 200A Lithium LiFePO4 Solar Energy Storage 2A Active Balancer Smart Inverter BMS
16S 100A 200A Lithium LiFePO4 Solar Energy Storage 2A Active Balancer Smart Inverter BMS
16S 100A 200A Lithium LiFePO4 Solar Energy Storage 2A Active Balancer Smart Inverter BMS
16S 100A 200A Lithium LiFePO4 Solar Energy Storage 2A Active Balancer Smart Inverter BMS
16S 100A 200A Lithium LiFePO4 Solar Energy Storage 2A Active Balancer Smart Inverter BMS
16S 100A 200A Lithium LiFePO4 Solar Energy Storage 2A Active Balancer Smart Inverter BMS
16S 100A 200A Lithium LiFePO4 Solar Energy Storage 2A Active Balancer Smart Inverter BMS
Specifications
Certification :
ISO9000
Warranty :
1years
Continuous current :
100~200A
Brand Name :
EJBMS
Number of strings supported :
4~16S
Balance Function :
Active balance
Model Number :
EJBMS2A16S100LP/200LP
Place of Origin :
Guangdong, China
Material :
PCB
MOQ :
100
Number of NTCs :
1 built-in, 4external
Description

Outline

The EJBMS series protection board uses high-quality lithium battery protection IC to provide complete and reliable protection performance: extremely high overcharge/over-discharge voltage detection accuracy; secondary discharge overcurrent protection detection and delay (overcurrent 1/short circuit);extremely low Quiescent current consumption.

Application

The protection board is suitable for NMC/LTO/LIFEPO4 power battery protection applications for 48V/200A and belowipment.

Protection Function

Overcharge protection: lf the voltage of any cell reaches the overcharge protection voltage, the charging circuit willbe shut down immediately and continued charging is prohibited.

Over-discharge protection: If the voltage of any cellis lower than the over-discharge protection voltage, the dischargtcircuit will be shut down immediately and continued discharge is prohibited.

Discharge overcurrent protection: When the discharge current excee ds the discharge overcurrent protection currentthe discharge circuit will be shut down immediately and continued discharging is prohibited.
