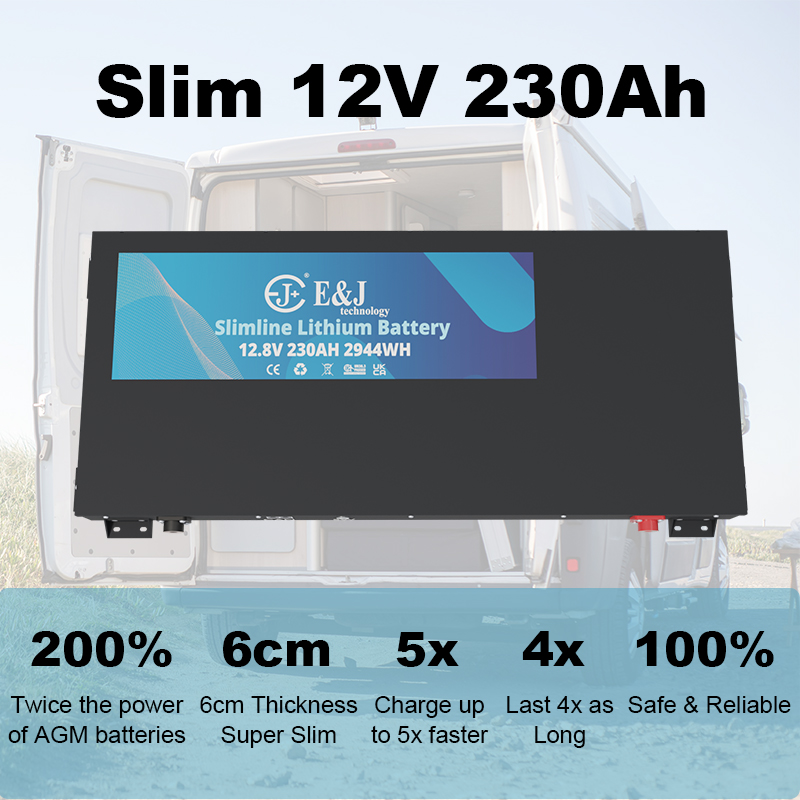

12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van
12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van
12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van
12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van
12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van
12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van
12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van
12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van
12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van
12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van
12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van
12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van
Specifications
Battery Type :
Liquid
Case material :
aluminium
Price :
$558.74
Application :
Home Appliances, Boats, Golf Carts, SUBMARINES, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts
OEM/ODM :
Accepatable
Max Load Quantity(cells) :
4
Brand Name :
EJ
MOQ :
2
Operating Temperature(℃) :
60
Communication :
CAN/ RS485
The discharge rate :
1-3C
Cycle Life :
4000 cycles
Weight :
25kgs(55.12lb)
Anode Material :
LFP
Cathode Materials :
LiFePO4
Warranty :
3 years
Model Number :
EJ12200FEBSL
Place of Origin :
Guangdong, China
The charging ratio :
0.5C
Dimension (L*W*H) :
725*265*60mm(28.54*10.43*2.36in)
Description

Specification

Parameters/ Models 100Ah 160Ah 230Ah
Electric Nominal voltage 12.8V 12.8V 12.8V
Nominal capacity 100Ah 160Ah 230Ah
Stored energy 1280Wh 2048Wh 2944Wh
Internal resistance ≤ 50mΩ ≤ 50mΩ ≤ 50mΩ
Cycles >3000 cycles >3000 cycles >3000 cycles
Self discharge < 3% per month < 3% per month < 3% per month
Energy efciency > 96% > 96% > 96%
Function Heating Optional Optional Optional
ON/OFF Swithch Optional Optional Optional

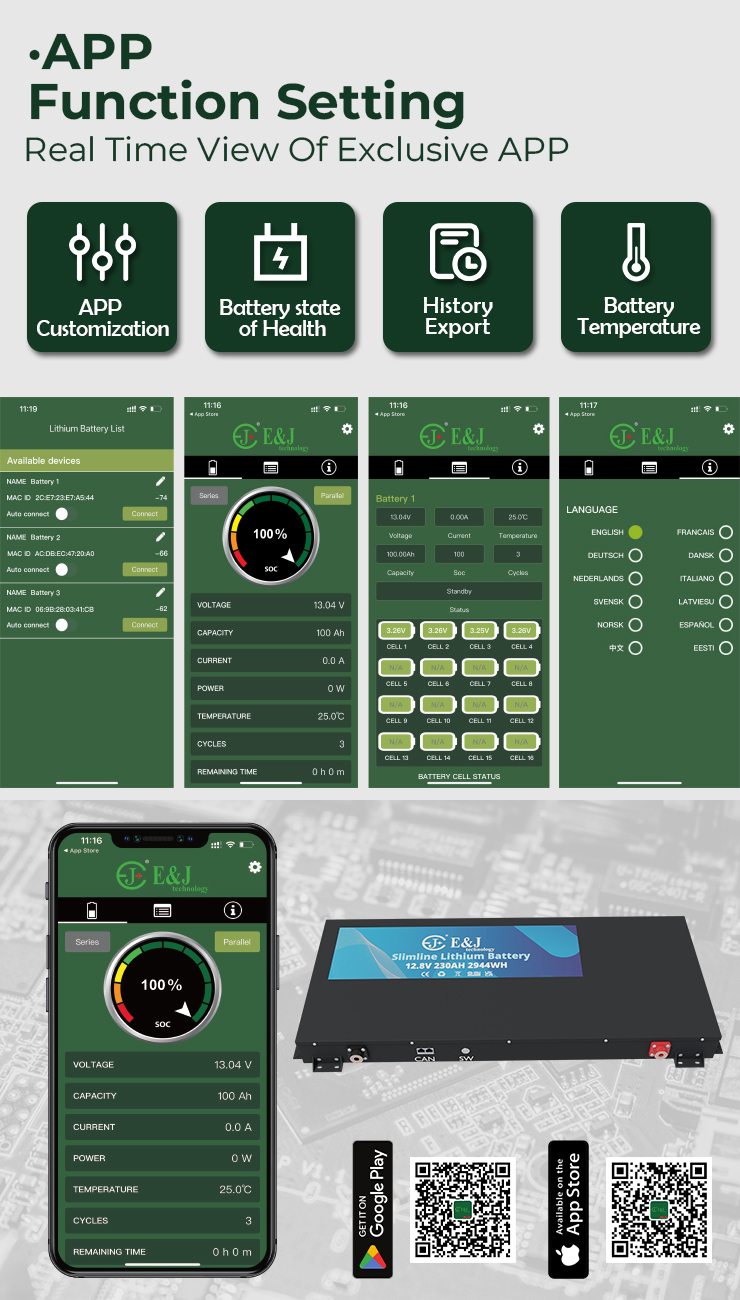

Wireless Monitor Optional Optional Optional

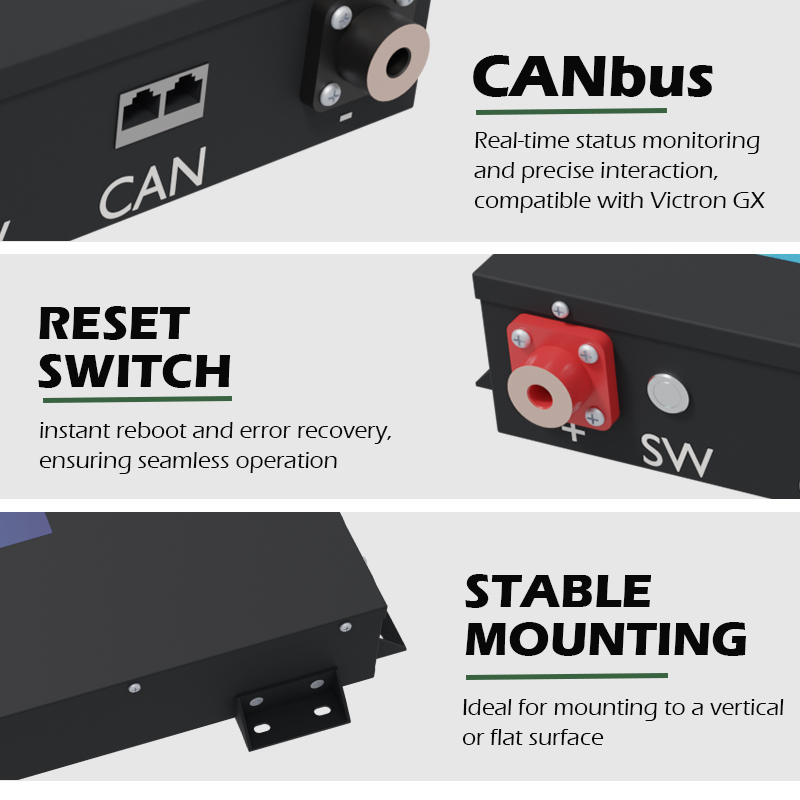

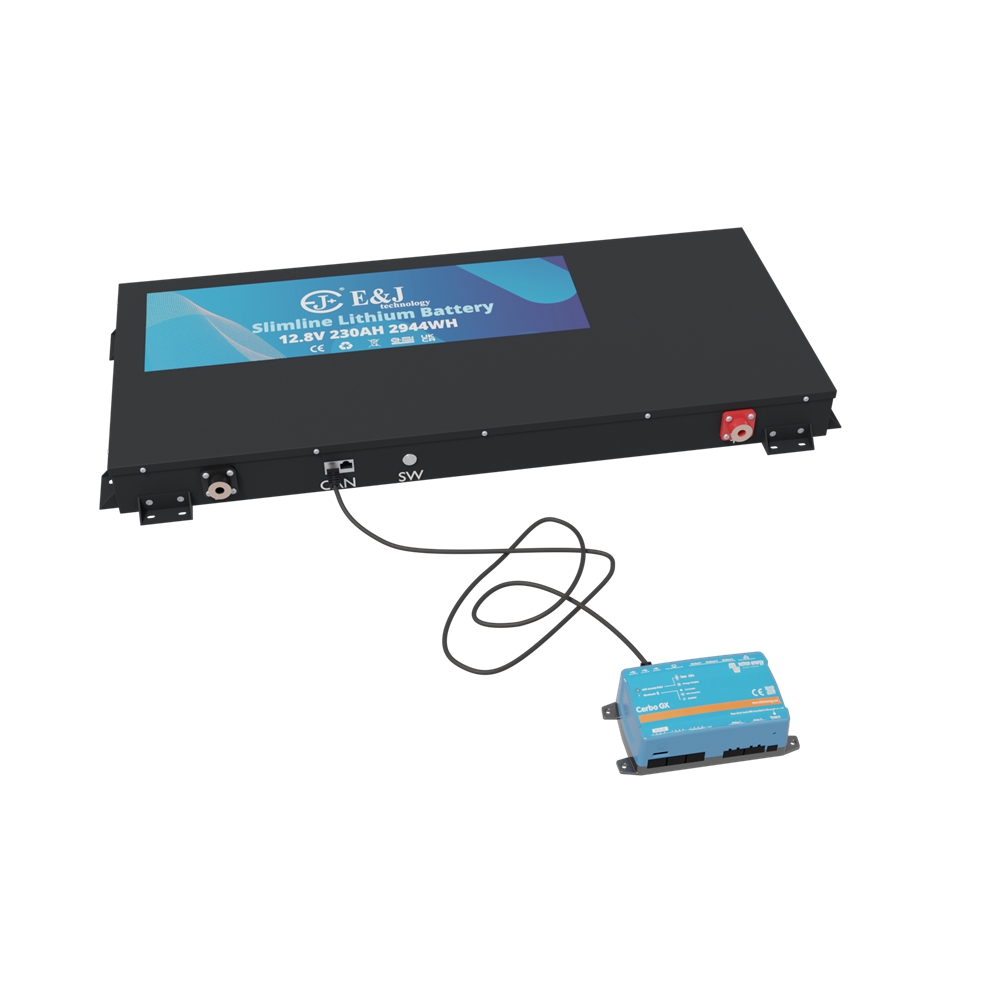

CANbus/ RS485 Optional Optional Optional
Standard Charge Charge voltage 14.6V ± 0.1V 14.6V ± 0.1V 14.6V ± 0.1V
Charge mode CC/CV : Constant Current / Constant Voltage CC/CV : Constant Current / Constant Voltage CC/CV : Constant Current / Constant Voltage
Maximum continuous charge current 50A/ 100A 50A/ 100A 50A/200A

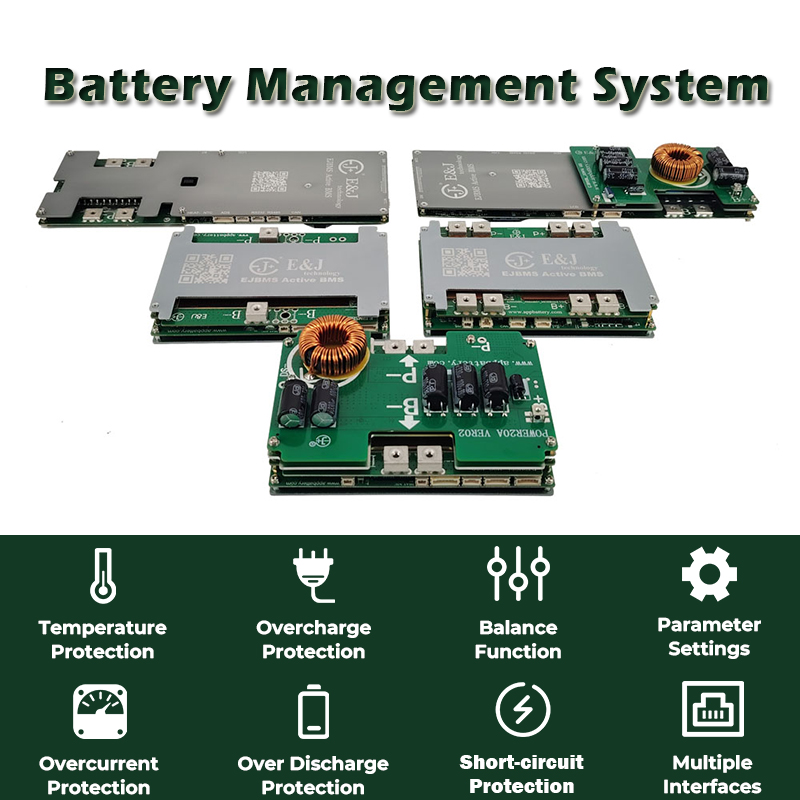

BMS charge cut-off voltage 14.8V ± 0.1V 14.8V ± 0.1V 14.8V ± 0.1V
Standard Discharge Continuous discharge current 200A 200A 200A
Maximum discharge current (30s) 400A 400A 450A
BMS discharge cut-off voltage 10V 10V 10V
Environment Charge temperature range 0°C- 45°C @60±25% 0°C- 45°C @60±25% 0°C- 45°C @60±25%
Discharge temperature range -20°C – 60°C @60±25% -20°C – 60°C @60±25% -20°C – 60°C @60±25%
Storage temperature 0°C – 40°C @60±25% 0°C – 40°C @60±25% 0°C – 40°C @60±25%
IP protection level IP65 IP65 IP65
Mechanical Cell assembly Prismatic Prismatic Prismatic
Casing material Aluminium Aluminium Aluminium

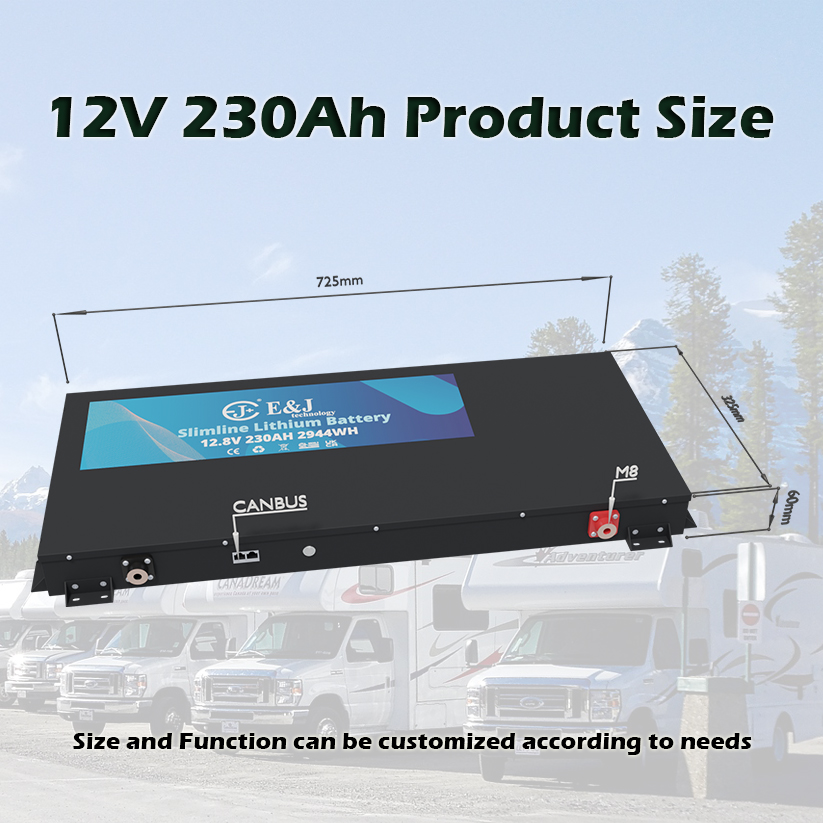

Dimensions 440mm x 220mm x 60mm 725mm x 265mm x 60mm 725mm x 325mm x 60mm
Weight 14 kg 22.4kg 32.2kg
Terminal M8 M8 M8

Products Description

12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van 12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van 12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van 12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van 12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van 12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van 12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van 12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van 12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van 12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van

Why Choose Us

12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van

Company Profile

12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van 12.8V 230Ah Ultra Slimline Lithium Ion Battery Pack Deep Cycle BMS Integrated For Camper Van
