Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density
Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density
Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density
Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density
Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density
Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density
Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density
Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density
Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density
Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density
Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density
Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density
Specifications
Battery Type :
Liquid
Application :
Home Appliances, Boats, Golf Carts, SUBMARINES, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts
OEM/ODM :
Accepatable
Max Load Quantity(cells) :
4
Model Number :
EJ12200FEBSL
Case material :
aluminium
Operating Temperature(℃) :
60
Communication :
CAN/ RS485
The discharge rate :
1-3C
Weight :
25kgs
Anode Material :
LFP
Cathode Materials :
LiFePO4
Warranty :
3 years
MOQ :
2
Cycle Life :
6000 cycles
Price :
$349
The charging ratio :
0.5C
Brand Name :
EJ
Dimension (L*W*H) :
440*220*60mm
Place of Origin :
Guangdong, China
Description

Specification

Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density
Parameters/ Models 100Ah 160Ah 230Ah
Electric Nominal voltage 12.8V 12.8V 12.8V
Nominal capacity 100Ah 160Ah 230Ah
Stored energy 1280Wh 2048Wh 2944Wh
Internal resistance ≤ 50mΩ ≤ 50mΩ ≤ 50mΩ
Cycles >3000 cycles >3000 cycles >3000 cycles
Self discharge < 3% per month < 3% per month < 3% per month
Energy efciency > 96% > 96% > 96%
Function Heating Optional Optional Optional
ON/OFF Swithch Optional Optional Optional
Wireless Monitor Optional Optional Optional
CANbus/ RS485 Optional Optional Optional
Standard Charge Charge voltage 14.6V ± 0.1V 14.6V ± 0.1V 14.6V ± 0.1V
Charge mode CC/CV : Constant Current / Constant Voltage CC/CV : Constant Current / Constant Voltage CC/CV : Constant Current / Constant Voltage
Maximum continuous charge current 50A/ 100A 50A/ 100A 50A/200A
BMS charge cut-off voltage 14.8V ± 0.1V 14.8V ± 0.1V 14.8V ± 0.1V
Standard Discharge Continuous discharge current 200A 200A 200A
Maximum discharge current (30s) 400A 400A 450A
BMS discharge cut-off voltage 10V 10V 10V
Environment Charge temperature range 0°C- 45°C @60±25% 0°C- 45°C @60±25% 0°C- 45°C @60±25%
Discharge temperature range -20°C – 60°C @60±25% -20°C – 60°C @60±25% -20°C – 60°C @60±25%
Storage temperature 0°C – 40°C @60±25% 0°C – 40°C @60±25% 0°C – 40°C @60±25%
IP protection level IP65 IP65 IP65
Mechanical Cell assembly Prismatic Prismatic Prismatic
Casing material Aluminium Aluminium Aluminium

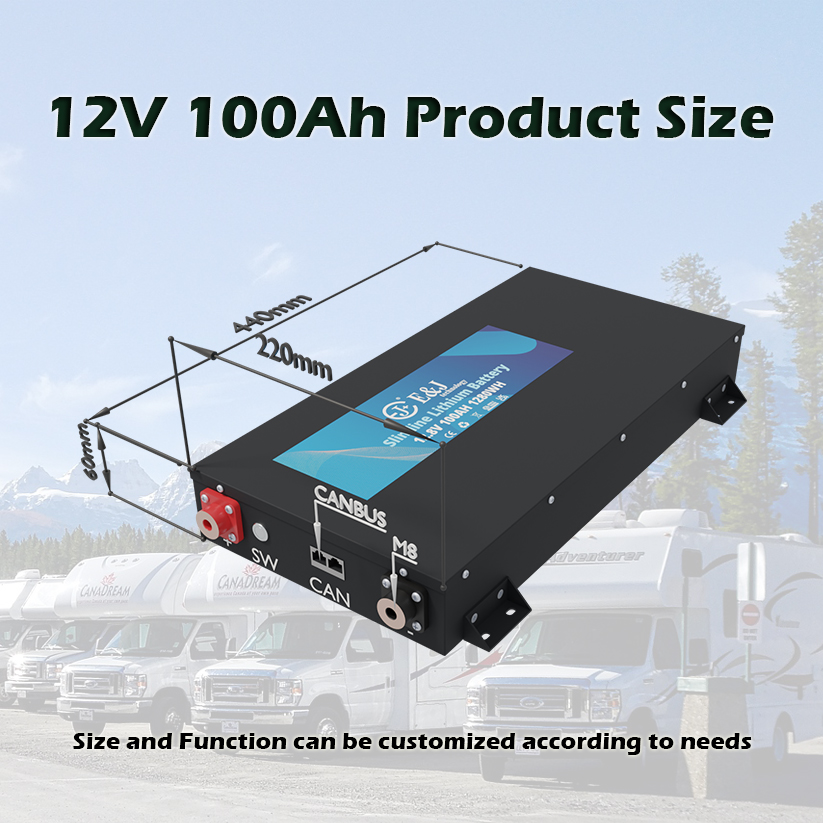

Dimensions 440mm x 220mm x 60mm 725mm x 265mm x 60mm 725mm x 325mm x 60mm
Weight 14 kg 22.4kg 32.2kg
Terminal M8 M8 M8

Products Description

Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density

Why Choose Us

Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density

Company Profile

Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density Ultra Slim 12V 100Ah Lithium Ion Battery Pack Long Lasting With High Energy Density
