12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
Specifications
Model Number :
EJ12200NA
Battery Type :
Sodium-Air
Operating Temperature[°C :
1
Battery Capacity :
200Ah
Place of Origin :
Guangdong, China
Weight :
25KG(55.12lb)
MOQ :
10
Electric Energy :
2480 Wh
Brand Name :
ENJ
Price :
$356.17-374.43
Battery Size :
prismatic
Description
Specification
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System


Electrical Characteristics
Model number
EJNA12200
Nominal Voltage
12.4 V
12Nominal capacity
200 Ah
Energy
2560Wh
Internal Resistance
≤ 3mΩ
Cycle life
≥3000 cycles @ 60%DOD
Months Self Discharge
<3%
Efficiency of Charge
100% @0.5C
Efficiency of Discharge
96~99% @1C


Standard Charge
Charge Cut-off Voltage
15.8V ±0.2
Charge Mode
0.2C to 15.8V, then 15.8V,charge current to 0.02C (CC/CV)
Standard Charge Current
0.2C
Max. Charge Current
3C


Standard Discharge
Continuous Current
1C
Max. Pulse Current
10C
Discharge Cut-off Voltage
6V


Environmental
Charge Temperature
-10°C~45°C @60±25% Relative Humidity
Discharge Temperature
-30°C~70°C @60±25% Relative Humidity
Storage Temperature
-10℃ to 60 ℃ (32F to 104F) @60±25% Relative Humidity
Water Dust Resistance
IP65


Mechanical
Plastic Case
ABS

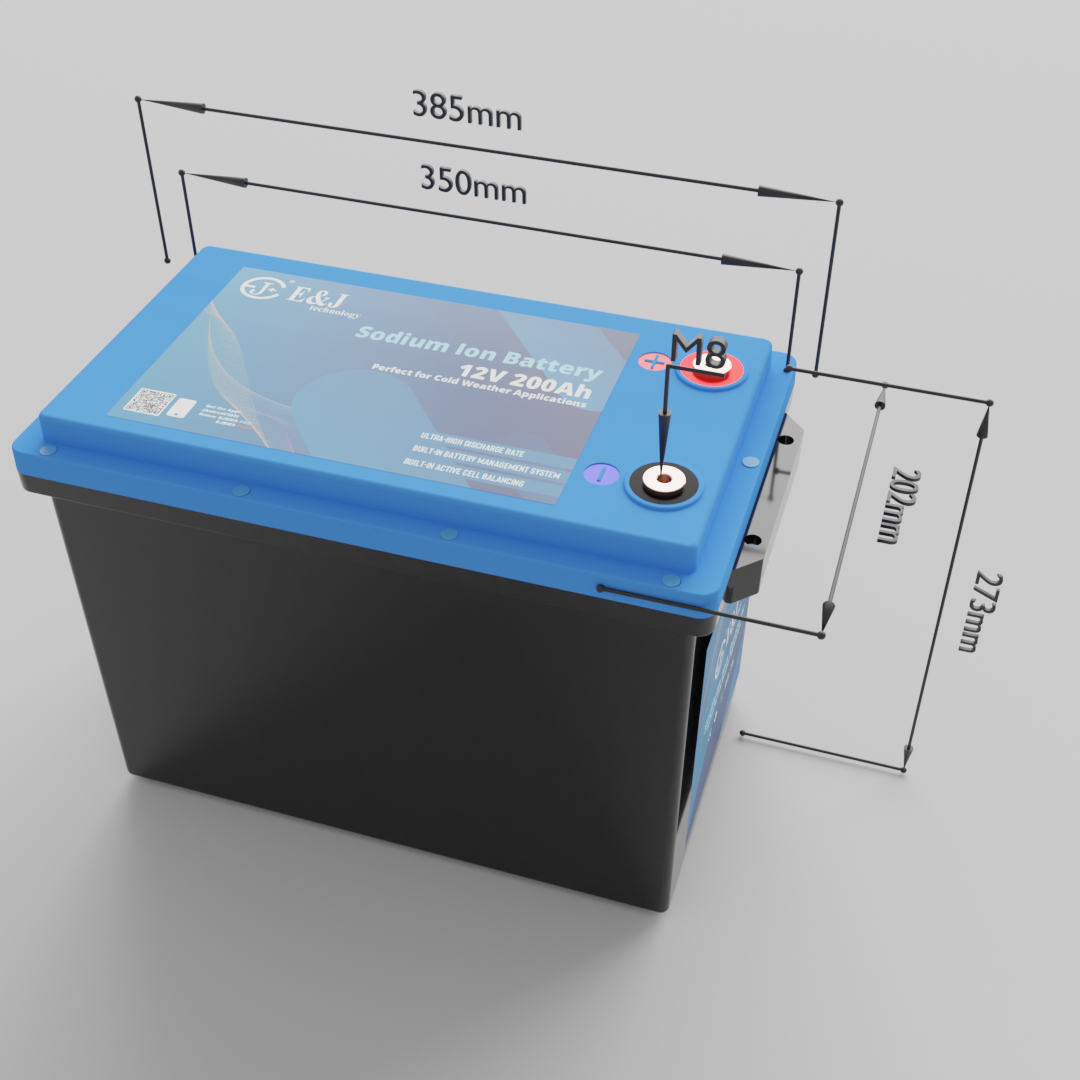

Dimensions (mm)
385*202*273mm
Weight
28 kg
Terminal
M8 Terminals for Starter
Function
Support Customization
Color
Black
Products Description
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
12V 200Ah Prismatic Sodium Air Battery 2480Wh For Semi Trucks Air Conditioner System
