Specifications
Operating Temperature(℃) :
-20 to +60
The discharge rate :
1C
Cycle Life :
4000 cycles
Weight :
9.8KG(21.61lb)
Electric Energy :
1280
Cathode Materials :
LiFePO4
The charging ratio :
0.5C
Place of Origin :
Guangdong, China
Battery Type :
Liquid
MOQ :
4
Application :
Boats, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric Forklifts
Anode Material :
LFP
Max Load Quantity(cells) :
8
Battery Size :
LFP
Model Number :
EJ12100FEB-G24
Brand Name :
E&J

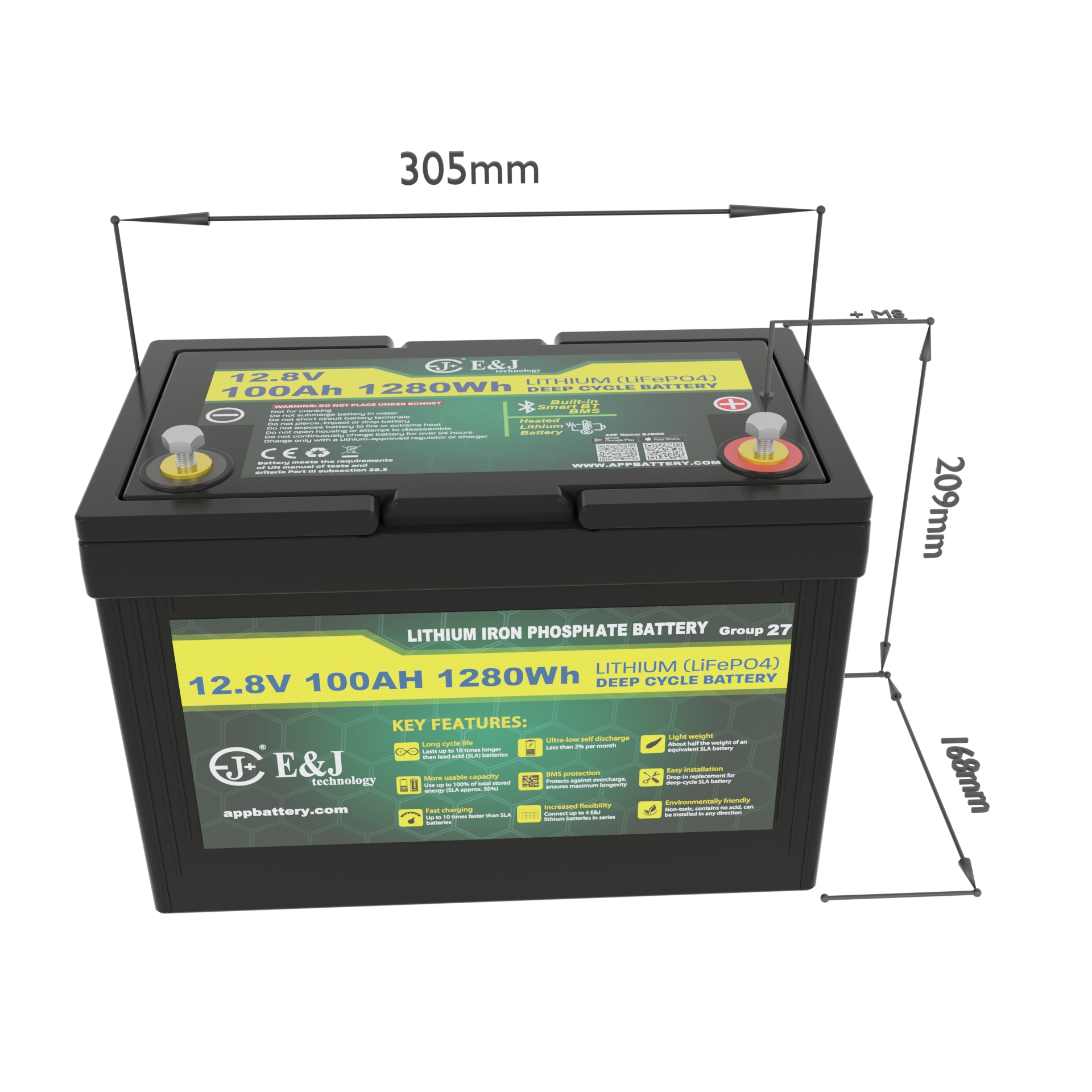

Dimension (L*W*H) :
305*168*209mm(12.01*6.61*8.23in)
Description

Specification

Parameters/ Models
50Ah
60Ah
100Ah
Electric
Nominal voltage
12.8V
12.8V
12.8V
Nominal capacity
50Ah
60Ah
100Ah
Stored energy
640Wh
768Wh
1280Wh
Cold Cranking Amps (CCA)
700
900
1500
Internal resistance
≤ 50mΩ
≤ 50mΩ
≤ 50mΩ
Cycles
>5000 cycles
>5000 cycles
>5000 cycles
Self discharge
< 3% per month
< 3% per month
< 3% per month
Energy efciency
> 96%
> 96%
> 96%
Standard Charge
Charge voltage
14.6V ± 0.1V
14.6V ± 0.1V
14.6V ± 0.1V
Charge mode
CC/CV : Constant Current / Constant Voltage
CC/CV : Constant Current / Constant Voltage
CC/CV : Constant Current / Constant Voltage
Maximum continuous charge current
20A/ 50A
20A/50A
30A/100A
BMS charge cut-off voltage
60.8V ± 0.1V
60.8V ± 0.1V
60.8V ± 0.1V
Standard Discharge
Continuous discharge current
50A
60A
100A
BMS discharge cut-off voltage
14.8V ± 0.1V
14.8V ± 0.1V
14.8V ± 0.1V
Environment
Charge temperature range
0°C- 45°C @60±25%
0°C- 45°C @60±25%
0°C- 45°C @60±25%
Discharge temperature range
-20°C – 60°C @60±25%
-20°C – 60°C @60±25%
-20°C – 60°C @60±25%
Storage temperature
0°C – 40°C @60±25%
0°C – 40°C @60±25%
0°C – 40°C @60±25%
IP protection level
IP65
IP65
IP65
Mechanical
Cell assembly
Cylindrical
Cylindrical
Cylindrical
Casing material
ABS
ABS
ABS
Weight
6kg
8kg
11.5 kg
Terminal
M8
M8
M8

Productions Process
