High Tensile Galvanized Welded Gabion Basket Welded Gabion Wall
High Tensile Galvanized Welded Gabion Basket Welded Gabion Wall
High Tensile Galvanized Welded Gabion Basket Welded Gabion Wall
High Tensile Galvanized Welded Gabion Basket Welded Gabion Wall
High Tensile Galvanized Welded Gabion Basket Welded Gabion Wall
High Tensile Galvanized Welded Gabion Basket Welded Gabion Wall
High Tensile Galvanized Welded Gabion Basket Welded Gabion Wall
High Tensile Galvanized Welded Gabion Basket Welded Gabion Wall
Specifications
Mesh Tensile :
380N/mm2 - 550N/mm2
Wire dia :
3.0mm-6.0mm
Key Word :
Welded Gabion Basket
Opening size :
75*75mm,50*50mm
Mesh type :
Welded Gabions
Application :
Gabions, Garden, Retaining wall, Fence, Shore Protection etc.
Basket size :
2000*1000*500mm
Hole Shape :
Square
Fishing :
heavy Duty Galvanized Or Galfan Galvanized
Brand Name :
BM
Model Number :
BM-GABIONS012
Certification :
CE,CCC
Place of Origin :
CHINA
MOQ :
1 basket
Price :
$26.3 - $189.2 Per Basket
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,,paypal
Supply Ability :
2000 Units Per Week
Delivery Time :
14-20 Days After Get The Deposite
Packaging Details :
Plastic And Wooden Pallet
Product :
Welded Gabion Wall
Packing :
Wooden Pallet
Material :
Galvanized
Description

High Tensile Galvanized Welded Gabion Basket / Welded Gabion Wall

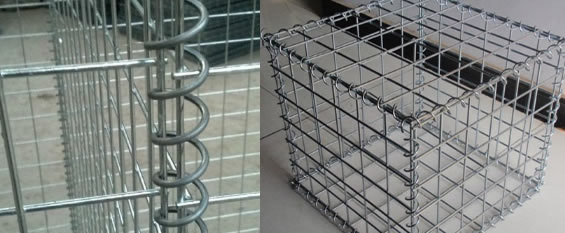

Welded Gabion Basket Description


Welded mesh gabions are filled on site with hard and durable stones to form mass of gravity retaining structures. Due to their inflexibility, welded gabions are generally not considered suitable in areas susceptible to differential settlement, or in water courses.
The gabions are available in a variety of wire diameters and unit sizes to meet project requirements.
In common with all gabions during installation, all welded units need internal bracing wires to be overfilled to allow for settlement of the granular rock fill.


Gabion Box Size 1x1*0.5m 1x1x1m 1.5x1x1m 2x1x1m
Wire Diameter 3mm 4mm 5mm 6mm
Double horizontal wires style is available
Mesh Hole Size 50x50mm 50x100mm 75x75mm 75x150mm
Other specifications are available



Welded gabion Baskets are wire mesh containers welded with high quality steel mesh. They can be filled on site with hard durable stone materials to form mass gravity retaining structures. Owing to their inflexibility, welded gabions can not adapt to differential settlement or be used in water courses. In comparison with woven wire gabions, welded gabions offer a higher strength. In order to meet different project requirements, various wire diameters and unit sizes are available for welded gabion boxes




Major Applications of Welded Gabion Baskets:


1. Retaining wall structures
2. Prevention of current scour and erosion control
3. Bridge protection
4. Hydraulic structures, dams and culverts
5. Embankment protection
6. Rockfall prevention and soil erosion protection



Mesh Tensile strength: 380N/mm2 - 550N/mm2

Diameter: 3.0mm-6.0mm

Finishing: heavy duty galvanized or galfan galvanized Coating weight: 245g-350g Lacer and spacer: standard.Packing: Flat packed on pallet.



High Tensile Galvanized Welded Gabion Basket Welded Gabion Wall


Gabion baskets Advantages:


Easy to install

High Zinc Coating

High Security

Can be made into any size for decotation
