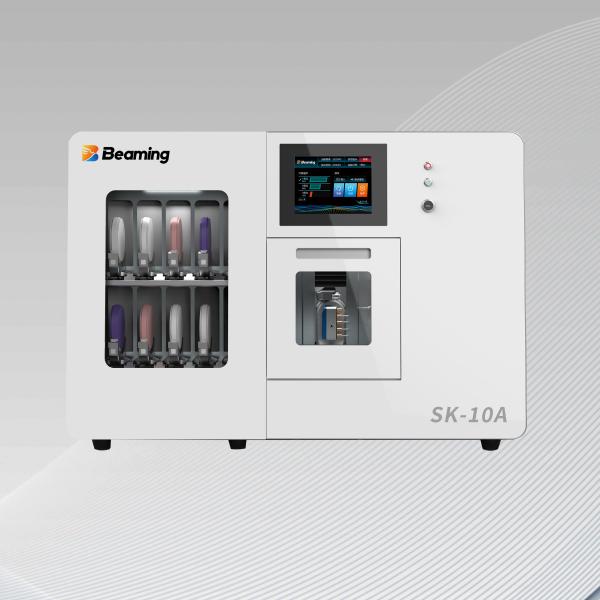

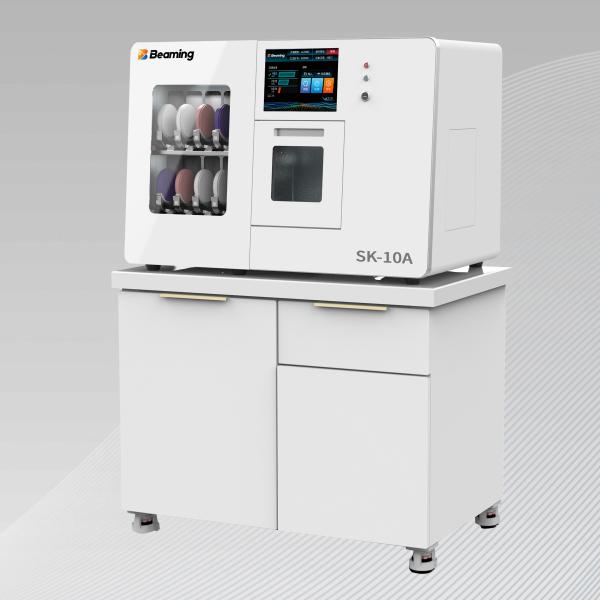

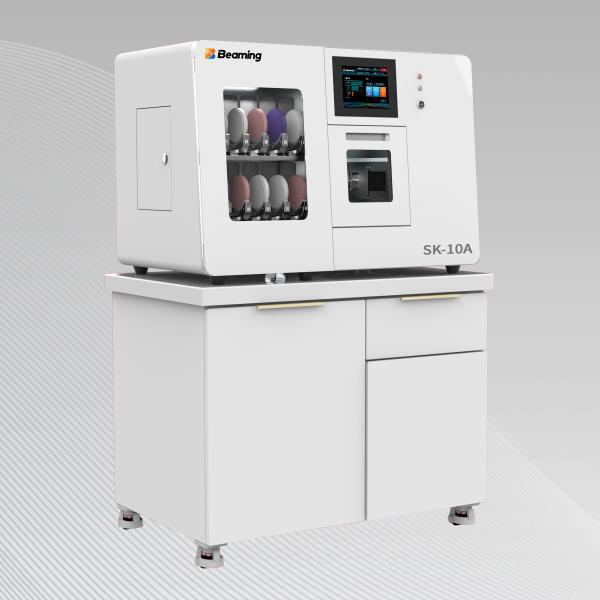

SK-10A Automation Dental Lab Machines Clinical Dental Technician Equipment Dental CNC milling machine
SK-10A Automation Dental Lab Machines Clinical Dental Technician Equipment Dental CNC milling machine
SK-10A Automation Dental Lab Machines Clinical Dental Technician Equipment Dental CNC milling machine
SK-10A Automation Dental Lab Machines Clinical Dental Technician Equipment Dental CNC milling machine
SK-10A Automation Dental Lab Machines Clinical Dental Technician Equipment Dental CNC milling machine
SK-10A Automation Dental Lab Machines Clinical Dental Technician Equipment Dental CNC milling machine
SK-10A Automation Dental Lab Machines Clinical Dental Technician Equipment Dental CNC milling machine
SK-10A Automation Dental Lab Machines Clinical Dental Technician Equipment Dental CNC milling machine
Specifications
Place of Origin :
CHINA
Brand Name :
Beaming
Certification :
CE
Payment Terms :
T/T
MOQ :
1
Price :
9800 - 25000USD 1 pcs
Packaging Details :
Wooden crate
Delivery Time :
7-15 days
Supply Ability :
1 pcs 7-15 days
Model Number :
SK-10A
Weight :
170kg
Length/Width/Height :
605mm*970mm*680mm
Frequency :
50/60Hz
Air consumption :
50L/min
Milling Accuracy :
±0.01mm
Machinable Materials :
Zirconia,Wax,Resin,Composite Materials
Processing Method :
Dry
Store Burs :
5 Burs
Automatic material replacement :
10 disc materials
Spindle Speed :
0-60000rmp
Description

Innovative Automation and Clinical Precision The SK-10A Dental Milling Machine


1. Product Introduction
The SK-10A represents an advanced 5-axis dental milling platform integrating robotic material automation. Designed for zirconia, resin, and wax processing, it features a cyclic material handling system with 10-slot capacity. Industrial-grade servo drives and 60,000 RPM spindle capability enable ±0.01mm precision across extended unattended production cycles.



SK-10A Automation Dental Lab Machines Clinical Dental Technician Equipment Dental CNC milling machine


2. Intended Applications
This system supports comprehensive dental workflows:

Full crowns,inlays/onlays,veneer

Provisional Resin Restorations and wax patterns

High-Volume Production: 24-hour automated manufacturing


SK-10A Automation Dental Lab Machines Clinical Dental Technician Equipment Dental CNC milling machine



3. Operational Advantages
Automated Production Efficiency
Robotic material cycling enables continuous processing across 10 positions, reducing operational intervention during extended workflows.

Precision Machining Performance
Closed-loop servo control with precision ball screws maintains consistent ±0.01mm dimensional accuracy.

Enhanced Material Utilization
118° open-angle fixture with secondary clamping optimizes blank usage during complex restorations.

Continuous Operation Capability
Sustained 24-hour production supported by quick-change tool management and intelligent breakpoint recovery.

Remote System Oversight
Cloud-based monitoring facilitates technical support and maintenance planning.



SK-10A Automation Dental Lab Machines Clinical Dental Technician Equipment Dental CNC milling machine

4. Technical Characteristics

Core Specifications

Parameter Specification
Drive System 1,000W closed-loop servo
Positional Tolerance ±0.01mm
Spindle Operation 0-60,000 RPM
Tool Management 5-position quick-change




Material Handling

Feature Capability
Magazine Capacity 10-slot automated system
Material Compatibility Zirconia · Resins · Wax · Composites
Processing Method 5-axis dry milling


SK-10A Automation Dental Lab Machines Clinical Dental Technician Equipment Dental CNC milling machine


Mechanical Configuration

Component Specification
Axis Articulation A-axis: 360° continuous · B-axis: ±30° tilt
Fixture System 118° open-angle with secondary clamping
Tool Specification Φ4mm milling instruments
Production Mode Continuous 24-hour operation



SK-10A Automation Dental Lab Machines Clinical Dental Technician Equipment Dental CNC milling machine
