SK-5D Beaming 5D Dental Milling Machine dental milling units 60000RPM Dental CNC Milling Machine
SK-5D Beaming 5D Dental Milling Machine dental milling units 60000RPM Dental CNC Milling Machine
SK-5D Beaming 5D Dental Milling Machine dental milling units 60000RPM Dental CNC Milling Machine
SK-5D Beaming 5D Dental Milling Machine dental milling units 60000RPM Dental CNC Milling Machine
Specifications
Place of Origin :
CHINA
Brand Name :
Beaming
Certification :
CE
Payment Terms :
T/T
MOQ :
1
Price :
9800 - 25000USD 1 pcs
Packaging Details :
Wooden crate
Delivery Time :
7-15 days
Supply Ability :
1 pcs 7-15 days
Model Number :
SK-5D
Machinable materials :
Glass Ceramics,Pre-milled Abutment, HPP, Resin Disc
Machine size(L/W/H) :
705*520*1590MM
Rotation Axis Angle :
A:±360°, B:±30°
Total power :
3500W
Tool magazine capacity :
10 Burs
processing method :
Wet
Rated air pressure :
4.5-7.5 Bar
Frequency :
50Hz
Description

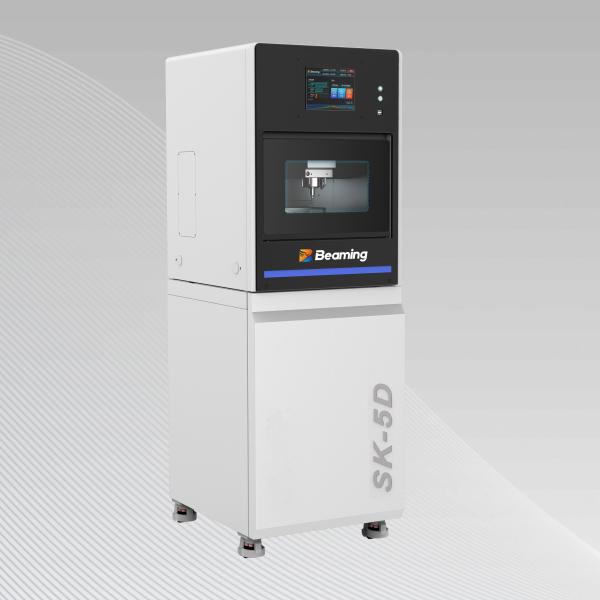

Dental Milling Machine SK-5D The Ultimate Solution for Dental Technology



1. Product Introduction


The Beaming Dental Milling Machine 5D is an industrial 5-axis wet milling system engineered for precision fabrication of dental restorations. Featuring a robust cast aluminum housing and 3.5kW full-servo drive, it processes pre-milled titanium abutments, glass ceramics, HPP, and resin discs at 60,000 RPM. With ±360° A-axis and ±30° B-axis rotation, integrated water-cooling, and 10-tool automatic changing, it delivers clinical-grade accuracy for laboratories and clinics.



SK-5D Beaming 5D Dental Milling Machine dental milling units 60000RPM Dental CNC Milling Machine

2. Workflow Innovations


Feature Impact
Full-Axis Freedom Undercut access for complex abutments
Direct-Drive Performance Sustained 60,000 RPM under continuous load
Space-Optimized Frame 110kg compact footprint



SK-5D Beaming 5D Dental Milling Machine dental milling units 60000RPM Dental CNC Milling Machine

3. Technical Specifications


Parameter Value
Total Power 3,500W
Milling Accuracy 0.02mm
Spindle Speed 30,000 RPM
Materials Glass Ceramics, Pre-milled Abutments
Drive System Full Servo Drive
Critical Tolerance 20μm fit accuracy
Compliance MOQ=1 unit



SK-5D Beaming 5D Dental Milling Machine dental milling units 60000RPM Dental CNC Milling Machine

4. Product Advantages


① Precision Engineering
The industrial cast aluminum frame maintains vibration-free stability at 60,000 RPM spindle speeds, while full 5-axis maneuverability enables complex undercut geometries in single setups.

② Operational Efficiency
A 10-tool automatic changer reduces manual tool handling during multi-stage milling procedures.

③ Material Processing Versatility
Direct milling capability supports pre-milled titanium abutments, glass ceramics, and high-performance polymers (HPP) without secondary adaptation.

④ Intelligent Control Systems
Cloud-based remote diagnostics provide real-time equipment monitoring, complemented by breakpoint recovery for 17-layer machining sequence preservation.
