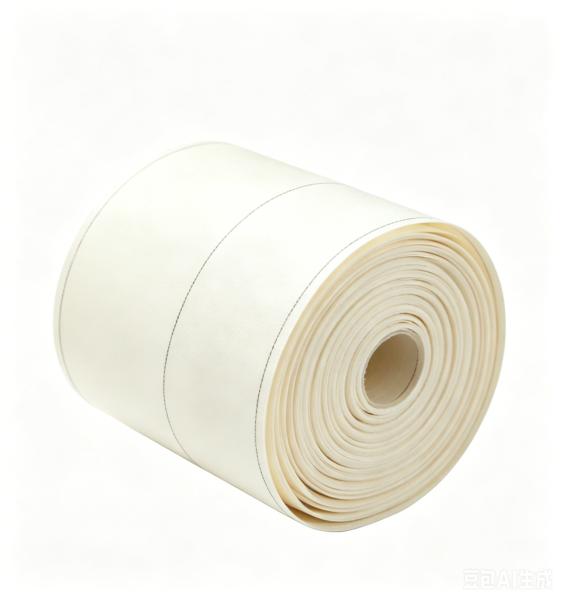

Nylon 66 Dipped Mesh Cloth
Nylon 66 Dipped Mesh Cloth
Nylon 66 Dipped Mesh Cloth
Nylon 66 Dipped Mesh Cloth
Specifications
MOQ :
Negotiable
Weave :
Plain Weave
Chemicalresistance :
Good
Place of Origin :
CHINA
Color :
White
Thickness :
0.3 mm
Material :
Nylon 66
Width :
100 cm
Type :
Press Cloth
Weight :
150 g/m²
Brand Name :
Blueoak
Productname :
Nylon 66 Press Cloth
Tensilestrength :
High
Delivery Time :
7-15 Working Days
Packaging Details :
Standard Packaging
Usage :
Ironing and pressing applications
Abrasionresistance :
Excellent
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Heatresistance :
Up to 200°C
Supply Ability :
500-500000KGS
Careinstructions :
Machine washable, do not bleach
Durability :
Long-lasting
Description

Product Name: Nylon 66 Dipped Mesh Cloth

Material: High strength Nylon 66 multi-strand twisted yarn

Process: Precision weaving + professional dipping treatment

Core Performance: High tensile strength, uniform fabric density, low heat shrinkage, high temperature resistance, aging resistance

Max Working Temperature: Long-term service at 185℃

Characteristic: Stable dimensional stability, high heat retention rate, low boiling water shrinkage

Application: Vulcanization molding of rubber hoses, rubber rollers and special-shaped rubber products

Available Width: 50mm, 70mm, 90mm, 110mm, 120mm

Our Nylon 66 Dipped Mesh Cloth is professionally woven from high-quality Nylon 66 multi-strand yarn with standardized weaving and dipping technology. The finished fabric presents uniform mesh density, flat and neat surface and extremely high overall tensile strength, ensuring stable and consistent performance in batch industrial production.

This mesh cloth features excellent high-temperature resistance and thermal stability. It can continuously work under 185℃ high-temperature environment without deformation, shrinkage or performance degradation. With a heat retention rate of over 90% after 180℃*4h high-temperature test and stable boiling water shrinkage rate, it maintains reliable dimensional accuracy during repeated high-temperature vulcanization cycles. In addition, the product possesses outstanding aging resistance and fatigue resistance, greatly extending service life in long-term industrial cyclic operation.

Specially developed for rubber vulcanization molding industry, this dipped mesh cloth is the ideal auxiliary material for rubber hoses, rubber rollers and various special-shaped rubber products. It effectively assists uniform molding, improves surface finish of finished rubber products, and avoids defects such as uneven thickness and structural deviation caused by thermal shrinkage. Multiple width specifications are available to meet different production equipment and product processing requirements, widely recognized and applied in the rubber manufacturing industry.

Basic Index: Thickness: 0.3mm, Elongation at Break: 19±3%, Heat Retention Rate (180℃*4h): ≥90%, Boiling Water Shrinkage: 5.0±0.5%

Width (mm) Warp Strength (N/250mm) Weft Strength (N/250mm) Warp Density (pieces/cm) Weft Density (pieces/cm)
50 2976±10 / 3550±10 / 3972±10 890±5 / 1782±5 52 / 50 16 / 15
70 4165±10 / 4995±10 / 5540±10 890±5 / 1782±5 52 / 50 16 / 15
90 5355±10 / 6426±10 / 7122±10 890±5 / 1782±5 52 / 50 16 / 15
110 6547±10 / 7855±10 / 8755±10 890±5 / 1782±5 52 / 50 16 / 15
120 7105±10 890±5 52 16
