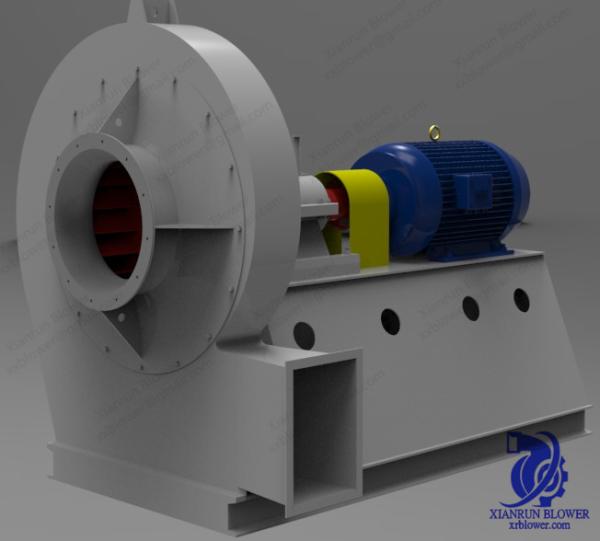

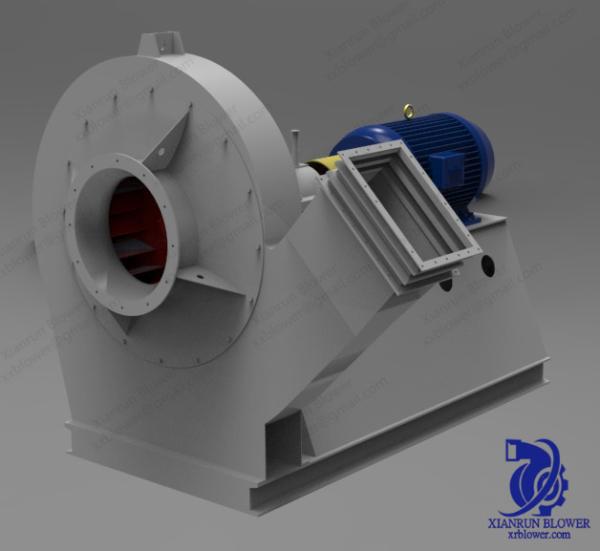

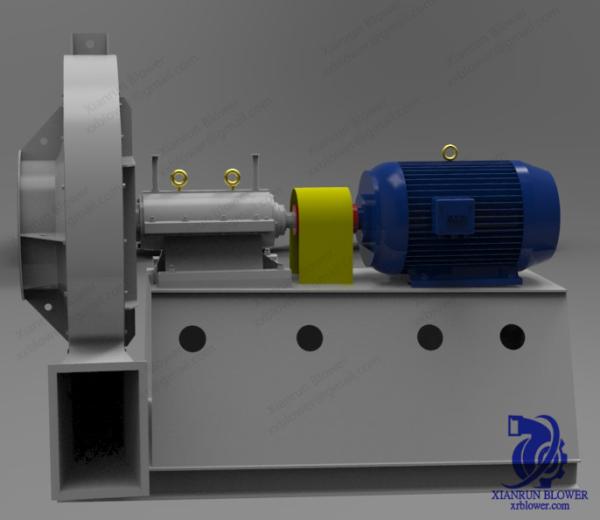

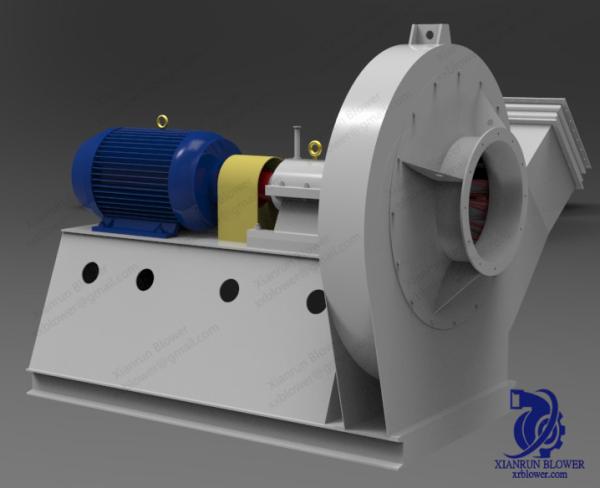

High capacity large fan forward curved exhaust fan fan blade high efficiency blower rotating part

Classification of high capacity large fan:

1. Classified according to the flow direction of the medium inside the fan
Divided into centrifugal, axial and mixed flow fan

2. Classification by high and low production pressure (calculated in absolute pressure)
Ventilator - Exhaust pressure is lower than 112700Pa.
Blower - Exhaust pressure between 112700PA-343000Pa.
Compressor - Exhaust pressure above 343000Pa

3. The high and low pressure of the ventilator is classified as follows (in the standard state)

Low pressure centrifugal fan: full pressure P≤1000Pa.
Medium pressure centrifugal fan: full pressure P=1000-8000Pa.
High pressure centrifugal fan: full pressure P=8000-30000Pa.
Low pressure axial flow fan: full pressure P≤500Pa.
High pressure axial flow fan: full pressure P=500-3000Pa

4. Classification according to leaf exit Angle

It can be divided into backbending (backward) type, radial type and forward bending (forward) type fans, as shown in Figure 5.
The outlet Angle β2 of the backbending fan blade is less than 90°.
The outlet Angle of radial fan blade β2 = 90°.
The outlet Angle of the forward bending fan blade β2 is > 90

Key Features

• Impeller diameter: 90~3500 mm
• Speed of mainshaft: 560~2900 rpm
• Pressure range: 3000~25425 Pa
• Flow range: 1297~83305 m3/h
• Air Temperature: 20~1000 Celsius degree

• Material: Cast Iron, Carbon Steel, Stainless Steel.

• Efficiency: 70%-90%

Applications

• Cement
• Industrial boiler
• Power generation
• Chemical processing
• Combustion-support
• Cooling systems
• Corrosive gas
• Dryer
• Dust collection
• Forced draft
• Fume exhaust
• General ventilation
• Incineration
• Induced draft

Please advise us the USAGE and following Parameter.Our engineering Dept will recommend the most suitable product for you.

Order details:

Production capacity: 300 sets per month

MOQ: 1 Set

Port: Qingdao, Tianjin, Shanghai port and other ports

Delivery time: 15 days after receiving down payment

Payment: T/T, L/C, D/A, D/P etc.

Price term: FOB, CIF, CFR, DDU, DDP and so on
