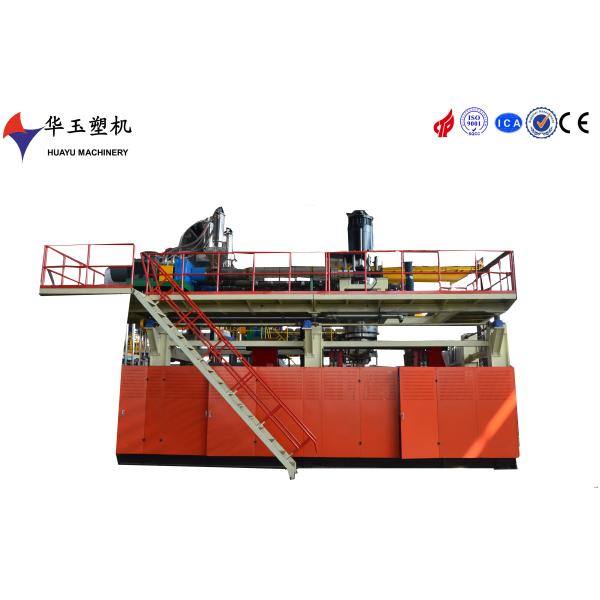

HUAYU1000L-2 Blow Moulding Machine for Large Plastic Containers
HUAYU1000L-2 Blow Moulding Machine for Large Plastic Containers
HUAYU1000L-2 Blow Moulding Machine for Large Plastic Containers
HUAYU1000L-2 Blow Moulding Machine for Large Plastic Containers
HUAYU1000L-2 Blow Moulding Machine for Large Plastic Containers
HUAYU1000L-2 Blow Moulding Machine for Large Plastic Containers
HUAYU1000L-2 Blow Moulding Machine for Large Plastic Containers
HUAYU1000L-2 Blow Moulding Machine for Large Plastic Containers
Specifications
Brand Name :
HUAYU
Model Number :
HYBM1000-2
Certification :
ISO9001, CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
360000 USD
Payment Terms :
T/T,L/C
Supply Ability :
1SET 120DAYS
Delivery Time :
4 MONTHS
Packaging Details :
be disassembled into many parts for container transportation
Output :
600KG/H
Total Power :
260kw
Plc :
SIEMENS
Automation Level :
Fully Automatic
Key Selling Points :
Long Service Life
Mold Type :
Single Station
Max. Product Diameter :
1200 mm
Air Consumption :
3m3/min
Extruder Type :
Single Screw
Condition :
New
Max. Product Height :
1400 mm
Automatic :
Yes
Servo Motor :
57kw
Feeder Type :
Vacuum Feeder
Die Head Heating :
90KW
Description

The HUAYU1000L-2 Blow Moulding Machine provides a high-performance solution for manufacturing large plastic containers. It features advanced automation and energy-efficient technology, ensuring high precision and consistent product quality, with a robust construction guaranteeing long-term reliability.

equipment parts


main parameter

brand

clamping system

clamping structure

two pull rods, center directly pushing


huayu

clamping force

1800KN

platen size

1700*1800*80mm

(W*H*T)

max. mould size

1400*1600mm

(W*H)

distance between platens

1100-2500mm

pull rod size

φ194mm

clamping cylinder

1400mm×2,300mm×1

(φ*H)

linear guide

65mm


hiwin

linear guide length

1600mm× 6 pieces

stroke control

displacement sensor

omron

explanation

smooth running, no noise; the clamping force is big


blowing unit

sealing width

according to products

huayu

stretching stroke

according to products

blow pin up/down stroke

300mm

air seat stroke

400mm

maximum air pressure

0.8Mpa

air consumption

1.5m3/min

explanation

with pre-blowing function, air blowing pin independent design which relize convenient replacement and multiply usage
