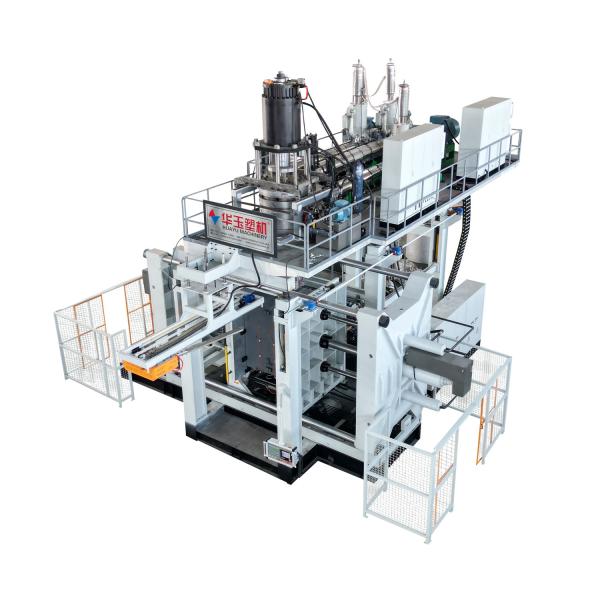

5000L 3 Layers Water Tank Blow Moulding Machine With Hydraulic Servo Driver System
5000L 3 Layers Water Tank Blow Moulding Machine With Hydraulic Servo Driver System
Specifications
Brand Name :
Huayu
Model Number :
5003
Certification :
CE
Place of Origin :
Weifang
MOQ :
1 set
Price :
420,000
Payment Terms :
L/C,T/T
Supply Ability :
4 sets per month
Delivery Time :
4 months
Packaging Details :
The machine will be disassembled into many parts for container transportation.
Plc Brand :
Siemens
Power Supply :
380V/50Hz
Layer :
3 Layers
Blow Moulding Type :
Extrusion Blow Moulding
Servo Motor :
11kw
Platen Distance :
1600---4000mm
Parison :
MOOG 200point
Air Consumption :
3m3/min
Min. Product Size :
1800*2500mm(W*H)
Range :
1000L---5000L, 3 layers
Plc :
Siemens
Average Power Consumption :
420kw
Air Seat Stroke :
400mm
Warranty :
1 Year
Automation Level :
Fully Automatic
Description

Huayu 5000L Three Layers Blow Moulding Machine With Good Quality


Weifang Huayu Plastic Machinery Co.,Ltd was founded in 2002. We have many patens and certifications.We will continue to devote

ourselves to research and development in the field of blow moulding machine, and strive to build an international brand in the blow

moulding industry!


5000L 3 layers blow moulding machine adopts to vaccum loaded. Automated vacuum feeding operation improves production

efficiency , is fast enough, and saves a lot of manpower and material resources. Sealed transportation to prevent pollution. Strong

adaptability ,suitable for various materials and conveying distances. High safety, reduced material loss, easy maintenance and

upkeep. Improved the quality of the working environmrnt, energy conservation and environmrntal protection.


Clamping System
platen size 2400*2500*70mm(W*H*T) smooth running, no noise; the clamping force is big
clamping cylinder 350+200*2
clamping cylinder stroke 2200mm
clamping force 3000KN
distance between platens 1600-4000mm
max. mould size 1800*2500mm(W*H)
blowing and cooling system
stretching stroke according to products
blow pin up/down stroke 600mm
air seat stroke 400mm
maximum air pressure 0.8Mpa
air consumption 3m3/min
Cooling method Circulating water
Water pressure 0.3MPa
Cooling water consumption 3m3/h


5000L 3 Layers Water Tank Blow Moulding Machine With Hydraulic Servo Driver System
