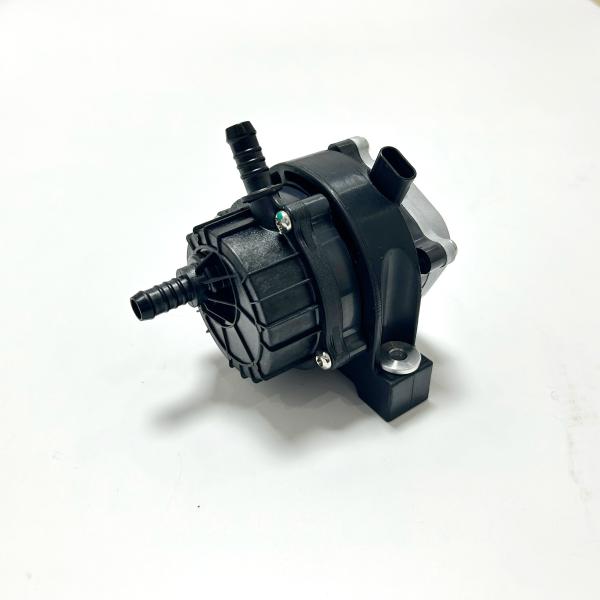

24VDC Electronic Coolant Pump specialized for High-power EV Charging Station Cooling

Model No.:OWP-BL60H

Power Input:24VDC(16-32VDC)

Rated Flow rate :2L/min @ ≥30M

Max Flow:3L/min

Max Lift Head:60M

Rated power:60W

---------------------------------------------------------------------------

Medium: glycol(50-60%)+water, dielectric oil,Electronic fluorinated solution

Medium temperature: Working long hours guaranteed -40℃ to +85℃ (-40°F to + 185°F)

IP Grade:IP67

Noise control:≤45dB

Service life:＞20000hours

Weight: 650g

Outlet diameter: 10mm

Speed regulation:Yes

Fault Feedback signal:Yes

Pump Applications

EV motor cooling

EV motor controller cooling

Turbocharger intercooler pump

EV battery thermal management

High-Power EV charging station cooling

Industrial cooling system

Immersion cooling

Communication base station cooling

Supercomputer cooling

Battery energy storage cooling pump

Fuel cell cooling pump

water pump large-scale GPU cooling

Features

◆With constant flow controlling

◆Reverse polarity protection

◆Dry running protection

◆Over Voltage, over current protection

◆High efficiency brushless DC motor, low power consumption, high efficiency, more than 20000hours service life.

◆With wide range operating temperature

◆Speed controlling

◆Overload, over temperature protection

◆Single-stage Centrifugal pump

◆Magnetic force transmission (shield pump structure)

Driving device (Including motor)

◆Driving electromagnet: nylon plastic capsulated magnet

◆Screws and nuts: SUS 304 stainless steel

Driving Motor : brushless motor

◆Waterproof based on IP67 rating (en60529)

◆Connector model: :Hirschmann805-121-522

◆Pump housing: PPS

◆Bracket: Rubber

◆Bracket hoop: Rubber

◆Nozzle size:10mm

◆Motor winding frame :PPA GF

Our clients come from 36 countires with high reputation in their fields.

Performance

■ System pressure

-99-600Kpa ( 100℃ (212°F).

The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature.

■Temperature parameter

Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)

Working ambient temperature: -40℃ to +85℃ (-40°F to +185°F) Humidity ≤90%

Storage temperature: -40℃ to +70℃ (-40°F to +158°F) (up to 100 ℃, but it will shorten the service life)

Pump overall size
