Lightweight DC High Torque Brushless Motor For Car Cushion Massage Pump
Lightweight DC High Torque Brushless Motor For Car Cushion Massage Pump
Lightweight DC High Torque Brushless Motor For Car Cushion Massage Pump
Lightweight DC High Torque Brushless Motor For Car Cushion Massage Pump
Lightweight DC High Torque Brushless Motor For Car Cushion Massage Pump
Lightweight DC High Torque Brushless Motor For Car Cushion Massage Pump
Lightweight DC High Torque Brushless Motor For Car Cushion Massage Pump
Lightweight DC High Torque Brushless Motor For Car Cushion Massage Pump
Lightweight DC High Torque Brushless Motor For Car Cushion Massage Pump
Lightweight DC High Torque Brushless Motor For Car Cushion Massage Pump
Specifications
Place of Origin :
China
Brand Name :
OWO
MOQ :
5
Price :
Negotiable
Packaging Details :
cartons+packing foams
Delivery Time :
4~6 weeks
Payment Terms :
T/T,L/C
Model Number :
OWM28RBL Series
Certification :
CE, Rohs, UL
Type :
brushless dc motor
Model :
OWM28BL
Winding type :
Star
Hall effect angle :
120 Degree electrical angle
Number of poles :
4
Number of phase :
3
Rated voltage :
15~24VDC
Rated speed :
3700~10000rpm
Rated torque :
8.4~60mN.m
Description

28mm Brushless DC Motor

Prodcuts Description:
Item No:OWM28BL
The 28mm brushless motor features high power density and smooth speed control.It is suitable for high-speed application.For example,it's used car cushion massage pump in auto industry.

OWM28BL SERIES Lightweight DC High Torque Brushless Motor For Car Cushion Massage Pump

INDICATIONS OF THE MODELS

OWM 28 BL 26
OWM: OWO Motor
28: Motor frame size: Metric (mm)
BL: Round Brushless motor

26: Body length

◆GENERAL SPECIFICATIONS

Winding typeStar
Hall effect angle120 degree electrical angle
Shaft run out0.025mm
Radial play0.02mm@450g
End play0.08mm@450g
Max. radial force15N @ 10mm from the flange
Max. axial force10N
Insulation classClass B
Dielectric strength500VDC for one minute
Insulation resistance100MΩMin., 500VDC


◆ELECTRIC CONNECTION

Lead No.Lead colorLead gaugeFunctionDescription
1BlueUL1007 26AWGVccSupply voltage for hall sensors
2RedHall A　
3YellowHall B　
4BrownHall C　
5GreenGNDGround for hall sensors
6RedUL1007 26AWGPhase U　
7BrownPhase V　
8BlackPhase W　


◆ELECTRICAL SPECIFICATIONS

ModelOWM28BL26OWM28BL38OWM28BL77
Number of poles444
Number of phase333
Rated voltage VDC152424
Rated speed RPM8000100003700
Continuous stall torque mN.m8.41760
Rated torque mN.m714.1250
Rated power W614.7816
Peak torque mN.m2142.4150
Peak current A2.52.83
Line to line resistance ohms84.634.67
Line to line inductance mH233.5
Torque constant mNm/A13.71650
Rotor inertia g.cm21.232.125.98
Body length mm263877
Mass Kg0.060.0820.28

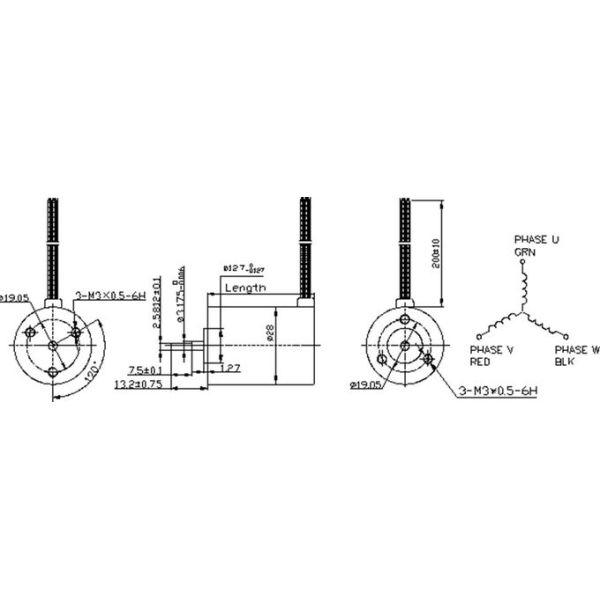

◆DIMENSIONS:
Lightweight DC High Torque Brushless Motor For Car Cushion Massage Pump
Application field:
Lightweight DC High Torque Brushless Motor For Car Cushion Massage Pump

Certificate:
Lightweight DC High Torque Brushless Motor For Car Cushion Massage Pump
Related Names:
Smooth Speed Governing Motor without Brush | Brushless Motor Machine for High Speed Function | Electric Device without Brush for Car Cushion Massage Pump
